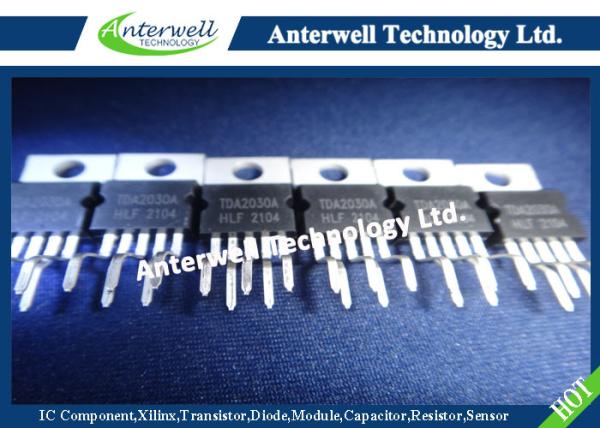

TDA2030A amplifier ic chip Integrated Circuit Chip 18W HI-FI AUDIO AMPLIFIER AND 35W DRIVER
TDA2030A amplifier ic chip Integrated Circuit Chip 18W HI-FI AUDIO AMPLIFIER AND 35W DRIVER
Specifications
Brand Name :
Anterwell
Model Number :
TDA2030A
Certification :
new & original
Place of Origin :
original factory
MOQ :
10 pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8300pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Supply Voltage :
±22 V
Input Voltage :
±22 V
Differential Input Voltage :
±15 V
Peak Output Current(internally limited) :
3.5 A
Junction Temperature :
-40 ~ +150 °C
Storage Temperature :
-40 ~ +150 °C
Description

TDA2030A LINEAR INTEGRATED CIRCUIT

18W HI-FI AUDIO AMPLIFIER AND 35W DRIVER

DESCRIPTION

The UTC TDA2030A is a monolithic IC intended for use as low frequency class AB amplifier.

With Vs=max=44V it is particularly suited for more reliable applications without regulated supply and for 35W driver circuits using low-cost complementary pairs.

The UTC TDA2030A provides high output current and has very low harmonic and cross-over distortion.

Further the device incorporates a short circuit protection system comprising and arrangement for automatically limiting the dissipated power so as to keep the working point of the output transistors within their safe operating area. A conventional thermal shut-down system is also included.

ORDERING INFORMATION

Ordering Number Package Packing
Normal Lead Free Plating
TDA2030A-TA5-T TDA2030AL-TA5-T TO-220-5 Tube
TDA2030A-TB5-T TDA2030AL-TB5-T TO-220B Tube

TDA2030A amplifier ic chip Integrated Circuit Chip 18W HI-FI AUDIO AMPLIFIER AND 35W DRIVER

ABSOLUTE MAXIMUM RATINGS (Ta=25°C)

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage Vs ±22 V
Input Voltage VIN Vs V
Differential Input Voltage VI(DIFF) ±15 V
Peak Output Current(internally limited) IOUT 3.5 A
Total Power Dissipation at Tc=90°C PD 20 W
Junction Temperature TJ -40 ~ +150 °C
Storage Temperature TSTG -40 ~ +150 °C

Note:

Absolute maximum ratings are those values beyond which the device could be permanently damaged.

Absolute maximum ratings are stress ratings only and functional device operation is not implied.

TDA2030A amplifier ic chip Integrated Circuit Chip 18W HI-FI AUDIO AMPLIFIER AND 35W DRIVER

*Pb-free plating product number: TDA2030AL

APPLICATION CIRCUIT

TDA2030A amplifier ic chip Integrated Circuit Chip 18W HI-FI AUDIO AMPLIFIER AND 35W DRIVER

TEST CIRCUIT

TDA2030A amplifier ic chip Integrated Circuit Chip 18W HI-FI AUDIO AMPLIFIER AND 35W DRIVER

SINGLE SUPPLY AMPLIFIER

TDA2030A amplifier ic chip Integrated Circuit Chip 18W HI-FI AUDIO AMPLIFIER AND 35W DRIVER
