MMSZ5230BT1G Silicon Planar Zener Diodes Rectifier Diode Zener Voltage Regulators 123 Surface Mount
MMSZ5230BT1G Silicon Planar Zener Diodes Rectifier Diode Zener Voltage Regulators 123 Surface Mount
Specifications
Brand Name :
Anterwell
Model Number :
MMSZ5230BT1G
Certification :
new & original
Place of Origin :
original factory
MOQ :
20pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
9300pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Total Power Dissipation on FR−5 Board, @ TL = 75°C :
500 mW
Total Power Dissipation on FR−5 Board, Derated above 75°C :
6.7 mW/°C
Thermal Resistance, Junction−to−Ambient :
340 °C/W
Thermal Resistance, Junction−to−Lead :
150 °C/W
Junction and Storage Temperature Range :
−55 to +150 °C
Package :
SOD−123 (Pb−Free)
Description

MMSZ5230BT1G Silicon Planar Zener Diodes Rectifier Diode Zener Voltage Regulators 123 Surface Mount

Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD−123 package. These devices provide a convenient alternative to the leadless 34−package style.

Features

• 500 mW Rating on FR−4 or FR−5 Board

• Wide Zener Reverse Voltage Range − 2.4 V to 110 V

• Package Designed for Optimal Automated Board Assembly

• Small Package Size for High Density Applications

• General Purpose, Medium Current

• ESD Rating of Class 3 (>16 kV) per Human Body Model

• Pb−Free Packages are Available

Mechanical Characteristics

CASE: Void-free, transfer-molded, thermosetting plastic case

FINISH: Corrosion resistant finish, easily solderable

MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 Seconds

POLARITY: Cathode indicated by polarity band

FLAMMABILITY RATING: UL 94 V−0

MAXIMUM RATINGS

Rating Symbol Max Unit

Total Power Dissipation on FR−5 Board,

(Note 1) @ TL = 75°C

Derated above 75°C

 PD

500

6.7

mW

mW/°C

Thermal Resistance, (Note 2)

Junction−to−Ambient

 RθJA 340 °C/W

Thermal Resistance, (Note 2)

Junction−to−Lead

 RθJL 150 °C/W
Junction and Storage Temperature Range TJ, Tstg −55 to +150 °C

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.

1. FR−5 = 3.5 X 1.5 inches, using the minimum recommended footprint.

2. Thermal Resistance measurement obtained via infrared Scan Method.

MMSZ5230BT1G Silicon Planar Zener Diodes Rectifier Diode Zener Voltage Regulators 123 Surface Mount

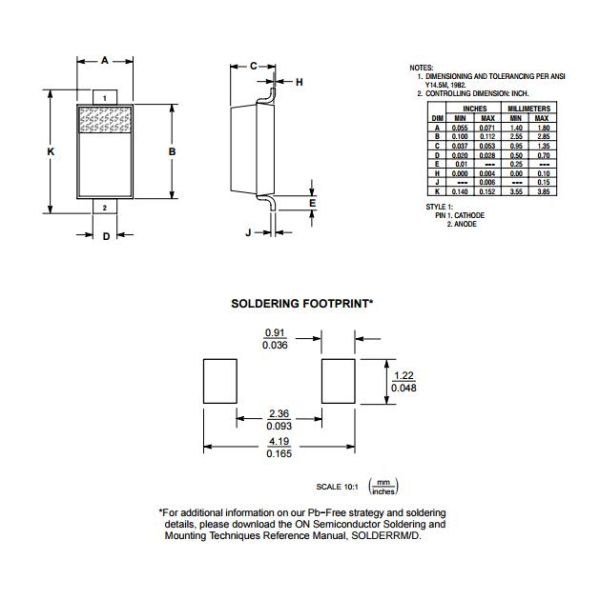

PACKAGE DIMENSIONS

SOD−123

CASE 425−04

ISSUE C

MMSZ5230BT1G Silicon Planar Zener Diodes Rectifier Diode Zener Voltage Regulators 123 Surface Mount

Product tags

zener diode diagram

,

zener diode list

,

surface mount zener diode
