MT9196AP electronic ic chip Integrated Circuit Chip ISO2-CMOS Integrated Digital Phone Circuit (IDPC)
MT9196AP electronic ic chip Integrated Circuit Chip ISO2-CMOS Integrated Digital Phone Circuit (IDPC)
Specifications
Brand Name :
Anterwell
Model Number :
MT9196AP
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8600pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Supply Voltage :
- 0.3 to 7 V
Voltage on any I/O pin :
VSS - 0.3 to VDD + 0.3 V
Current on any I/O pin (transducers excluded) :
± 20 mA
Storage Temperature :
- 65 to +150 °C
Power Dissipation (package) Plastic :
750 mW
Output Capacitance :
15 pF
Description

ISO2-CMOS MT9196

Integrated Digital Phone Circuit (IDPC)

Features

• Programmable µ-Law/A-Law CODEC and Filters

• Programmable CCITT (G.711)/sign-magnitude coding

• Programmable transmit, receive and side-tone gains

• Digital DTMF and single tone generation

• Fully differential interface to handset transducers

• Auxiliary analog interface

• Interface to ST-BUS/SSI (compatible with GCI)

• Serial microport control

• Single 5 volt supply, low power operation

• Anti-howl circuit for group listening speakerphone applications

Applications

• Digital telephone sets

• Wireless telephones

• Local area communications stations

Ordering Information

MT9196AE 28 Pin Plastic DIP

MT9196AP 28 Pin Plastic LCC

MT9196AS 28 Pin SOIC

-40°C to +85°C

Description

The MT9196 Integrated Digital Phone Circuit (IDPC) is designed for use in digital phone products. The device incorporates a built-in Filter/Codec, digital gain pads, DTMF generator and tone ringer. Complete telephony interfaces are provided for connecting to handset and speakerphone transducers. Internal register access is provided through a serial microport compatible with various industry standard micro-controllers.

The device is fabricated in Mitel's ISO2-CMOS technology ensuring low power consumption and high reliability.

Absolute Maximum Ratings

Parameter Symbol Min Max Units
Supply Voltage VDD - VSS - 0.3 7 V
Voltage on any I/O pin VI /VO VSS - 0.3 VDD + 0.3 V
Current on any I/O pin (transducers excluded) II /IO ± 20 mA
Storage Temperature TS - 65 + 150 °C
Power Dissipation (package) Plastic PD 750 mW

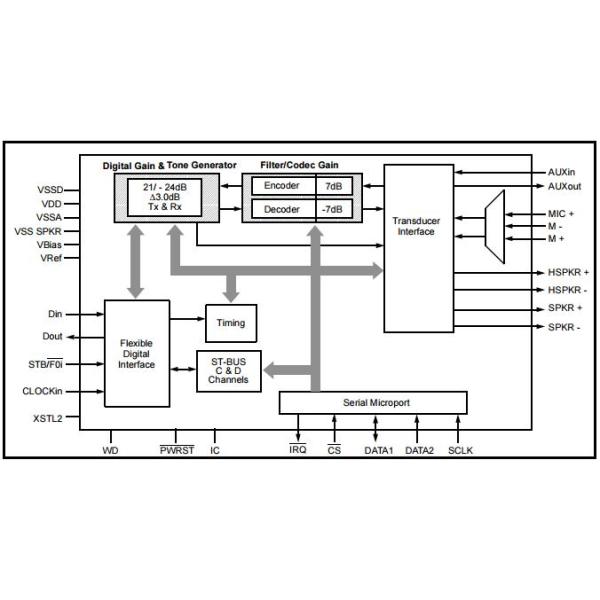

Functional Block Diagram

MT9196AP electronic ic chip Integrated Circuit Chip ISO2-CMOS Integrated Digital Phone Circuit (IDPC)

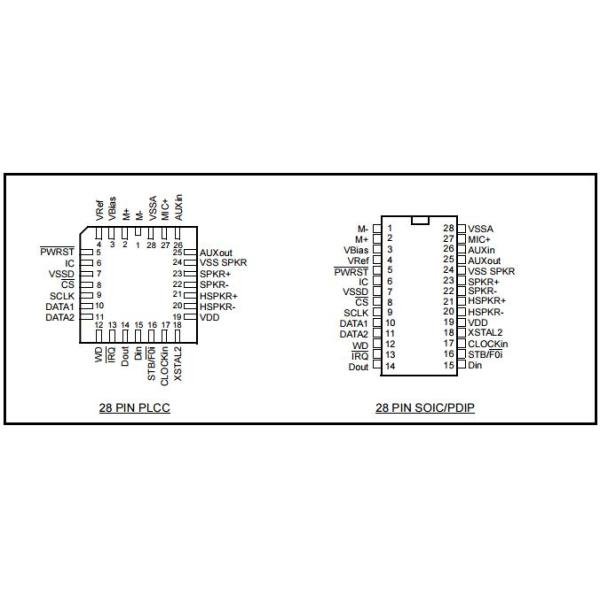

Pin Connections
