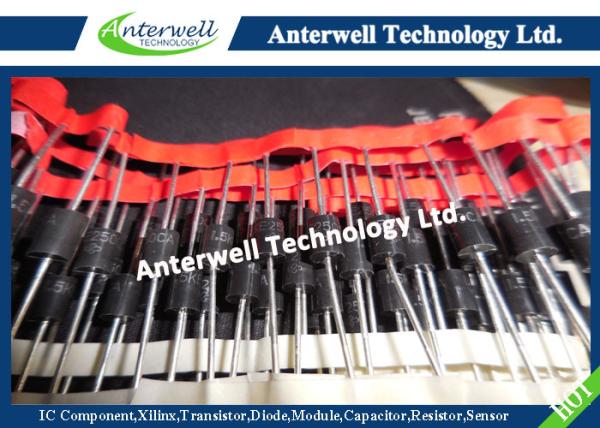

High Voltage Rectifier Diode Module 1500w Suppressor 1.5KE250CA
High Voltage Rectifier Diode Module 1500w Suppressor 1.5KE250CA
Specifications
Brand Name :
Diodes
Model Number :
1.5KE250CA
Certification :
Original Factory Pack
Place of Origin :
China
MOQ :
2500pcs
Price :
negotiation
Payment Terms :
T/T , Western Union,Paypal
Supply Ability :
150000PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Main Line: :
Ic,module,transistor,diodes,capacitor,resistor etc
Curren :
200A
Temperature :
-55 to +175 ºC
Disipation :
1500W
Factory Pack :
2500pcs/Reel
Package :
DO-201
Description

High Voltage Rectifier Diode Module 1500w Suppressor 1.5KE250CA

1.5KE250CA 1500W TRANSIENT VOLTAGE SUPPRESSOR IC


FEATURES

 1500W Peak Pulse Power Dissipation

Excellent Clamping Capability

Fast Response Time

Lead Free Finish, RoHS Compliant (Note 3)

Voltage Range 6.8V - 400V

Constructed with Glass Passivated Die

Uni- and Bidirectional Versions Available



High Voltage Rectifier Diode Module 1500w Suppressor 1.5KE250CA

Mechanical Data

Case: DO-201  Case

Material: Transfer Molded Epoxy. UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Finish - Bright Tin. Leads: Axial, Solderable per MIL-STD-202

Method 208  Ordering Information: See Last Page

Marking: Unidirectional - Type Number and Cathode Band

Marking: Bidirectional - Type Number Only

 Weight: 1.12 grams (approximate)

DO-201
DIM MIN MAX
A 25.40 -
B 8.50 9.53
C 0.96 1.06
D 4.80 0.21
All Dimensions in mm

Maximum Ratings

@ TA = 25°C unless otherwise specified

Charcteristic Symbol Value Unit
Peak Power Disipation at tp=1.0ms Ppk 1500 w
Steady State Power Dissipation at TL=75ºC Lead Lengths 9.5mm Pd 5.0 w
Peak Forward Surge Curren, 8.3 Single Half Sine Wave Superimposed on Rated Load Ifsm 200 A

Forward Voltage lF=50A 300µs Square Wave Pulse VBR<=100V

Unidirectional Only VBR>100V

 VF

3.5

5.0

 V
Operating and Storage Temperature Range Tj TsTG -55 to +175 ºC

Notes: 1. Suffix ‘C’ denotes bi-directional device.

2. For bi-directional devices having VR of 10 volts and under, the IR limit is doubled.

3. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see EU Directive Notes 5 and 7.

High Voltage Rectifier Diode Module 1500w Suppressor 1.5KE250CA
