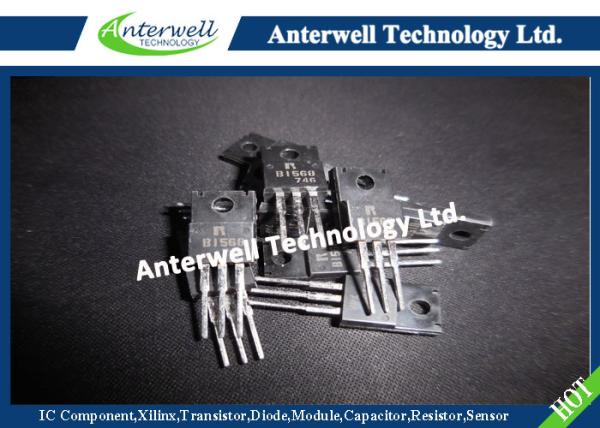

Power amplifler 3 Pin Transistor −80V −4A B1568 pair with 2SD2399
Power amplifler 3 Pin Transistor −80V −4A B1568 pair with 2SD2399
Specifications
Brand Name :
ROHM
Model Number :
B1568
Certification :
Original Factory Pack
Place of Origin :
Original
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
290PCS
Delivery Time :
1 Day
Packaging Details :
please contact me for details
Collector-base voltage :
−80 V
Collector-emitter voltage :
−80 V
Emitter-base voltage :
−7 V
Collector current :
−4 A(DC)
Collector dissipation :
30 W(Tc=25°C)
Description

Power amplifler 3 Pin Transistor −80V −4A B1568 pair with 2SD2399

Power amplifler 3 Pin Transistor −80V −4A B1568 pair with 2SD2399Features

1) Available in TO-220 FN package

2) Darling connection provides high dc current gain (hFE)

3) Damper diode is incorporated

4) Built in resistors between base and emitter

5) Two millimeters lower than TO-220 FP which allows higher density mounting

6) Complementary pair with 2SD2399

Applications

Power amplifler

Absolute maximum rating (Ta=25°C)

Paramete Symbol Limits Unit
Collector-base voltage VCBO -80 V
Collector-emitter voltage VCEO -80 V
Emitter-base voltage VEBO -7 v
Collector current

IC

ICP

-4

-6

A(DC)

A(Pulse)
Collector dissipation

PC

2

30

W(Ta=25°C)

W(Tc=25°C)
Junction temperature Tj 150 °C
Storage temperature Tstg −55 to +150 °C

Electrical characteristics

Power amplifler 3 Pin Transistor −80V −4A B1568 pair with 2SD2399
