BYV32EB-200 Dual rugged ultrafast Rectifier Diode 200 V repetitive peak reverse voltage
BYV32EB-200 Dual rugged ultrafast Rectifier Diode 200 V repetitive peak reverse voltage
Specifications
Brand Name :
Anterwell
Model Number :
BYV32EB-200
Certification :
new & original
Place of Origin :
original factory
MOQ :
20pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
7900pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
repetitive peak reverse voltage :
200 V
crest working reverse voltage :
200 V
reverse voltage :
200 V
repetitive peak forward current :
20 A
repetitive peak reverse current :
0.2 A
storage temperature :
-40 to 150 °C
Description

BYV32EB-200 Dual rugged ultrafast Rectifier Diode 200 V repetitive peak reverse voltage

General description

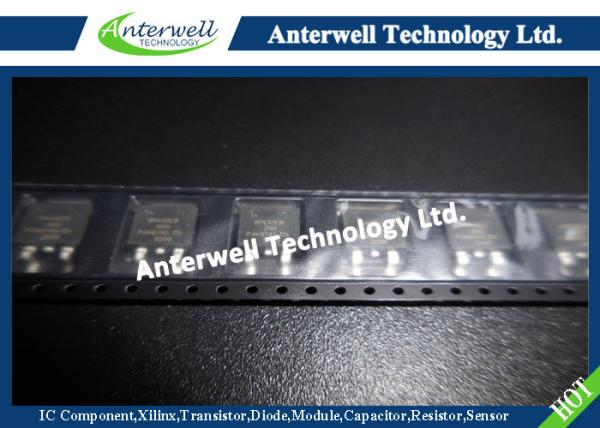

Ultrafast dual epitaxial rectifier diode in a SOT404 (D2PAK) surface-mountable plastic package.

Features and benefits

  • High reverse voltage surge capability „
  • High thermal cycling performance „
  • Low thermal resistance „
  • Soft recovery characteristic minimizes power consuming oscillations „
  • Surface-mountable package „
  • Very low on-state loss

Applications „

Output rectifiers in high-frequency switched-mode power supplies

Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134).

Symbol Parameter Conditions Min Max Unit
VRRM repetitive peak reverse voltage - 200 V
VRWM crest working reverse voltage - 200 V
VR reverse voltage DC - 200 V
IO(AV) average output current square-wave pulse; δ = 0.5; Tmb ≤ 115 °C; both diodes conducting; see Figure 1; see Figure 2 - 20 A
IFRM repetitive peak forward current δ = 0.5; tp = 25 µs; Tmb ≤ 115 °C; per diode - 20 A
IFSM non-repetitive peak forward current tp = 8.3 ms; sine-wave pulse; Tj(init) = 25 °C; per diode - 137 A
tp = 10 ms; sine-wave pulse; Tj(init) = 25 °C; per diode - 125 A
IRRM repetitive peak reverse current δ = 0.001; tp = 2 µs - 0.2 A
IRSM non-repetitive peak reverse current tp = 100 µs - 0.2 A
Tstg storage temperature -40 150 °C
Tj junction temperature - 150 °C
VESD electrostatic discharge voltage HBM; C = 250 pF; R = 1.5 kΩ; all pins - 8 kV
