GBJ1508 Rectifier Diode Single - Phase Glass Passivated Bridge Rectifier
GBJ1508 Rectifier Diode Single - Phase Glass Passivated Bridge Rectifier
Specifications
Brand Name :
Anterwell
Model Number :
GBJ1508
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
7500pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Peak Repetitive Reverse Voltage :
800 V
Working Peak Reverse Voltage :
800 V
DC Blocking Voltage :
800 V
RMS Reverse Voltage :
560 V
Typical Junction Capacitance per Element :
60 pF
Operating and Storage Temperature :
-65 to +150 °C
Description

GBJ1508 Rectifier Diode Single - Phase Glass Passivated Bridge Rectifier

Features

  • Glass Passivated Die Construction
  • High Case Dielectric Strength of 1500VRMS
  • Low Reverse Leakage Current
  • Surge Overload Rating to 240A Peak
  • Ideal for Printed Circuit Board Applications
  • Plastic Material - UL Flammability Classification 94V-0
  • UL Listed Under Recognized Component Index, File Number E94661

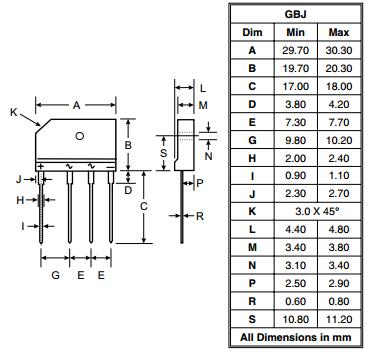

Mechanical Data

  • Case: Molded Plastic
  • Terminals: Plated Leads, Solderable per MIL-STD-202, Method 208
  • Polarity: Molded on Body
  • Mounting: Through Hole for #6 Screw
  • Mounting Torque: 5.0 in-lbs Maximum
  • Weight: 6.6 grams (approx)
  • Marking: Type Number

Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified

Single phase, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic Symbol Value Unit
Average Forward Rectified Output Current @ TC = 100°C IO 15 A
Non-Repetitive Peak Forward Surge Current, 8.3 ms single half-sine-wave superimposed on rated load (JEDEC method) IFSM 240 A
Forward Voltage (per element) @ IF = 7.5A DC VFM 1.05 V

Peak Reverse Current @ TC = 25°C

at Rated DC Blocking Voltage @ TC = 125°C

 IR

10

500

 µA
I2t Rating for Fusing (t < 8.3ms) (Note 1) I 2t 240 A2s
Typical Junction Capacitance per Element (Note 2) Cj 60 pF
Typical Thermal Resistance, Junction to Case (Note 3) RθJC 0.8 °C/W
Operating and Storage Temperature Range Tj, TSTG -65 to +150 °C

Notes:

1. Non-repetitive, for t > 1ms and < 8.3 ms.

2. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.

3. Thermal resistance from junction to case per element. Unit mounted on 300 x 300 x 1.6mm copper plate heat sink.

GBJ1508 Rectifier Diode Single - Phase Glass Passivated Bridge Rectifier
