Maximum repetitive peak reverse voltage :
100 V
Working peak reverse voltage :
100 V
Maximum DC blocking voltage :
100 V
Peak forward surge current :
150 A
Voltage rate of change (rated VR) :
10,000 V/µs
Operating junction and storage temperature :
–65 to +175 °C
Description

MBR10H100CT, MBRF10H100CT & MBRB10H100CT Series

Dual High-Voltage Schottky Rectifiers

Rev. Voltage 90 to 100V

Forward Current 10A

Features

• Plastic package has Underwriters Laboratory Flammability Classification 94V-0

• Dual rectifier construction, positive center tap

• Metal silicon junction, majority carrier conduction

• Low power loss, high efficiency

• Guardring for overvoltage protection

• For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications

Mechanical Data

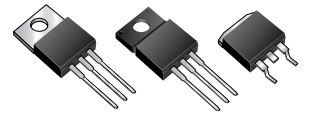

Case: JEDEC TO-220AB, ITO-220AB & TO-263AB molded plastic body

Terminals: Plated leads, solderable per MIL-STD-750, Method 2026

High temperature soldering guaranteed: 250°C/10 seconds, 0.25" (6.35mm) from case

Polarity: As marked

Mounting Position: Any

Mounting Torque: 10 in-lbs maximum

Weight: 0.08oz., 2.24g

MBRB10100CT diode rectifier circuit Dual High Voltage Schottky Rectifiers

Maximum Ratings (TC = 25°C unless otherwise noted)

Parameter Symbol MBR10H90CT MBR10H100CT Unit
Maximum repetitive peak reverse voltage VRRM 90 100 V
Working peak reverse voltage VRWM 90 100 V
Maximum DC blocking voltage VDC 90 100 V

Maximum average forward rectified current Total device

at TC = 105°C Per leg

 IF(AV)

10

5

 A

Peak forward surge current

8.3ms single half sine-wave superimposed

on rated load (JEDEC Method) per leg

 IFSM 150 A
Peak repetitive reverse current per leg at tp = 2µs, 1KHZ IRRM 0.5 A
Voltage rate of change (rated VR) dv/dt 10,000 V/µs
Operating junction and storage temperature range TJ, TSTG –65 to +175 °C

RMS Isolation voltage (MBRF type only) from terminals

to heatsink with t = 1 second, RH ≤ 30%

 VISOL

4500 (1)

3500 (2)

1500 (3)

 V

Notes:

(1) Clip mounting (on case), where lead does not overlap heatsink with 0.110” offset

(2) Clip mounting (on case), where leads do overlap heatsink

(3) Screw mounting with 4-40 screw, where washer diameter is ≤ 4.9 mm (0.19”)
