MBS6 RCG Rectifier Diode Single Phase Glass Passivated Bridge Rectifiers
MBS6 RCG Rectifier Diode Single Phase Glass Passivated Bridge Rectifiers
Specifications
Brand Name :
Anterwell
Model Number :
MBS6 RCG
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8500pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Maximum Recurrent Peak Reverse Voltage :
600 V
Maximum RMS Voltage :
420 V
Maximum DC Blocking Voltage :
600 V
Typical Junction Capacitance Per Leg :
13 pF
Typical Thermal Resistance Per Leg :
85 ℃/W
Operating Temperature :
-55 to +150 ℃
Description

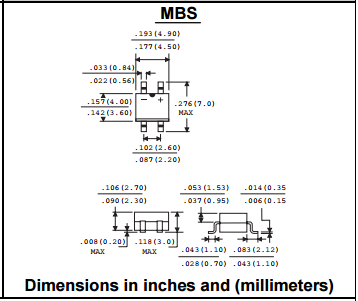

MBS2 THRU MBS10

Single Phase 0.8 AMPS. Glass Passivated Bridge Rectifiers

Voltage Range 200 to 1000 Volts

Current 0.8 Amperes

Features

• Ideal for printed circuit board

• Reliable low cost construction utilizing molded plastic technique

• High surge current capability

• High temperature soldering guaranteed: 260℃ / 10 seconds at 5 lbs., (2.3 kg ) tension

• Small size, simple installation

• Leads solderable per MIL-STD-202 Method 208 MBS

Maximum Ratings and Electrical Characteristics

Rating at 25℃ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Type Number Symbol MBS2 MBS4 MBS6 MBS8 MBS10 Units
Maximum Recurrent Peak Reverse Voltage VRRM 200 400 600 800 1000 V
Maximum RMS Voltage VRMS 140 280 420 560 700 V
Maximum DC Blocking Voltage VDC 200 400 600 800 1000 V

Maximum Average Forward Rectified Current

On glass-epoxy P.C.B.

On aluminum substrate

I(AV)

0.5

0.8

 A
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method ) IFSM 35 A
Maximum Instantaneous Forward Voltage @ 0.4A VF 1.0 V

Maximum DC Reverse Current @ TA=25℃

at Rated DC Blocking Voltage @ TA=125℃

 IR

5.0

100

 uA
Typical Junction Capacitance Per Leg (Note1) Cj 13 pF
Typical Thermal Resistance Per Leg RθJA 85 ℃/W
Operating Temperature Range TJ -55 to +150 ℃
Storage Temperature Range TSTG -55 to +150 ℃

Note: 1. Measured at 1 MHz and Applied Reverse Voltage of 4.0 Volts D.C.
