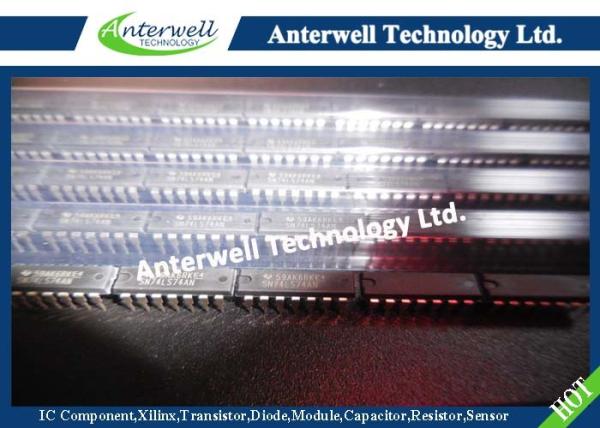

SN74LS74AN Electronic IC Chips DUAL D-TYPE POSITIVE-EDGE-TRIGGERED FLIP-FLOPS
SN74LS74AN Electronic IC Chips DUAL D-TYPE POSITIVE-EDGE-TRIGGERED FLIP-FLOPS
Specifications
Brand Name :
Anterwell
Model Number :
SN74LS74AN
Certification :
new & original
Place of Origin :
original factory
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8500pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Input HIGH Voltage :
2.0 V
Input LOW Voltage :
0.8 V
Input Clamp Diode Voltage :
–0.65 V
Output HIGH Voltage :
3.5 V
Output Short Circuit Current :
–20 to –100 mA
Power Supply Current :
8.0 mA
Description

SN74LS74A

DUAL D-TYPE POSITIVE-EDGE-TRIGGERED FLIP-FLOPS

LOW POWER SCHOTTKY

The SN74LS74A dual edge-triggered flip-flop utilizes Schottky TTL circuitry to produce high speed D-type flip-flops. Each flip-flop has individual clear and set inputs, and also complementary Q and Q outputs.

Information at input D is transferred to the Q output on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level of the clock pulse and is not directly related to the transition time of the positive-going pulse. When the clock input is at either the HIGH or the LOW level, the D input signal has no effect.

SN74LS74AN Electronic IC Chips DUAL D-TYPE POSITIVE-EDGE-TRIGGERED FLIP-FLOPS

GUARANTEED OPERATING RANGES

Symbol Parameter Min Typ Max Unit
VCC Supply Voltage 4.75 5.0 5.25 V
TA Operating Ambient Temperature Range 0 25 70 °C
IOH Output Current – High -0.4 mA
IOL Output Current – Low 8.0 mA

SN74LS74AN Electronic IC Chips DUAL D-TYPE POSITIVE-EDGE-TRIGGERED FLIP-FLOPS
