W29EE512P-70 Integrated Circuit Chip 64K X 8 CMOS FLASH MEMORY
W29EE512P-70 Integrated Circuit Chip 64K X 8 CMOS FLASH MEMORY
Specifications
Brand Name :
Anterwell
Model Number :
W29EE512P-70
Certification :
new & original
Place of Origin :
original factory
MOQ :
20pcs
Price :
Negotiate
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
8200pcs
Delivery Time :
1 day
Packaging Details :
Please contact me for details
Power Supply Current :
50 mA
Input Leakage Current :
10 μA
Output Leakage Current :
10 μA
Input Low Voltage :
0.8 V
Input High Voltage :
2.0 V
Output Low Voltage :
0.45 V
Output High Voltage :
2.4 V
Output High Voltage CMOS :
4.2 V
Description

W29EE512

64K × 8 CMOS FLASH MEMORY

GENERAL DESCRIPTION

The W29EE512 is a 512K bit, 5-volt only CMOS flash memory organized as 64K ´ 8 bits. The device can be programmed and erased in-system with a standard 5V power supply. A 12-volt VPP is not required. The unique cell architecture of the W29EE512 results in fast program/erase operations with extremely low current consumption (compared to other comparable 5-volt flash memory products). The device can also be programmed and erased using standard EPROM programmers.

FEATURES

· Single 5-volt program and erase operations

· Fast page-write operations

- 128 bytes per page

- Page program cycle: 10 mS (max.)

- Effective byte-program cycle time: 39 mS

- Optional software-protected data write

· Fast chip-erase operation: 50 mS

· Read access time: 70/90/120 nS

· Typical page program/erase cycles: 1K/10K

· Ten-year data retention

· Software and hardware data protection

· Low power consumption

- Active current: 50 mA (max.)

- Standby current: 100 mA (max.)

· Automatic program timing with internal VPP generation

· End of program detection

- Toggle bit

- Data polling

· Latched address and data

· TTL compatible I/O

· JEDEC standard byte-wide pinouts

· Available packages: 32-pin PLCC, TSOP and VSOP

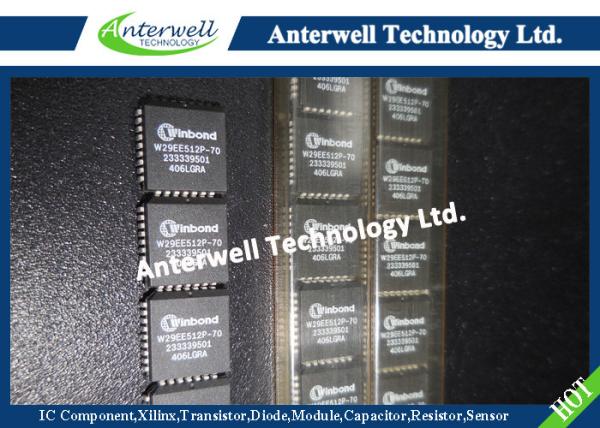

W29EE512P-70 Integrated Circuit Chip 64K X 8 CMOS FLASH MEMORY

Absolute Maximum Ratings

PARAMETER RATING UNIT
Power Supply Voltage to Vss Potential -0.5 to +7.0 V
Operating Temperature 0 to +70 °C
Storage Temperature -65 to +150 °C
D.C. Voltage on Any Pin to Ground Potential except A9 -0.5 to VCC +1.0 V
Transient Voltage (¡ Õ20 nS) on Any Pin to Ground Potential -1.0 to VCC +1.0 V
Voltage on A9 and #OE Pin to Ground Potential -0.5 to 12.5 V

Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.
