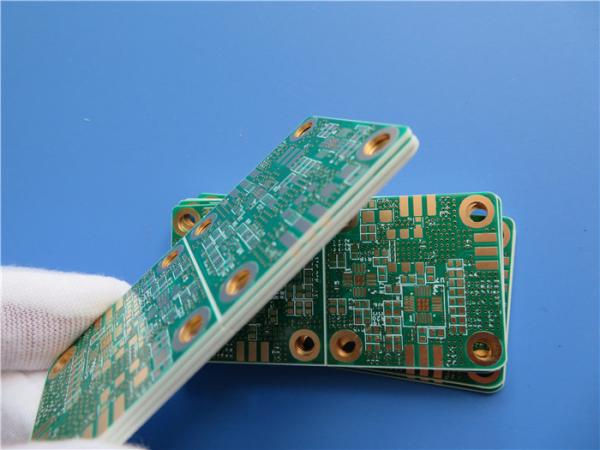

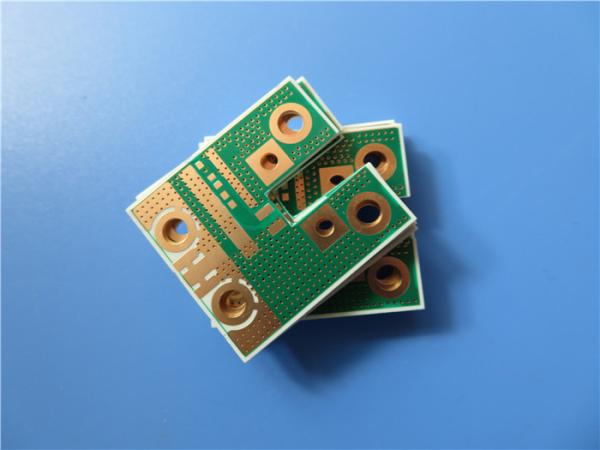

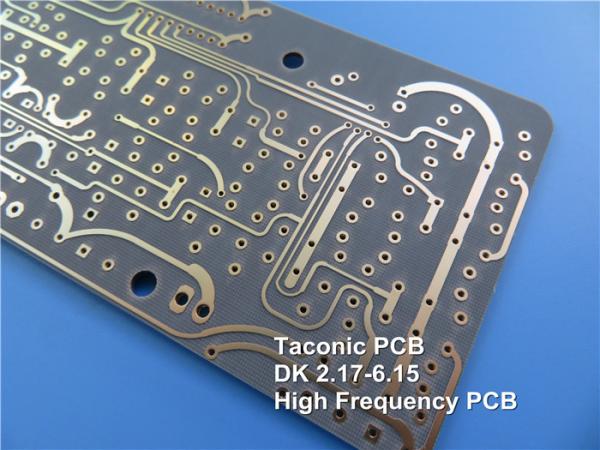

Taconic High Frequency PCB Made on TLY-5 7.5mil 0.191mm With DK2.2 for Automotive Radar
Taconic High Frequency PCB Made on TLY-5 7.5mil 0.191mm With DK2.2 for Automotive Radar
Taconic High Frequency PCB Made on TLY-5 7.5mil 0.191mm With DK2.2 for Automotive Radar
Taconic High Frequency PCB Made on TLY-5 7.5mil 0.191mm With DK2.2 for Automotive Radar
Taconic High Frequency PCB Made on TLY-5 7.5mil 0.191mm With DK2.2 for Automotive Radar
Taconic High Frequency PCB Made on TLY-5 7.5mil 0.191mm With DK2.2 for Automotive Radar
Taconic High Frequency PCB Made on TLY-5 7.5mil 0.191mm With DK2.2 for Automotive Radar
Taconic High Frequency PCB Made on TLY-5 7.5mil 0.191mm With DK2.2 for Automotive Radar
Specifications
Brand Name :
Bicheng Technologies Limited
Model Number :
BIC-0035-V4.66
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD20~30
Payment Terms :
T/T, Paypal
Supply Ability :
45000 pieces per month
Delivery Time :
4-5 working days
Packaging Details :
Vacuum
Glass Epoxy :
TLY-5
Final height of PCB :
0.3 mm ±0.08
Final foil external :
1 oz
Final foil internal :
1 oz
Surface Finish :
Immersion Silver
Solder Mask Color :
Green, PSR-2000GT600D, Taiyo Supplied.
Colour of Component Legend :
White, IJR-4000 MW300, Taiyo brand
TEST :
100% Electrical Test prior shipment
Description

Taconic High Frequency PCB Made on TLY-5 7.5mil 0.191mm With DK2.2 for Automotive Radar

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

Taconic TLY laminates are a type of low loss laminates. They are manufactured with very lightweight woven fiberglass and are more dimensionally stable than chopped fiber reinforced PTFE composites. The woven matrix yields a more mechanically stable laminate that is suitable for high volume manufacturing. The low dissipation factor enables successful deployment for automotive radar applications designed at 77 GHz as well as other antennas in millimeter wave frequencies.

The dielectric constant is as low as 2.17-2.20 +/-0.02, and dissipation factor is as low as 0.0009.

Taconic High Frequency PCB Made on TLY-5 7.5mil 0.191mm With DK2.2 for Automotive Radar

Benefits:

Dimensionally stable

Lowest DF

Low moisture absorption

High copper peel strength

Uniform & consistent DK

Laser ablatable

Applications:

Automotive radar

Satellite/cellular communications

Power amplifiers

LNBs, LNAs, LNCs

Aerospace

Ka, E and W band applications

PCB Specifications

PCB SIZE 76 x 51mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 18um(0.5 oz)+plate TOP layer
TLY-5 0.191mm
copper ------- 18um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 10 mil / 10 mil
Minimum / Maximum Holes: 0.4mm / 2.0mm
Number of Different Holes: 0
Number of Drill Holes: 0
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: TLY-5
Final foil external: 1oz
Final foil internal: N/A
Final height of PCB: 0.25 mm ±0.1
PLATING AND COATING
Surface Finish Immersion Silver
Solder Mask Apply To: NO
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA N/A
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

Taconic High Frequency PCB Made on TLY-5 7.5mil 0.191mm With DK2.2 for Automotive Radar

Data Sheet of Taconic TLY Material

TLY TYPICAL VALUES
Property Test Method Unit Value Unit Value
DK at 10 GHz IPC-650 2.5.5.5 2.2 2.2
Df at 10 GHz IPC-650 2.5.5.5 0.0009 0.0009
Moisture Absorption IPC-650 2.6.2.1 % 0.02 % 0.02
Dielectric Breakdown IPC-650 2.5.6 kV >45 kV >45
Dielectric Strength ASTM D 149 V/mil 2,693 V/mil 106,023
Volume Resistivity IPC-650 2.5.17.1(after elevated temp.) Mohms/cm 1010 Mohms/cm 1010
Volume Resistivity IPC-650 2.5.17.1(after humidity) Mohms/cm 1010 Mohms/cm 109
Surface Resistivity IPC-650 2.5.17.1(after elevated temp.) Mohms 108 Mohms 108
Surface Resistivity IPC-650 2.5.17.1(after humidity) Mohms 108 Mohms 108
Flex Strength(MD) IPC-650 2.4.4 psi 14,057 N/mm2 96.91
Flex Strength(CD) IPC-650 2.4.4 psi 12,955 N/mm2 89.32
Peel Stength(½ oz.ed copper) IPC-650 2.4.8 Ibs./inch 11 N/mm 1.96
Peel Stength(1 oz.CL1 copper) IPC-650 2.4.8 Ibs./inch 16 N/mm 2.86
Peel Stength(1 oz..CV1 copper) IPC-650 2.4.8 Ibs./inch 17 N/mm 3.04
Peel Stength IPC-650 2.4.8(after elevated temp.) Ibs./inch 13 N/mm 2.32
Young's Modulus(MD) ASTM D 3039/IPC-650 2.4.19 psi 1.4 x 106 N/mm2 9.65 x 103
Poisson's Ratio(MD) ASTM D 3039/IPC-650 2.4.19 0.21 0.21
Thermal Conductivity ASTM F 433 W/M*K 0.22 W/M*K 0.22
Dimensional Stability(MD,10mil) IPC-650 2.4.39(avg.after bake&thermal stress) mils/inch -0.038 -0.038
Dimensional Stability(CD,10mil) IPC-650 2.4.39(avg.after bake&thermal stress) mils/inch -0.031 -0.031
Density(Specific Gravity) ASTM D 792 g/cm3 2.19 g/cm3 2.19
CTE(X axis)(25-260℃) ASTM D 3386(TMA) ppm/℃ 26 ppm/℃ 26
CTE(Y axis)(25-260℃) ASTM D 3386(TMA) ppm/℃ 15 ppm/℃ 15
CTE(Z axis)(25-260℃) ASTM D 3386(TMA) ppm/℃ 217 ppm/℃ 217
NASA Outgassing(% TML) 0.01 0.01
NASA Outgassing(% CVCM) 0.01 0.01
NASA Outgassing(% WVR) 0.00 0.00
UL-94 Flammability Rating UL-94 V-0 V-0

Taconic High Frequency PCB Made on TLY-5 7.5mil 0.191mm With DK2.2 for Automotive Radar
