Specifications
Brand Name :
Bicheng Enterprise Limited
Model Number :
BIC-0421-V4.21
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD20~30
Payment Terms :
T/T,Paypal
Supply Ability :
45000 pieces per month
Delivery Time :
7-8 working days
Packaging Details :
Vacuum
Number of Layers :
1
Board Material :
Polyimide 25µm,ITEQ
Board thick :
0.20mm
Surface Cu thickness :
35 µm
Surface Finish :
Immersion Gold
Coverlay Colour :
Yellow and Yellow
Color of Silkscreen :
White
Test :
100% Electrical Test prior shipment
Description

Product profile

1.1 General description

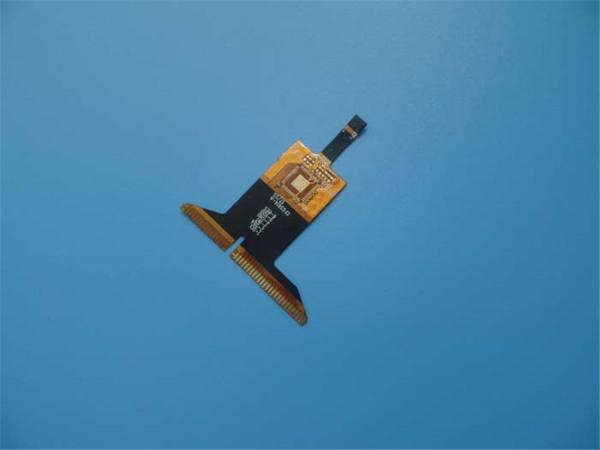

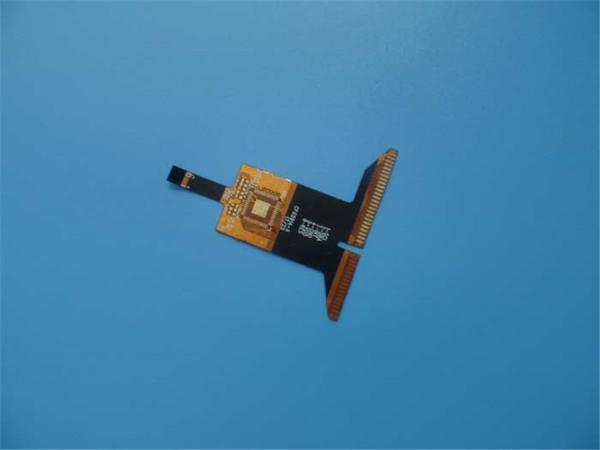

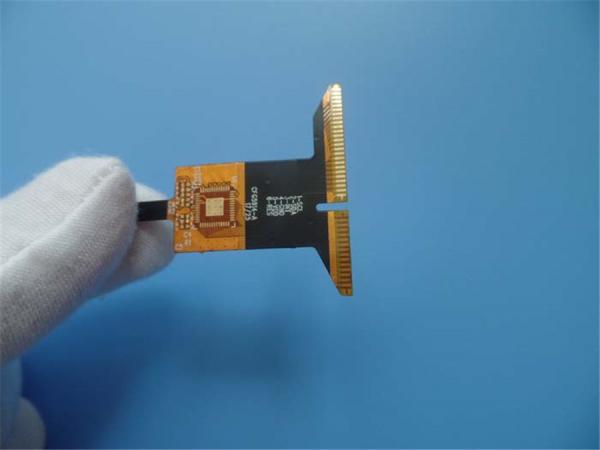

This is a type of flexible printed circuit with stainless steel stiffner on the top side.

It’s for the application of Frequency Generator. It’s a single layer FPC at 0.12mm

thick. The base laminate is from ITEQ, It’s fabricated per IPC 6012 Class 2 using

supplied Gerber data.


1.2 Features and benifits

A. Excellent flexibility
B. Reducing the volume
C. Weight reduction
D. Consistency of assembly
E. Increased reliability
F. Controllability of electrical parameter design
G. The end can be whole soldered
H. Material optionality
I. Low cost
J. Continuity of processing
K. Great customer service
L. Customer complaint rate: <1%

1.3 Application


Laser head FPC, Tablet computer battery soft board, Automobile GPS navigation

flex board


1.4 Parameter and data sheet

Size of Flexible PCB 37.26 X 23.11mm
Number of Layers 1
Board Type
Flexible PCB
Board Thickness 0.20mm
Board Material Polyimide 25µm
Board Material Supplier ITEQ
Tg Value of Board Material 60℃
PTH Cu thickness N/A
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 µm
Coverlay Colour Yellow and Yellow
Number of Coverlay 2
Thickness of Coverlay 25 µm
Stiffener Material Stainless steel
Stiffener Thickness 0.3mm
Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 1
Peeling test of Coverlay No peelable
Legend Adhesion 3M 90℃ No peeling after Min. 3 times test
Surface Finish Immersion Gold
Thickness of Nickle/Gold Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required Yes
Famability 94-V0
Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2
