Specifications
Brand Name :
Bicheng Enterprise Limited
Model Number :
BIC-0067-V6.7
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD40~50
Payment Terms :
T/T, Paypal
Supply Ability :
45000 pieces per month
Delivery Time :
5-6 working days
Packaging Details :
Vacuum
Thermal conductivity :
2.0W/MK 75um dielectric material
Final height of PCB :
1.6mm ±0.16
Final foil external :
1oz
Surface Finish :
Hot Air Soldering Leveling(HASL),lead free, Sn>=2.54µm
Solder Mask Color :
Black
Colour of Component Legend :
White
TEST :
100% Electrical Test prior shipment
Description

Product profile

1.1 General description

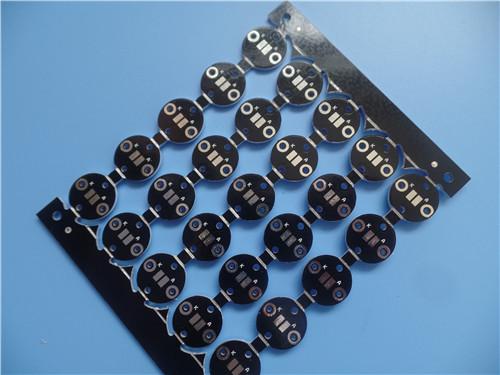

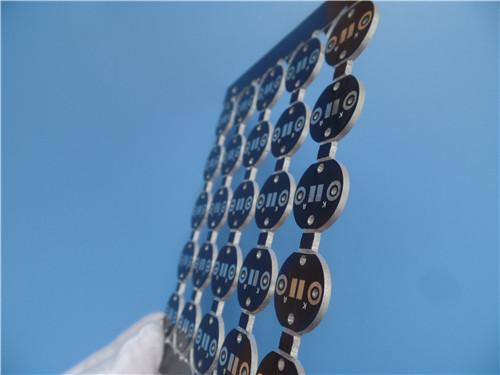

This is a type of aluminum PCB for the application of ignitor. It's a single layer MCPCB

board at 1.6 mm thick with 2 W/MK thermal conductivity. The aluminum plate is from

ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2

using supplied Gerber data. 25 panels are packed for shipment.

1.2 Features and benifits

A. SMT process.
B. Effective heat dissipation reduces the operating temperature of the module and

prolongs the service life.
C. Power density and reliability are improved up 10%.
D. Reduce the dependence of heat sinks and other hardware (including thermal

interface materials),
E. Reduce the volume of the product,
F. Reduce the cost of hardware and assembly,
G. 100% tests inclusive of electrical test and AOI inspection.
H. High voltage test, Impedance control test, micro-section, solder-ability test,
I. Thermal stress test, reliability test, insulation resistance test and ionic contamination

test,
J. UL conformed
K. Professional and experienced engineers
L. Competitive price

1.3 Application

Shopping mall lighting, Communication electronic equipment, Electronic regulator,

Automobile rear lighting


1.4 Parameter and data sheet

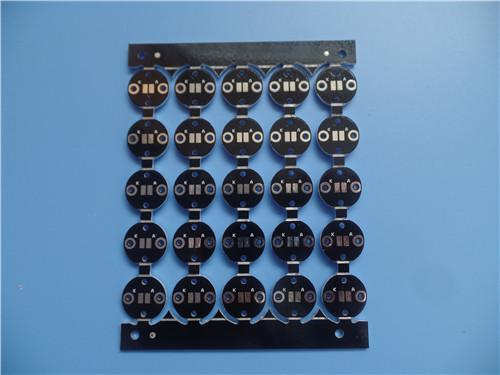

PCB SIZE 95 x 95mm=25PCS
BOARD TYPE IMS PCB
Number of Layers Double sided PCB, Metal core PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
2.0W/MK 75um dielectric material

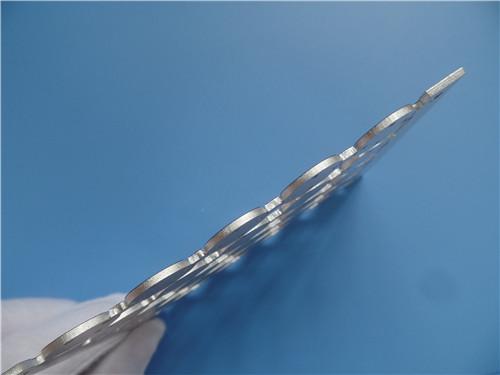

Aluminum base 5052
TECHNOLOGY
Minimum Trace and Space: 13mil/15mil
Minimum / Maximum Holes: 5.5mm
Number of Different Holes: 1
Number of Drill Holes: 4
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 2.0W/MK 75um dielectric material
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Hot Air Soldering Leveling(HASL),lead free, Sn>=2.54µm
Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: Black
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend White
Manufacturer Name or Logo: as per requirement
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
APPLICATION: LED light, Data Acquisition
Vehicle Tracking
GSM Module
Radio Communication
Portable Sound System
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

The Variety of Aluminum PCBs

Aluminum Metal Core PCB With 2W / MK and Black Solder Mask for Ignitor

Disposal prior to Solder mask

Aluminum Metal Core PCB With 2W / MK and Black Solder Mask for Ignitor
