Specifications
Brand Name :
Bicheng Enterprise Limited
Model Number :
BIC-0116-V1.16
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD40~50
Payment Terms :
T/T, Paypal
Supply Ability :
45000 pieces per month
Delivery Time :
6-7 working days
Packaging Details :
Vacuum
Aluminum core :
2W/MK dielectric material 75um
Final height of PCB :
1.2mm ±0.12
Final foil external :
1 oz
Surface Finish :
Hot air soldering leveling(HASL)
Solder Mask Color :
White, Taiyo PSR400 WT02
Colour of Component Legend :
Black
TEST :
100% Electrical Test prior shipment
Description

Product profile

1.1 General description

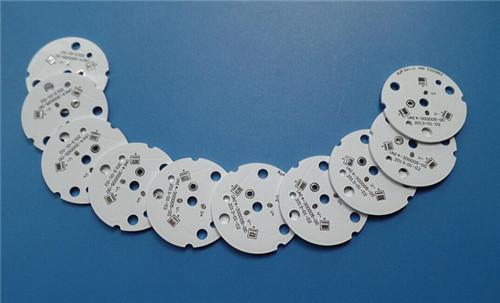

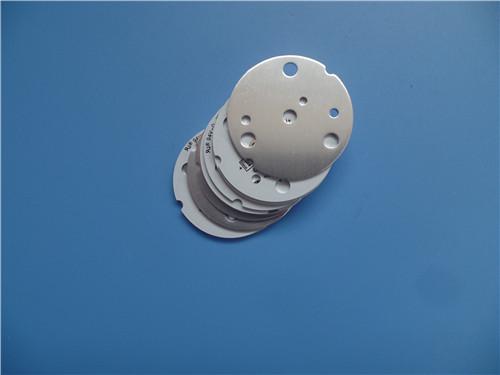

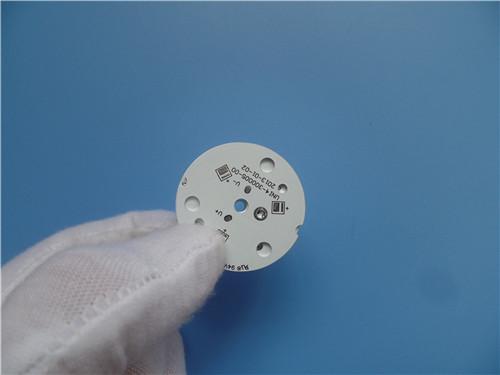

This is a type of aluminum PCB for the application of Led Lighting. It's a single layer

MCPCB board at 1.2 mm thick with 2 W/MK thermal conductivity. The aluminum plate

is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class

2 using supplied Gerber data. 20 boards are packed for shipment.

1.2 Features and benifits

A. Optimization combination of power circuit and control circuit,
B. Replace the fragile ceramic substrate and obtain a better mechanical durability,
C. Effective heat diffusion in the design of the circuit,
D. Reduce the operating temperature of the equipment,
E. Improve the power density and reliability of the device,
F. Prolong the service life of the product,
G. Whole fabrication process are totally controlled.
H. Meeting your printed circuit board needs from PCB prototyping to mass volume

production.
I. Eligible products rate of first production: >95%
J. UL conformed
K. Small quantity order is accepted
L. Delivery on time: >98%

1.3 Application

Wall lamp aluminum PCB,Converter, Motor controller, Commercial lighting

1.4 Parameter and data sheet

PCB SIZE 30 x 30mm=1PCS
BOARD TYPE IMS PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
2W/MK dielectric material 75um
Aluminum 5052 1.2mm
TECHNOLOGY
Minimum Trace and Space: 19mil/21mil
Minimum / Maximum Holes: 3.0/5.6mm
Number of Different Holes: 3
Number of Drill Holes: 0
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control no
BOARD MATERIAL
Aluminum core: 2W/MK dielectric material 75um
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.2mm ±0.12
PLATING AND COATING
Surface Finish Hot air soldering leveling(HASL),lead free, Sn>=2.54µm
Solder Mask Apply To: TOP, 12micron Minimum
Solder Mask Color: White, Taiyo PSR400 WT02
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend Black
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Non Plated Throught Hole (NPTH)
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
