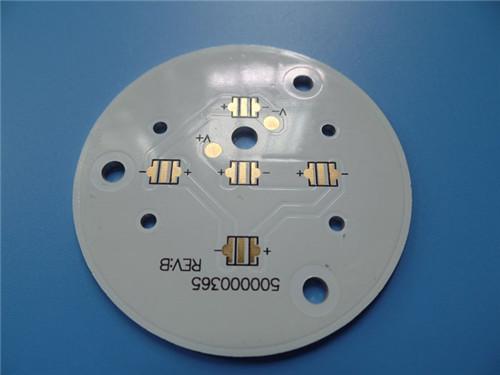

Aluminum PCB 1W / MK for Led Lighting Metal Core Printed Circuit Board ENIG
Aluminum PCB 1W / MK for Led Lighting Metal Core Printed Circuit Board ENIG
Aluminum PCB 1W / MK for Led Lighting Metal Core Printed Circuit Board ENIG
Aluminum PCB 1W / MK for Led Lighting Metal Core Printed Circuit Board ENIG
Aluminum PCB 1W / MK for Led Lighting Metal Core Printed Circuit Board ENIG
Aluminum PCB 1W / MK for Led Lighting Metal Core Printed Circuit Board ENIG
Aluminum PCB 1W / MK for Led Lighting Metal Core Printed Circuit Board ENIG
Aluminum PCB 1W / MK for Led Lighting Metal Core Printed Circuit Board ENIG
Aluminum PCB 1W / MK for Led Lighting Metal Core Printed Circuit Board ENIG
Aluminum PCB 1W / MK for Led Lighting Metal Core Printed Circuit Board ENIG
Aluminum PCB 1W / MK for Led Lighting Metal Core Printed Circuit Board ENIG
Aluminum PCB 1W / MK for Led Lighting Metal Core Printed Circuit Board ENIG
Specifications
Brand Name :
Bicheng Enterprise Limited
Model Number :
BIC-0061-V6.1
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD40~50
Payment Terms :
T/T, Paypal
Supply Ability :
45000 pieces per month
Delivery Time :
5-6 working days
Packaging Details :
Vacuum
Thermal conductivity :
1W/MK dielectric material, MCPCB
Final height of PCB :
1.6mm ±0.16
Final foil external :
1 oz
Surface Finish :
Electroless nickel over Immersion Gold (ENIG)
Solder Mask Color :
White,PSR400 WT02
Colour of Component Legend :
Black
TEST :
100% Electrical Test prior shipment
Description

Product profile

1.1 General description

This is a type of Aluminum PCB for the application of Led Lighting. It's a single layer

MCPCB board at 1.6 mm thick with 1 W/MK thermal conductivity. The aluminum plate

is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class

2 using supplied Gerber data. 25 boards are packed for shipment.

1.2 Features and benifits

A. SMT process.
B. Effective heat dissipation reduces the operating temperature of the module and prolongs

the service life.
C. Power density and reliability are improved up 10%.
D. Reduce the dependence of heat sinks and other hardware (including thermal interface

materials),
E. Reduce the volume of the product,
F. Reduce the cost of hardware and assembly,
G. Delivery on time. Keeping 98% on-time-delivery rate.
H. DDU Door to door shipment with competitive shipping cost,
I. Engineering design prevents problems from occurring in pre production.
J. RoHS materials
K. UL conformed
L. Professional and experienced engineers

1.3 Application

High frequency amplifier, Automobile, Insulation heat conduction of semiconductor

devices, Module aluminum PCB

1.4 Parameter and data sheet

PCB SIZE 49 x 49mm=1PCS
BOARD TYPE MCPCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
1W/MK dielectric material
Aluminum 5052
TECHNOLOGY
Minimum Trace and Space: 15mil/14mil
Minimum / Maximum Holes: 2.5/8.5mm
Number of Different Holes: 2
Number of Drill Holes: 8
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 1W/MK dielectric material, MCPCB
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel)
Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: White,PSR400 WT02
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Top
Colour of Component Legend Black
Manufacturer Name or Logo: as per requirement
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
