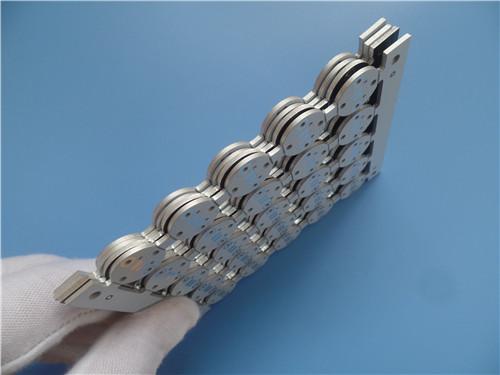

LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity
LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity
LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity
LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity
LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity
LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity
LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity
LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity
LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity
LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity
LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity
LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity
Specifications
Brand Name :
Bicheng Enterprise Limited
Model Number :
BIC-0066-V6.6
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD50~60
Payment Terms :
T/T, Paypal
Supply Ability :
45000 pieces per month
Delivery Time :
5-6 working days
Packaging Details :
Vacuum
Thermal conductivity :
3.0W/MK 200um dielectric material
Final height of PCB :
1.6mm ±0.16
Final foil external :
1oz
Surface Finish :
Hot Air Soldering Leveling(HASL),lead free
Solder Mask Color :
White
Colour of Component Legend :
Black
TEST :
100% Electrical Test prior shipment
Description

Product profile

1.1 General description

This is a type of aluminum PCB for the application of automotive ignitor. It's a single layer

MCPCB board at 1.6 mm thick with 3 W/MK thermal conductivity. The aluminum plate is

from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2

using supplied Gerber data. 25 panels are packed for shipment.

1.2 Features and benifits

A. SMT process.
B. Effective heat dissipation reduces the operating temperature of the module and

prolongs the service life.
C. Power density and reliability are improved up 10%.
D. Reduce the dependence of heat sinks and other hardware (including thermal

interface materials),
E. Reduce the volume of the product,
F. Reduce the cost of hardware and assembly,
G. DDU Door to door shipment with competitive shipping cost,
H. Engineering design prevents problems from occurring in pre production.
I. Products and Manufacturing are certified by authorized organizations.
J. Diversified shipping method
K. UL recognized and RoHS Directive-compliant
L. RoHS materials

1.3 Application

Dining room lighting, DC/AC converter, Radiator, Automotive lighting

1.4 Parameter and data sheet

PCB SIZE 100 x 100mm=25PCS
BOARD TYPE MIS PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
3.0W/MK 200um dielectric material
Aluminum base 1060
TECHNOLOGY
Minimum Trace and Space: 12mil/14mil
Minimum / Maximum Holes: 5.5mm
Number of Different Holes: 1
Number of Drill Holes: 4
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 3.0W/MK 200um dielectric material
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish

Hot Air Soldering Leveling(HASL),

lead free, Sn>=2.54µm
Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: White
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend Black
Manufacturer Name or Logo: as per requirement
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity

PCB Pattern plating

LED PCB Aluminum Base Metal Core PCB With 3W / MK Thermal Conductivity
