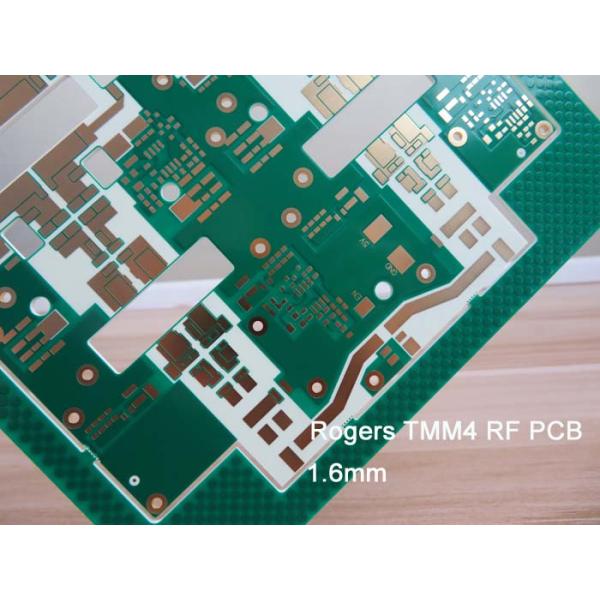

Rogers TMM4 Microwave Printed Circuit Board 15mil 20mil 25mil 30mil 50mil 60mil With Immersion Gold
Rogers TMM4 Microwave Printed Circuit Board 15mil 20mil 25mil 30mil 50mil 60mil With Immersion Gold
Rogers TMM4 Microwave Printed Circuit Board 15mil 20mil 25mil 30mil 50mil 60mil With Immersion Gold
Rogers TMM4 Microwave Printed Circuit Board 15mil 20mil 25mil 30mil 50mil 60mil With Immersion Gold
Rogers TMM4 Microwave Printed Circuit Board 15mil 20mil 25mil 30mil 50mil 60mil With Immersion Gold
Rogers TMM4 Microwave Printed Circuit Board 15mil 20mil 25mil 30mil 50mil 60mil With Immersion Gold
Specifications
Brand Name :
Bicheng Technologies Limited
Model Number :
BIC-103-V1
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD 9.99-99.99
Payment Terms :
T/T, Paypal
Supply Ability :
45000 pieces per month
Delivery Time :
10 working days
Packaging Details :
Vacuum
Glass Epoxy :
TMM4
Final height of PCB :
1.6mm ± 10%
Final foil external: :
1 oz
Surface Finish :
Immersion gold
Solder Mask Color: :
Green
Colour of Component Legend :
White
Number of Layers :
2
Test :
100% Electrical Test prior shipment
Description

Rogers TMM4 Microwave Printed Circuit Board 15mil 20mil 25mil 30mil 50mil 60mil With Immersion Gold
(PCB's are custom-made products, the picture and parameters shown are just for reference)


Rogers TMM4 thermoset microwave material is ceramic, hydrocarbon, thermoset polymer composite designed for high plated-through-hole reliability stripline and microstrip applications. It's available with dielectric constant at 4.70. The electrical and mechanical properties of TMM4 combine many of the benefits of both ceramic and traditional PTFE microwave circuit materials, without requiring the specialized production techniques. It does not require a sodium napthanate treatment prior to electroless plating.

TMM4 has an exceptionally low thermal coefficient of dielectric constant, typically less than 30 PPM/°C. The material’s isotropic coefficient of thermal expansion, very closely matched to copper, allows for production of high reliability plated through holes, and low etch shrinkage values. Furthermore, the thermal conductivity of TMM4 is approximately twice that of traditional PTFE/ceramic materials, facilitating heat removal.

TMM4 is based on thermoset resins, and do not soften when heated. As a result, wire bonding of component leads to circuit traces can be performed without concerns of pad lifting or substrate deformation.

Our Capability (TMM4)

PCB Material: Composite of Ceramic, hydrocarbon and thermoset polymer
Designator: TMM4
Dielectric constant: 4.5 ±0.045 (process); 4.7 (design)
Layer count: 1 Layer, 2 Layer
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 15mil (0.381mm), 20mil (0.508mm), 25mil (0.635mm), 30mil (0.762mm), 50mil (1.270mm), 60mil (1.524mm), 75mil (1.905mm), 100mil (2.540mm), 125mil (3.175mm) etc.
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Immersion tin, OSP.


Main Applications are as follows:
Chip testers
Dielectric polarizers and lenses
Filters and coupler
Global Positioning Systems Antennas
Patch Antennas
Power amplifiers and combiners
RF and microwave circuitry
Satellite communication systems

Rogers TMM4 Microwave Printed Circuit Board 15mil 20mil 25mil 30mil 50mil 60mil With Immersion Gold

Data Sheet of TMM4

TMMY Type Value
Property 　 TMM4 Direction Units Condition Test Method
Dielectric Constant,εProcess 4.5±0.045 Z 　 10 GHz IPC-TM-650 2.5.5.5
Dielectric Constant,εDesign 4.7 - - 8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor (process) 0.002 Z - 10 GHz IPC-TM-650 2.5.5.5
Thermal Coefficient of dielectric constant +15 - ppm/°K -55℃-125℃ IPC-TM-650 2.5.5.5
Insulation Resistance >2000 - Gohm C/96/60/95 ASTM D257
Volume Resistivity 6 x 108 - Mohm.cm - ASTM D257
Surface Resistivity 1 x 109 - Mohm - ASTM D257
Electrical Strength(dielectric strength) 371 Z V/mil - IPC-TM-650 method 2.5.6.2
Thermal Properties
Decompositioin Temperature(Td) 425 425 ℃TGA - ASTM D3850
Coefficient of Thermal Expansion - x 16 X ppm/K 0 to 140 ℃ ASTM E 831 IPC-TM-650, 2.4.41
Coefficient of Thermal Expansion - Y 16 Y ppm/K 0 to 140 ℃ ASTM E 831 IPC-TM-650, 2.4.41
Coefficient of Thermal Expansion - Z 21 Z ppm/K 0 to 140 ℃ ASTM E 831 IPC-TM-650, 2.4.41
Thermal Conductivity 0.7 Z W/m/K 80 ℃ ASTM C518
Mechanical Properties
Copper Peel Strength after Thermal Stress 5.7 (1.0) X,Y lb/inch (N/mm) after solder float 1 oz. EDC IPC-TM-650 Method 2.4.8
Flexural Strength (MD/CMD) 15.91 X,Y kpsi A ASTM D790
Flexural Modulus (MD/CMD) 1.76 X,Y Mpsi A ASTM D790
Physical Properties
Moisture Absorption (2X2) 1.27mm (0.050") 0.07 - % D/24/23 ASTM D570
3.18mm (0.125") 0.18
Specific Gravity 2.07 - - A ASTM D792
Specific Heat Capacity 0.83 - J/g/K A Calculated
Lead-Free Process Compatible YES - - - -


Rogers TMM4 Microwave Printed Circuit Board 15mil 20mil 25mil 30mil 50mil 60mil With Immersion Gold
