High Frequency PCB Board On Rogers 10 mil RO4350B With Immersion Gold for Radar Detector
High Frequency PCB Board On Rogers 10 mil RO4350B With Immersion Gold for Radar Detector
High Frequency PCB Board On Rogers 10 mil RO4350B With Immersion Gold for Radar Detector
High Frequency PCB Board On Rogers 10 mil RO4350B With Immersion Gold for Radar Detector
Specifications
Brand Name :
Bicheng Enterprise Limited
Model Number :
BIC-0082-V8.2
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD2.99-6.99 Per Piece
Payment Terms :
T/T, Paypal
Supply Ability :
45000 pieces per month
Delivery Time :
5-6 working days
Packaging Details :
Vacuum
Glass Epoxy :
RO4350B Tg280℃, er<3.48, Rogers Corp.
Final height of PCB :
0.3 mm ±0.1mm
Final foil external: :
1.5oz
Surface Finish :
Immersion Gold
Solder Mask Color: :
Green
Colour of Component Legend :
White
Number of Layers :
2
Test :
100% Electrical Test prior shipment
Description
High Frequency PCB On 10 mil RO4350B With Immersion Gold for Radar Detector

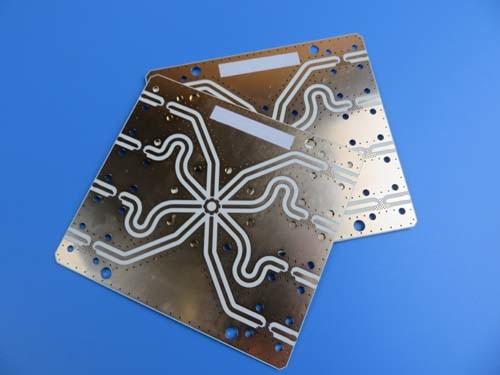

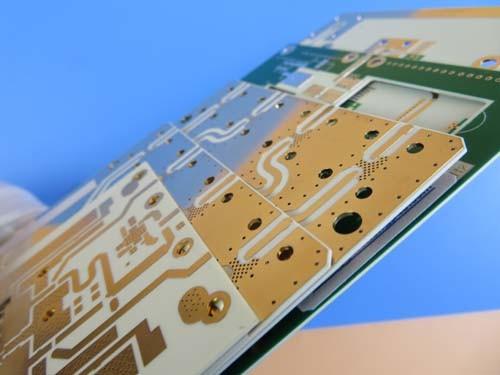

(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)
General description
This is a type of high frequency PCB built on 10mil (0.254mm) RO4350B substrate with Tg 280°C for the application of Radar Detector. It's double sided board at 0.30 mm thick, white silkscreen on green solder mask covering both sides and immersion gold is on pad for soldering. The base material is from Rogers Corp, entire board supplying 1 PCBs per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 50 panels are packed for shipment.
Features and benefits
Stable electrical properties verus frequency;
Low thermal coefficient of dielectric constant;
Low in-plane expansion coefficient;
Excellent dimensional stability;
Long storage time, it can be stored for more than 1 year in vacuum bag;
High solderability, no stressing of circuit boards and less contamination of PCB surface;
AOI inspection;
Electrical test and high voltage test;
Team with passion, discipline, responsibility and honesty;
No minimum order quantity. 1 piece is available;
No quality complaint is meant to save money;
Application
UHF radio, power splitter, analogue transmitter, base station antenna
Parameter and data sheet
PCB SIZE 140 x 52mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 35um(1 oz)+plate TOP layer
RO4350B 0.254mm
copper ------- 35um(1oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 4 mil / 4 mil
Minimum / Maximum Holes: 0.5 mm / 5.0 mm
Number of Different Holes: 11
Number of Drill Holes: 125
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RO4350B Tg280℃, er<3.48, Rogers Corp.
Final foil external: 1.5 oz
Final foil internal: N/A
Final height of PCB: 0.3 mm ±0.1mm
PLATING AND COATING
Surface Finish Immersion Gold
Solder Mask Apply To: Top and Bottom, 12micron Minimum
Solder Mask Color: Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.5mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
About Us
Bicheng PCB, a unique printed circuit board supplier based in Shenzhen China serves worldwide customers since it’s born in 2003. At Bicheng, every batch of PCB goes through electrical test, AOI inspection, high voltage test, Impedance control test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test and ionic contamination test etc. Finally it is like a beautiful gift to be delivered to your hands.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
Variety of PCB technology to meet the market demands
HDI board
Heavy copper board
Hybrid material board
Blind via board
High frequency board
Metal core board
Immersion gold board
Multilayer board
Backplane board
Gold finger board
Comprehensive sales service presale, in sale and after sale.
Quick CADCAM checking and free PCB quotation
Free-of-charge PCB panelization
Prototype PCB capability
Volume Production capability
Quick turn-around samples
Free-of-charge PCB test
Solid carton packing
