4 Layer Mixed PCB Built On 0.254mm RO4350B + 0.36mm FR-4 With ENIG
4 Layer Mixed PCB Built On 0.254mm RO4350B + 0.36mm FR-4 With ENIG
4 Layer Mixed PCB Built On 0.254mm RO4350B + 0.36mm FR-4 With ENIG
4 Layer Mixed PCB Built On 0.254mm RO4350B + 0.36mm FR-4 With ENIG
4 Layer Mixed PCB Built On 0.254mm RO4350B + 0.36mm FR-4 With ENIG
4 Layer Mixed PCB Built On 0.254mm RO4350B + 0.36mm FR-4 With ENIG
4 Layer Mixed PCB Built On 0.254mm RO4350B + 0.36mm FR-4 With ENIG
4 Layer Mixed PCB Built On 0.254mm RO4350B + 0.36mm FR-4 With ENIG
Specifications
Brand Name :
Bicheng Enterprise
Model Number :
BIC-0106-V1.06
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD 2.99-6.99 PER PIECE
Payment Terms :
T/T, Western Union
Supply Ability :
45000 pieces per month
Delivery Time :
5-6 working days
Packaging Details :
Vacuum
Number of Layers :
4
Glass Epoxy: :
RO4350B Tg280℃, er<3.48, Rogers Corp
Final foil :
1 Oz
Final height of PCB: :
0.8 mm ±10%
Surface Finish :
Immersion gold
Solder Mask Color: :
Green
Colour of Component Legend :
White
Test :
100% Electrical Test prior shipment
Description
4 Layer High Frequency PCB Built On 10mil RO4350B + 6mil RO4350B With ENIG
(PCB’s are custom-made products, the picture and parameters shown are just for reference)
General description
This is a type of 4-Layer high frequency PCB built on all low loss RO4350B material for the application of radar RF.
Basic specifications
Base material: RO4350B 6.6mil + RO4450B 8mil + RO4350B 10mil
Layer count: 4 layers
Type: Individual PCB
Format: 125mm x 70mm = 1 type = 1 piece
Surface finish: Immersion gold
Copper weight: Outer layer 35 μm/ Inner layer 35 μm
Solder mask / Legend: Green / white
Final PCB height: 0.8 mm
Standard: IPC 6012 Class 2

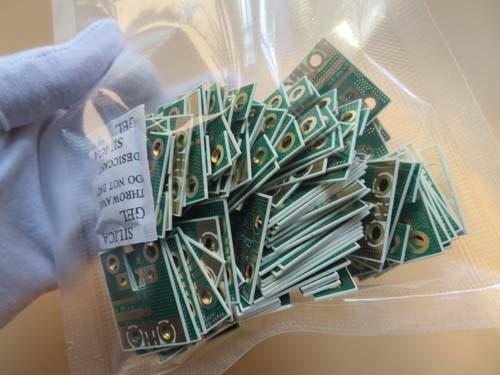

Packing: 25 pieces are packed for shipment.
Lead time: 10 working days
Shelf life: 6 months
Excellent high frequency performance due to low dielectric tolerance and loss;
Reducing signal loss in high frequency application meets the development needs of communication technology;
Tg > 280 ℃;
Powerful PCB capabilities support your research and development, sales and marketing;
Professional and experienced engineers check your production files
Money-saving, Worry-saving and Labor-saving;
Hassle-free, one-to-one after-sales service;
No minimum order quantity. 1 piece is available;
Application
Splitter, Acoustic detection sensors, RF Switches, Trunk amplifier
Parameter and data sheet
PCB SIZE 125 x 70mm=1PCS
BOARD TYPE Multilayer PCB
Number of Layers 4 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 35µm(1 oz)+plate TOP layer
RO4350B 6.6mil (0.167mm)
copper ------- 35µm
Prepreg RO4450B 8mil (0.203mm)
copper ------- 35µm
RO4350B 10mil (0.254mm)
copper ------- 35µm(1oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 2.99 mil / 3.62 mil
Minimum / Maximum Holes: 0.3 mm / 3.2 mm
Number of Different Holes: 6
Number of Drill Holes: 91
Number of Milled Slots: 0
Number of Internal Cutouts: NO
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RO4350B Tg280℃, er<3.48, Rogers Corp
Final foil external: 1 oz
Final foil internal: 1 oz
Final height of PCB: 0.8 mm ±10%
PLATING AND COATING
Surface Finish Immersion gold
Solder Mask Apply To: TOP and Bottom, 15 micron Minimum
Solder Mask Color: Green,LP-4G/G-05, Nanya Supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Both top and bottom sides
Colour of Component Legend White, S-380W, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
About Us
Bicheng PCB, a unique printed circuit board supplier based in Shenzhen China serves worldwide customers since it’s born in 2003. At Bicheng, every batch of PCB goes through electrical test, AOI inspection, high voltage test, Impedance control test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test and ionic contamination test etc. Finally it is like a beautiful gift to be delivered to your hands.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
Variety of PCB technology to meet the market demands
HDI board
Heavy copper board
Hybrid material board
Blind via board
High frequency board
Metal core board
Immersion gold board
Multilayer board
Backplane board
Gold finger board
Comprehensive sales service presale, in sale and after sale.
Quick CADCAM checking and free PCB quotation
Free-of-charge PCB panelization
Prototype PCB capability
Volume Production capability
Quick turn-around samples
Free-of-charge PCB test
Solid carton packing
