Taconic Cer-10 30mil 2-layer rigid PCB organic-ceramic PTFE composites HASL Lead free
Taconic Cer-10 30mil 2-layer rigid PCB organic-ceramic PTFE composites HASL Lead free
Taconic Cer-10 30mil 2-layer rigid PCB organic-ceramic PTFE composites HASL Lead free
Taconic Cer-10 30mil 2-layer rigid PCB organic-ceramic PTFE composites HASL Lead free
Specifications
Brand Name :
Bicheng Enterprise Limited
Model Number :
BIC-0315-V3.15
Certification :
UL
Place of Origin :
CHINA
MOQ :
1 PIECE
Price :
USD2 .99-9.99 per piece
Payment Terms :
T/T,Paypal
Supply Ability :
50000 PIECE PER MONTH
Delivery Time :
8-9 WORKING DAY
Packaging Details :
VACUUM
Board Material :
Polyimide 25μm + 0.3mm stiffener of FR-4 and 0.1mm Stainless steel
Board Thickness :
0.5 mm
Surface/Inner layer Cu thickness :
35 µm
Surface Finish :
Immersion Gold
Coverlay Colour :
Black
Color of Silkscreen :
White
Function :
100% Pass electrical test
Number of Layers :
2
Description

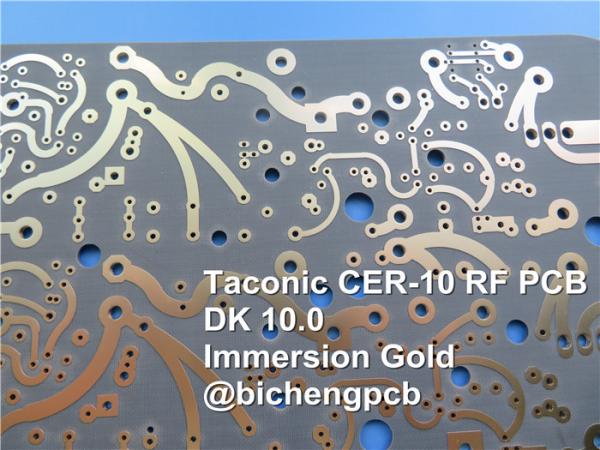

New 2-Layer PCB with Taconic Cer-10 Laminate for Microwave Frequencies

We are excited to introduce a new 2-layer PCB built using Taconic Cer-10 laminates. This organic-ceramic PTFE composite material provides excellent high frequency performance with a dielectric constant of 10 and low loss of 0.0035 at 10GHz. It withstands continuous operating temperatures from -40°C to +85°C.

The board features a 0.762mm (30 mil) Cer-10 core and 35μm copper on both sides. This controlled impedance construction optimizes the PCB for microwave frequencies up to 10GHz.

With dimensions of 75.58mm x 67.67mm, the layout supports 27 components within 64 pads and 51 vias across just 3 nets. The 4/6 mil minimum trace/space enables dense routing.

Other key specifications:

  • 0.5mm minimum hole size
  • 0.88mm thickness
  • 1 oz copper weight
  • 20μm via plating
  • Lead-free HASL surface finish
  • IPC Class 2 fabrication

We're talking precision control ideal for taming gigahertz frequencies. Plus this board brings the looks with lead-free HASL plating worthy of a hot rod.

Only first-class fabrication for our maverick - IPC Class 2 quality and 100% electrical testing before shipping. No cheap shortcuts here!

Whether you're designing 5G, radar, or satellite communications, this PCB delivers. It's engineered to whip around high-frequency layouts with speed and style.

Ready to push the limits? Contact us today to order your microwave maverick! We can't wait to see the high-flying designs you make this new speedster accomplish.
