Rogers 40mil CLTE-XT 1.016mm High Frequency PCB CLTE Woven Glass Reinforced PTFE Microwave PCB
Rogers 40mil CLTE-XT 1.016mm High Frequency PCB CLTE Woven Glass Reinforced PTFE Microwave PCB
Specifications
Brand Name :
Bicheng Enterprise Limited
Model Number :
BIC-210-V1.0
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD20~30
Payment Terms :
T/T / Paypal
Supply Ability :
45000 pieces per month
Delivery Time :
5-6 working days
Packaging Details :
Vaccum
Glass Epoxy :
CLTE-XT 1.016mm
Board Thick :
1.2 mm ±0.12
Copper thick :
1 oz
Surface Finish :
Immersion Gold
Solder Mask Color :
Green
Colour of Component Legend :
White
TEST :
100% Electrical Test prior shipment
Description

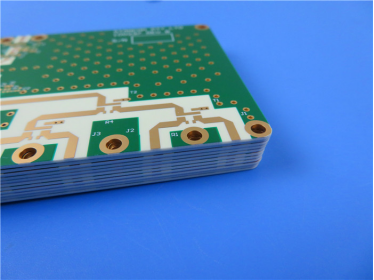

Rogers 40mil CLTE-XT 1.016mm High Frequency PCB CLTE Woven Glass Reinforced PTFE Microwave PCB

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

General Description

This a a type of double-sided high frequency PCB built on 40mil (1.016mm) CLTE-XT substrates with green solder mask and white silkscreen printed on component sides. The pads are protected by immersion gold with minimum 2 microinch gold over 120 micoinch nickle. The boards have a size of 150mm long and 65mm wide. Finished copper is standard 1oz.

The boards are fabricated strictly as per IPC-Class-II standard and 100% open-short circuit tested before shipment. They are vacuum packed with a bag of 25 boards and 12 kg per box for making a delivery.

PCB Specifications

PCB SIZE 65mm x 150mm=1 piece
BOARD TYPE High Frequency PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components N/A
LAYER STACKUP copper ------- 17um(0.5 oz)+plate top layer
CLTE-XT 1.016mm
copper ------- 17um(0.5 oz)+plate bot layer
TECHNOLOGY
Minimum Trace and Space: 12 mil / 12 mil
Minimum / Maximum Holes: 0.4 mm / 4.8 mm
Number of Different Holes: 9
Number of Drill Holes: 102
Number of Milled Slots: 1
Number of Internal Cutouts: 1
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: CLTE-XT 1.016mm
Final foil external: 1 oz
Final foil internal: 1 oz
Final height of PCB: 1.2 mm ±0.12
PLATING AND COATING
Surface Finish Immersion Gold, 43.57%
Solder Mask Apply To: Both sides
Solder Mask Color: Green
Solder Mask Type: Glossy
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Top side
Colour of Component Legend White
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

Rogers 40mil CLTE-XT 1.016mm High Frequency PCB CLTE Woven Glass Reinforced PTFE Microwave PCB

Our Advantages

1. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;

2. Wide range of PCB laminates option;

3. Engineering design prevents problems from occurring in pre-production;

4. PCB manufacturing is strictly as per required specifications;

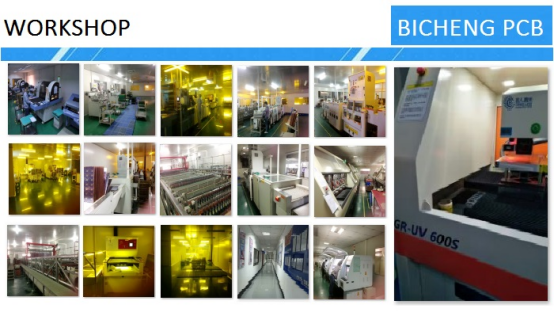

5. 16000㎡ workshop; 30000㎡ output capability per month; 8000 types of PCB's per month;

6. Quick CADCAM checking and free PCB quotation;

7. Rate of qualified products of first production: >99%

8. More than 20+ years of high frequency PCB experience;

9. A Team with passion, discipline, responsibility and honesty;

10. No MOQ, low cost for prototypes and small runs quantity;

Our PCB Capability(2023)

Parameter Value
　Layer Counts　 1-32
　Substrate Materials RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; DiClad 880, DiClad 870, DiClad 527; IsoClad 917; CLTE, CLTE-XT, CLTE-AT, CLTE-MW; Nelco N4000, N9350, N9240; SCGA-500 GF220, SCGA-500 GF255, SCGA-500 GF265, SCGA-500 GF300; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc.
　Maximum Size 　Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm
　Board Outline Tolerance 　±0.0059" (0.15mm)
　PCB Thickness 0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm) 　±8%
Thickness Tolerance(t＜0.8mm) 　±10%
　Insulation Layer Thickness 0.00295" - 0.1969" (0.075mm--5.00mm)
　Minimum Track 0.003" (0.075mm)
　Minimum Space 　0.003" (0.075mm)
　Outer Copper Thickness 　35µm--350µm (1oz-10oz)
　Inner Copper Thickness 　17µm--350µm (0.5oz - 10oz)
　Drill Hole(Mechanical) 0.0079" - 0.25" (0.2mm--6.35mm)
　Finished Hole(Mechanical) 0.0039"-0.248" (0.10mm--6.30mm)
DiameterTolerance(Mechanical) 0.00295" (0.075mm)
　Registration (Mechanical) 0.00197" (0.05mm)
　Aspect Ratio 　12:1
　Solder Mask Type 　LPI
　Min Soldermask Bridge 0.00315" (0.08mm)
　Min Soldermask Clearance 0.00197" (0.05mm)
　Plug via Diameter 0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance 　±10%
　Surface Finish HASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc.
