RF-35 High Frequency Printed Circuit Board 30mil 1.524mm Double Sided RF PCB with Immersion Gold and Black Solder Mask

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

Brief Introduction

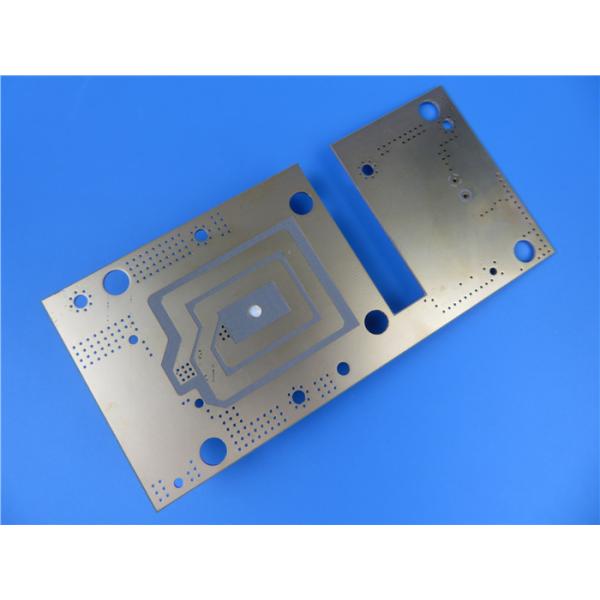

This is a type of ORCER (Organic Ceramic) RF-35 high frequency PCB. It’s built on 30mil core with 2oz copper on both top and bottom layer(double sided board). It’s 120mm long by 60mm wide with immersion gold on pads. Bottom layer is open to air with gold surface as we’ve seen.

Taconic RF PCB

Besides RF-35, there’re other types of Taconic “RF” PCB available in our house. Such as RF-10(10mil,20mil, 25mil, 60mil and 125mil), RF-30A(10mil, 20mil, 30mil,40mil and 60mil), RF-35TC(10mil, 20mil, 30mil), RF-60TC(10mil, 20mil, 30mil, 60mil and 125mil), RF-35A2 (5mil, 10mil, 20mil, 30mil and 60mil) etc. DK ranges 2.97 to 10.2 etc.

Typical Applications:

Power Amplifiers

Filters and Couplers

Passive Components

PCB Specifications

Other PCB Available Material

FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M, TU-872 SLK, TU-768, IT-180A etc.)

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, Kappa 438 etc.

PTFE F4B (DK2.2, DK2.65, DK2.85, DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2)

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-35TC, TLF-35, RF-60A, RF-60TC, RF-35A2 etc.

AD450, AD600, TC350 etc.

Nelco N4000, N9350, N9240

Metal core PCB, 1W/MK-3W/MK material

Flexible PCB
