Specifications
Brand Name :
Bicheng Technologies Limited
Model Number :
BIC-0069-V1.19
Certification :
UL
Place of Origin :
China
MOQ :
1
Price :
USD 2.99-9.99 PER PIECE
Payment Terms :
T/T, Western Union
Supply Ability :
45000 pieces per month
Delivery Time :
10 working days
Packaging Details :
Vacuum
Number of Layers :
4
Glass Epoxy :
RO4003C
Final foil :
1.0
Final height of PCB :
2.1 mm ±10%
Surface Finish :
Immersion gold
Solder Mask Color :
N/A
Colour of Component Legend :
N/A
Test :
100% Electrical Test prior shipment
Description

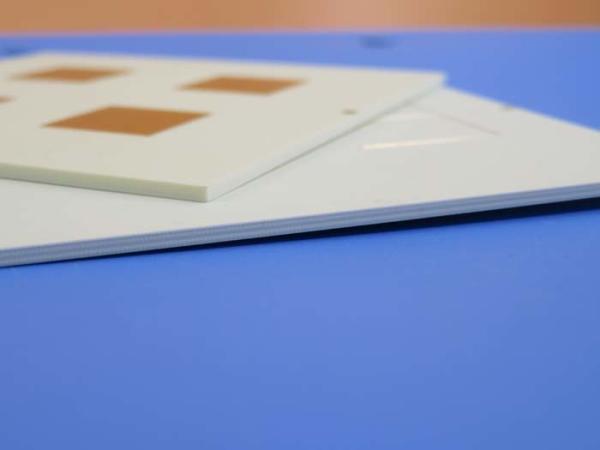

4 Layer High Frequency PCB On 2 Cores of 32mil 0.813mm RO4003C and 12mil RO4450F for Ultrahigh Frequency Coupler
(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)

Hello everyone,
Good day.

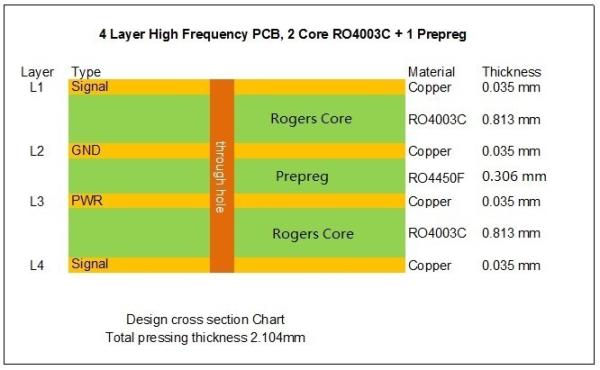

Today we talk about a type of 4 layer high frequency PCB. This PCB is built on 2 sheets of 0.813mm (32mil) RO4003C cores with 1 sheet RO4450F prepreg for the application of ultrahigh frequency coupler. Following is the stack-up.

4 Layer High Frequency PCB On 2 Cores of 32mil 0.813mm RO4003C and 12mil RO4450F for Ultrahigh Frequency Coupler

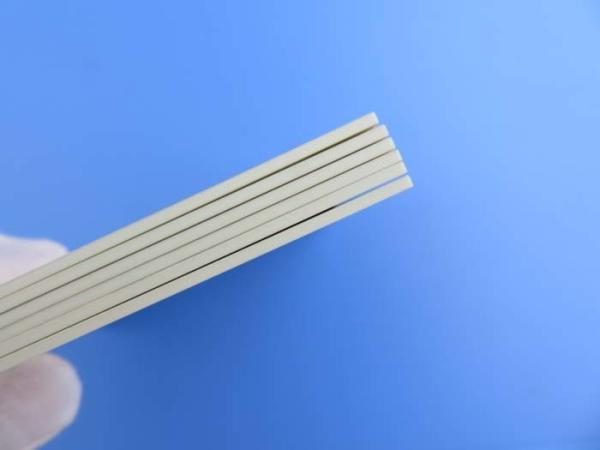

In general, multilayer Rogers high frequency PCBs are made from all high frequency material inclusive of prepreg adhesive. As is known to all, there’re 6 cores in RO4003C family, i.e. 8mil (0.203mm) to 60mil (1.524mm).

RO4003C:
8mil0.203mm
12mil0.305mm
16mil0.406mm
20mil0.508mm
32mil0.813mm
60mil1.524mm

So it’s very interesting that stack-up of 4 layers can be done in many different ways.


The specifications of the board are as follows:
Base material: RO4003C 32mil + RO4450F 12mil PP
Layer count: 4 layers
Type: Castellation holes (half holes) on edge
Format: 113mm x 80mm = 1 type = 4 piece
Surface finish: Immersion gold
Copper weight: Outer layer 35 μm/ Inner layer 35 μm
Solder mask / Legend: no / no
Final PCB height: 2.1 mm
Standard: IPC 6012 Class 2
Packing: 20 panels are packed for shipment.
Lead time: 10 working days
Shelf life: 6 months

You enjoy the features and benefits
1) Excellent high frequency performance due to low dielectric tolerance and loss;
2) AOI inspection;
3) Meeting your PCB needs from prototype to mass production;
4) 30000 square meter month capability;
5) 8000 types of PCB's per month;
6) More than 16 years of PCB experience;

Application
GPS antenna, WiFi amplifier, Power amplifier, RF transceiver, TV antenna, Radar data acquisition converter, Spread spectrum, Attenuator

Appendix: Properties of RO4003C

RO4003C Typical Value
PropertyRO4003CDirectionUnitsConditionTest Method
Dielectric Constant,εProcess3.38±0.05Z 10 GHz/23℃IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign3.55Z 8 to 40 GHzDifferential Phase Length Method
Dissipation Factortan,δ0.0027
0.0021		Z 10 GHz/23℃
2.5 GHz/23℃		IPC-TM-650 2.5.5.5
Thermal Coefficient of ε+40Zppm/℃-50℃to 150℃IPC-TM-650 2.5.5.5
Volume Resistivity1.7 x 1010 MΩ.cmCOND AIPC-TM-650 2.5.17.1
Surface Resistivity4.2 x 109 MΩCOND AIPC-TM-650 2.5.17.1
Electrical Strength31.2(780)ZKv/mm(v/mil)0.51mm(0.020")IPC-TM-650 2.5.6.2
Tensile Modulus19,650(2,850)
19,450(2,821)		X
Y		MPa(ksi)RTASTM D 638
Tensile Strength139(20.2)
100(14.5)		X
Y		MPa(ksi)RTASTM D 638
Flexural Strength276
(40)		 MPa
(kpsi)		 IPC-TM-650 2.4.4
Dimensional Stability<0.3X,Ymm/m
(mil/inch)		after etch+E2/150℃IPC-TM-650 2.4.39A
Coefficient of Thermal Expansion11
14
46		X
Y
Z		ppm/℃-55℃to288℃IPC-TM-650 2.4.41
Tg>280 ℃ TMAAIPC-TM-650 2.4.24.3
Td425 ℃ TGA ASTM D 3850
Thermal Conductivity0.71 W/M/oK80℃ASTM C518
Moisture Absorption0.06 %48hrs immersion 0.060"
sample Temperature 50℃		ASTM D 570
Density1.79 gm/cm323℃ASTM D 792
Copper Peel Stength1.05
(6.0)		 N/mm
(pli)		after solder float 1 oz.
EDC Foil		IPC-TM-650 2.4.8
FlammabilityN/A UL 94
Lead-free Process CompatibleYes

Thank you for your reading and you’re welcome to contact us for your PCB enquires.
