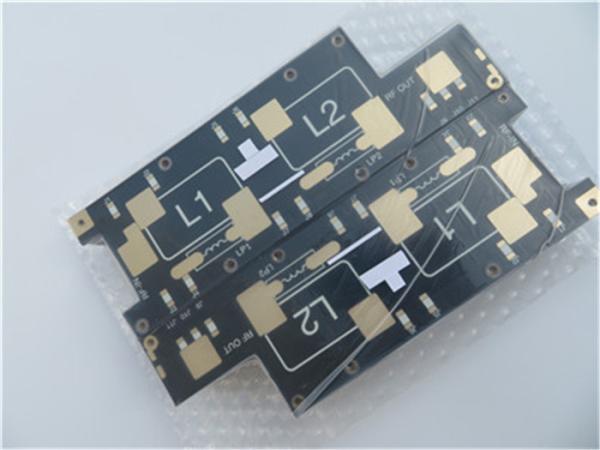

F4BTMS615 High Frequency PCB 1.6mm DK6.15 F4B Substrate With Immersion Gold
(PCB's are custom-made products, the picture and parameters shown are just for reference)
Brief Introduction
This printed circuit board (PCB) is designed as a double-sided board with two layers of copper, features a compact size of 171 mm x 58 mm. It supports surface mount components on top side. The layer stackup consists of a top layer with 35 µm (1 oz) copper starting with half ounces plating, supported by a durable F4BTMS615 core material with a thickness of 1.524 mm in the middle. This PCB uses Immersion Gold and black solder mask applied to the top side.
Here are more details in the table below.
PCB SIZE | 171 x 58mm=1PCS |
BOARD TYPE | Double sided PCB |
Number of Layers | 2 layers |
Surface Mount Components | YES |
Through Hole Components | NO |
LAYER STACKUP | copper ------- 35 um(0.5 oz+plate) TOP layer |
F4BTMS615 -1.524 mm | |
copper ------- 35 um(0.5 oz + plate) BOT Layer | |
TECHNOLOGY | |
Minimum Trace and Space: | 7 mil / 6 mil |
Minimum / Maximum Holes: | 0.5 mm / 1.5 mm |
Number of Different Holes: | 5 |
Number of Drill Holes: | 27 |
Number of Milled Slots: | 0 |
Number of Internal Cutouts: | 0 |
Impedance Control: | no |
Number of Gold finger: | 0 |
BOARD MATERIAL | |
Glass Epoxy: | F4BTMS615 Dk6.15 |
Final foil external: | 1oz |
Final foil internal: | N/A |
Final height of PCB: | 1.6 mm ±10% |
PLATING AND COATING | |
Surface Finish | Immersion Gold |
Solder Mask Apply To: | Top, Black |
Solder Mask Color: | no |
Solder Mask Type: | no |
CONTOUR/CUTTING | Routing |
MARKING | |
Side of Component Legend | Top |
Colour of Component Legend | White |
Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
VIA | Plated through hole(PTH), minimum size 0.5mm. |
FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE | |
Outline dimension: | 0.0059" |
Board plating: | 0.0029" |
Drill tolerance: | 0.002" |
TEST | 100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA | Worldwide, Globally. |
F4BTMS High Frequency Material
The F4BTMS series is an upgraded version of the F4BTM series. Building upon its foundation, significant technological advancements have been made in material formulation and manufacturing processes. The material now incorporates a large amount of ceramics and utilizes ultra-thin and ultra-fine fiberglass cloth reinforcement. These enhancements have greatly improved the material's performance, resulting in a wider range of dielectric constants. It is a high-reliability material suitable for aerospace applications, capable of replacing similar foreign products.
By incorporating a small amount of ultra-thin and ultra-fine fiberglass cloth reinforcement, along with a significant and uniform mixture of special nanoceramics and polytetrafluoroethylene resin, the fiberglass effect during the propagation of electromagnetic waves is minimized, reducing dielectric loss and enhancing dimensional stability. The material exhibits reduced anisotropy in the X/Y/Z directions, allowing for higher frequency usage, increased electrical strength, and improved thermal conductivity. The material also possesses excellent low coefficient of thermal expansion and stable dielectric temperature characteristics.
The F4BTMS series comes standard with RTF low roughness copper foil, which not only reduces conductor loss but also provides excellent peel strength. It can be paired with copper-based or aluminum-based options.
Features
1. Minimal dielectric constant tolerance and excellent batch-to-batch consistency.
Data Sheet (F4BTMS)
Product Technical Parameters | Product Models & Data Sheet | ||||||||||||
Product Features | Test Conditions | Unit | F4BTMS220 | F4BTMS233 | F4BTMS255 | F4BTMS265 | F4BTMS294 | F4BTMS300 | F4BTMS350 | F4BTMS430 | F4BTMS450 | F4BTMS615 | F4BTMS1000 |
Dielectric Constant (Typical) | 10GHz | / | 2.2 | 2.33 | 2.55 | 2.65 | 2.94 | 3.00 | 3.50 | 4.30 | 4.50 | 6.15 | 10.20 |
Dielectric Constant Tolerance | / | / | ±0.02 | ±0.03 | ±0.04 | ±0.04 | ±0.04 | ±0.04 | ±0.05 | ±0.09 | ±0.09 | ±0.12 | ±0.2 |
Dielectric Constant (Design) | 10GHz | / | 2.2 | 2.33 | 2.55 | 2.65 | 2.94 | 3.0 | 3.50 | 4.3 | 4.5 | 6.15 | 10.2 |
Loss Tangent (Typical) | 10GHz | / | 0.0009 | 0.0010 | 0.0012 | 0.0012 | 0.0012 | 0.0013 | 0.0016 | 0.0015 | 0.0015 | 0.0020 | 0.0020 |
20GHz | / | 0.0010 | 0.0011 | 0.0013 | 0.0014 | 0.0014 | 0.0015 | 0.0019 | 0.0019 | 0.0019 | 0.0023 | 0.0023 | |
40GHz | / | 0.0013 | 0.0015 | 0.0016 | 0.0018 | 0.0018 | 0.0019 | 0.0024 | 0.0024 | 0.0024 | / | / | |
Dielectric Constant Temperature Coefficient | -55 º~150ºC | PPM/℃ | -130 | -122 | -92 | -88 | -20 | -20 | -39 | -60 | -58 | -96 | -320 |
Peel Strength | 1 OZ RTF copper | N/mm | >2.4 | >2.4 | >1.8 | >1.8 | >1.2 | >1.2 | >1.2 | >1.2 | >1.2 | >1.2 | >1.2 |
Volume Resistivity | Standard Condition | MΩ.cm | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 |
Surface Resistivity | Standard Condition | MΩ | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 | ≥1×10^8 |
Electrical Strength (Z direction) | 5KW,500V/s | KV/mm | >26 | >30 | >32 | >34 | >40 | >40 | >42 | >44 | >45 | >48 | >23 |
Breakdown Voltage (XY direction) | 5KW,500V/s | KV | >35 | >38 | >40 | >42 | >48 | >52 | >55 | >52 | >54 | >55 | >42 |
Coefficientof Thermal Expansion (X, Y direction) | -55 º~288ºC | ppm/ºC | 40, 50 | 35, 40 | 15, 20 | 15, 20 | 10, 12 | 10, 11 | 10, 12 | 13, 12 | 12, 12 | 10, 12 | 16, 18 |
Coefficientof Thermal Expansion (Z direction) | -55 º~288ºC | ppm/ºC | 290 | 220 | 80 | 72 | 22 | 22 | 20 | 47 | 45 | 40 | 32 |
Thermal Stress | 260℃, 10s,3 times | / | No delamination | No delamination | No delamination | No delamination | No delamination | No delamination | No delamination | No delamination | No delamination | No delamination | No delamination |
Water Absorption | 20±2℃, 24 hours | % | 0.02 | 0.02 | 0.025 | 0.025 | 0.02 | 0.025 | 0.03 | 0.08 | 0.08 | 0.1 | 0.03 |
Density | Room Temperature | g/cm3 | 2.18 | 2.22 | 2.26 | 2.26 | 2.25 | 2.28 | 2.3 | 2.51 | 2.53 | 2.75 | 3.2 |
Long-Term Operating Temperature | High-Low Temperature Chamber | ℃ | -55~+260 | -55~+260 | -55~+260 | -55~+260 | -55~+260 | -55~+260 | -55~+260 | -55~+260 | -55~+260 | -55~+260 | -55~+260 |
Thermal Conductivity | Z direction | W/(M.K) | 0.26 | 0.28 | 0.31 | 0.36 | 0.58 | 0.58 | 0.6 | 0.63 | 0.64 | 0.67 | 0.81 |
Flammability | / | UL-94 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 |
Material Composition | / | / | PTFE,Ultra-thin and ultra-fine (quartz) fiberglass. | PTFE,Ultra-thin and ultra-fine fiberglass, ceramics. |
Our PCB Capability (F4BTMS)
PCB Material: | PTFE,Ultra-thin and ultra-fine fiberglass, ceramics. | ||
Designation (F4BTMS ) | F4BTMS | DK (10GHz) | DF (10 GHz) |
F4BTMS220 | 2.2±0.02 | 0.0009 | |
F4BTMS233 | 2.33±0.03 | 0.0010 | |
F4BTMS255 | 2.55±0.04 | 0.0012 | |
F4BTMS265 | 2.65±0.04 | 0.0012 | |
F4BTMS294 | 2.94±0.04 | 0.0012 | |
F4BTMS300 | 3.0±0.04 | 0.0013 | |
F4BTMS350 | 3.5±0.05 | 0.0016 | |
F4BTMS430 | 4.3±0.09 | 0.0015 | |
F4BTMS450 | 4.5±0.09 | 0.0015 | |
F4BTMS615 | 6.15±0.12 | 0.0020 | |
F4BTMS1000 | 10.2±0.2 | 0.0020 | |
Layer count: | Single Sided, Double Sided PCB, Multilayer PCB, Hybrid PCB | ||
Copper weight: | 0.5oz (17 µm), 1oz (35µm), 2oz (70µm) | ||
Dielectric thickness | 0.09mm (3.5mil), 0.127mm (5mil), 0.254mm(10mil),0.508mm(20mil), 0.635mm(25mil), 0.762mm(30mil), 0.787mm(31mil), 1.016mm(40mil), 1.27mm(50mil), 1.5mm(59mil), 1.524mm(60mil), 1.575mm(62mil), 2.03mm(80mil), 2.54mm(100mil), 3.175mm(125mil), 4.6mm(160mil), 5.08mm(200mil), 6.35mm(250mil) | ||
PCB size: | ≤400mm X 500mm | ||
Solder mask: | Green, Black, Blue, Yellow, Red etc. | ||
Surface finish: | Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP, Pure gold, ENEPIG etc.. |
