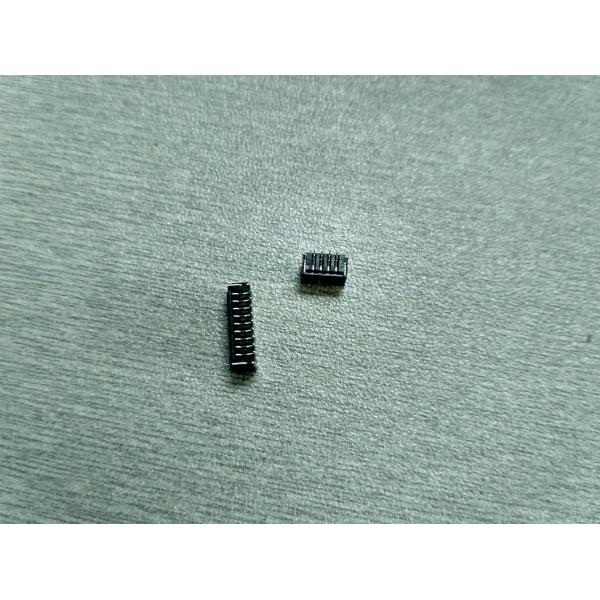

1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin
Specifications
Brand Name :
HRT
Model Number :
A1001WV-S-NP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
USD0.001 to 0.005 per pcs
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Tube(pipe) with outside paper carton
Color :
Black
Pitch :
1.0mm
Wafer materials :
PA6T, UL94V-0
Wire range :
AWG32# to 28#
Packaging Type :
Tube
Pins material :
Phosphor bronze or tin-plated
Description

1.0mm Pitch Board To Wire Connectors , Smt Connector 180 Degree Type A1001WV

1, Detailed specification table of product

Detailed information

Basic information

 Type Wafer
Circuits From 2 pins to 24 pins
Insulation O.D. 0.80mm(Max)
Mating lock None
Finish terminal Tin-plated or gold-flash
Mated housing A1001 series single row housing
Mounting methods SMT type
Wafer material Nylon 6T, UL94V-0
Cap Nylon 6T, UL94V-0
Pin material Phosphor bronze or tin-plated
Solder tabs Brass or tin-plated
Electrical properties Current Rating 1A AC, DC
Voltage Rating 50V AC, DC
Contact Resistance 20mΩ Max
Insulation Resistance 100mΩ min
Withstanding Voltage 500V AC/minute
Mechanical properties Temperature range -25℃ to 85 ℃
Terminal Insertion Force 0.50kgf (Max.)
Terminal/Housing Retention Force 0.70kgf (Min.)
Pin Retention Force 0.50kgf (Min.)
Other information please kindly check the following picture.

2,These series product

Please kindly notice these series product, you can buy it as a set, then we will offer you reasonable price.

A1001 series product
Terminal A1001-T-A

Housing

 Dual housing A1001H-2XNP & A1001HB-NP-1
Single housing A1001H-NP-1 & A1001H-NP-2
Wafer Dual rows type A1001WV-S-2XNP & A1001WR-S-2XNP & A1001WV-SF-2XNP
Single row type A1001WV-S-NP & A1001WR-S-NP

A1001 series demo

1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin

3,Corresponding engineering drawing & test report

Below file is our engineering drawing and testing report for further information. It's sure that it will be a

good reference for you to know this series parts clearly.

Drawing of dimension

1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin

3, FAQ

1) What's the delivery time?
Usually 5-8 days after payment received, longer for large order.

2) What’s the payment term?
Our payment terms: T/T, PayPal, Western Union, Moneygram, L/C, etc.

3) What's the shipping way?
Via DHL, FedEx, EMS, UPS, by air, by sea...etc.

4) Do you have after-sales service?
Yes. 8 hours online service

5) What is your guarantee for the goods?
We will replace 1:1 for the defective goods after sales.12 months guarantee after manufacturing.

4,The application of this series product
Please kindly check the below picture, you can know its' applicated range directly. Our products are mainly used in wire to wire connecting, power, Inside of some machines and some appliances, or power of PCB board. By the way, all of this series prodcut are complied with REACH, UL, RoHS srandard. In order to protect the evironment furthur, some parts are halogen free.

5, Delivery & Payment Way

We can offer multiple delivery way for you, it will let you to recieve our part in a short time. Besides, flexible payment terms are available to save the commision charges both for us.
