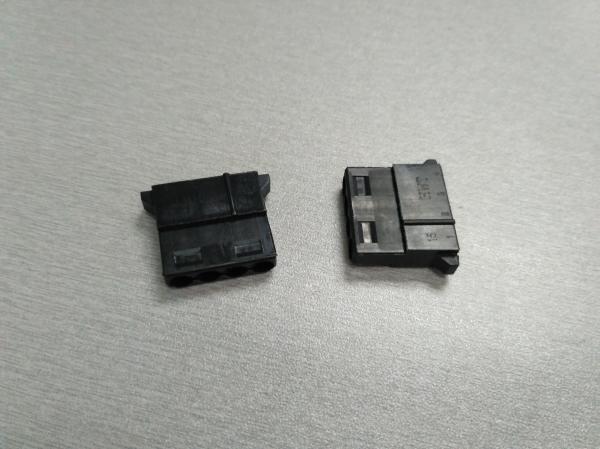

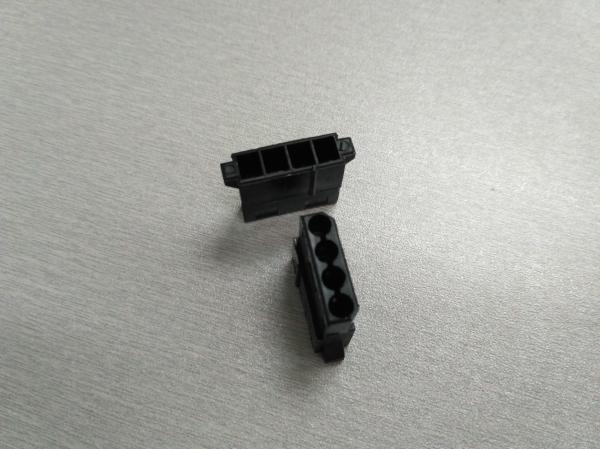

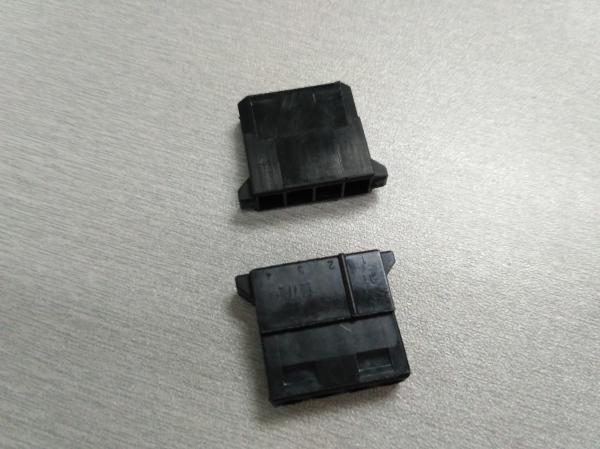

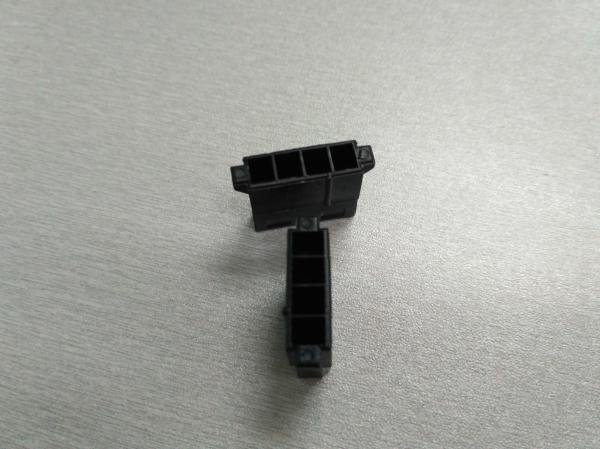

5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector
Specifications
Brand Name :
HRT
Model Number :
C5080HF-04P
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
USD0.001 to 0.5 per pcs
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Tube(pipe) with outside paper carton
Color :
Black
Pitch :
5.08mm
Wafer materials :
PA66, UL94V-2
Wire range :
AWG24# to 18# or AWG24# to AWG14#
Packaging Type :
Pipe or bag
Terminal material :
Brass
Description

5.08mm Pitch Pcb Connectors, Board In Connector With Brass / Tin-Plated

1, Detailed specification table of product

Detailed information

Basic information

 Type Housing
Gender Female
Circuits 4 positions
Insulation O.D. 3.10mm(max) or 2.5mm(max)
Mating lock Without
Finish terminal Tin-plated
Suitable terminal C5080T-M-A
Suitable housing C5080HF
Electrical properties Current Rating 10A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 10mΩ Max
Insulation Resistance 1000MΩ Min
Withstanding Voltage 1500V AC/minute
Mechanical properties Temperature range -25℃ to 85 ℃
Terminal Insertion Force 2.0kgf (Max.)
Terminal/Housing Retention Force

3.00kgf (Min.)
Pin Retention Force 2.00kgf (Min.)
Other information please kindly check the following picture.

2, Introduction for this series products

Please kindly notice that the C5080 series product, you can buy it as a set, then we will offer you reasonable set price.

C5080 series product
Terminal C5080F-T and C5080M-T-A

Connector

 Male housing C5080HF-04P
Female housing C5080HM-04P
Wafer Vertical mouting type C5080WV-04P

3, Corresponding engineering drawing & test report

Below file is our engineering drawing and testing report for further information. It's sure that it will be a

good reference for you to know this series parts clearly.

Dimension drawing

5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector

5.08mm Pitch Disk Drive Power Connector, Male Crimp Housing Wire to Wire connector

Mechanical Performance

Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#14 11.0kgf (Min)
AWG#16 10.0kgf (Min)
AWG#18 9.0kgf (Min)
AWG#20 6.0kgf (Min)
AWG#22 4.0kgf (Min)
AWG#24 3.0kgf (Min)
5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 2.00kgf (Max.)
5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 3.00kgf (Min.)
5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 2.0kgf (Min.)
5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
5-7 Vibration

Amplitude: 1.5mm P-P

Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)

Discontinuity 1 μsec.(Max.)
5-8 Physical Shock 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)

4,Why choose us

1). We are in Donguan,the hometown of electronics parts in China. We can provide you the most competitive products.

2). We have sampling more than 8000 types of products for our custom in the past 12 years.

3).There is a a pool of experienced, sophisticated work of the top technical talent, and use of advanced automated production equipment, full assurance of the quality of the products.

4).Our customers are located all over the world including China,Singapore,Austrillia ,Korea, India, USA and many countries in Europe as well as Africa and South America.

5, Our product family show

Please kindly look the next picture, you can know our product range by an easy way. Our main product are wire housing, wire to board connectoor, wire to wire connector, board-in connectors, FPC/FFC connectors and more.
