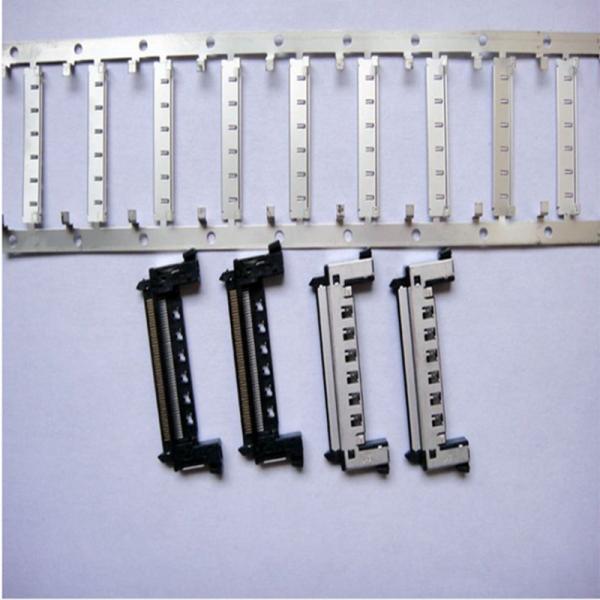

Single Row Wire To Board Connector, 0.5 Mm Pitch LVDS Connector With Stainessless Shell
Single Row Wire To Board Connector, 0.5 Mm Pitch LVDS Connector With Stainessless Shell
Single Row Wire To Board Connector, 0.5 Mm Pitch LVDS Connector With Stainessless Shell
Single Row Wire To Board Connector, 0.5 Mm Pitch LVDS Connector With Stainessless Shell
Specifications
Brand Name :
HRT
Model Number :
A0551H-NP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000pcs
Price :
Negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
200K pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Bags and carton or customized term
Category :
LVDS display connector
Pitch :
0.50mm
Row :
single
Material :
Nylon46
Secure lock structure :
with
Shell material :
stainless
Description

1, The specification for product including basic size information, electrical and mechanical feature.

Basic size information
Color black
Suitable terminals A0551 series
Row single
Lock structure with
Lock lever stainless
Circuits 41positions or 51 positions
Electrical feature
Current Rating 0.7A AC, DC
Voltage Rating 100V AC, DC
Contact Resistance 50mΩ Max
Insulation Resistance 100mΩ
Withstanding Voltage 500V AC/minute
Mechanical feature
Temperature range -25℃ to 85 ℃
The other information please check the following

2, Related enginnering drawing and testing report

Below pictures is the testing report for your information, it wil be helpful for you to choose our precise

connector, housing, terminal etc from our parts.

Single Row Wire To Board Connector, 0.5 Mm Pitch LVDS Connector With Stainessless Shell

Single Row Wire To Board Connector, 0.5 Mm Pitch LVDS Connector With Stainessless Shell

6. Environmental Performance And Others

Test Description Procedure Requirement
6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

Appearance No Damage.

Contact Resistance 100mΩ (Max.)
6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
6-4 Humidity

Temperature: 40±2℃

Relative Humidity : 90~95%

Duration: 96 hours

(Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

Appearance No Damage.

Contact Resistance 100mΩ (Max.)

Insulation Resistance 10MΩ (Min.)

Dielectric Withstanding Voltage Must meet 4-3
6-5 Temperature Cycling

5 cycles of:

a) -55℃ 30 minutes

b) +85℃ 30 minutes

(Based upon JIS C0025)

Appearance No Damage.

Contact Resistance 100mΩ (Max.)
6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
6-7 SO2 Gas

24 hours exposure to 50±5ppm.

SO2 gas at 40±2℃.
6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.

6-9 Solderability

Soldering Time: 5±0.5 sec.

Solder Temperature: 245±5℃

 Solder Wetting 95% of immersed area must show no voids, pin holes
6-10 Resistance to Soldering Heat

Solder pot method

Soldering time: 10±0.5 sec.

Solder Temperature: 260±5℃

Solder iron method

Soldering Time: 5±0.5 sec.

Solder Temperature: 370℃ ~ 400℃

 Appearance No Damage.

7. Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits At Initial
Insertion (Max.) Withdrawal (Min.)
21 0.70 0.17
31 1.00 0.25
41 1.30 0.33
51 1.60 0.41

3, we can offer various fast delivery way for you!

The official partner relationship help us to send the parts to you fast and safely. In most developed world, delivery by Fed x/UPS/DHL is normally 2-3 days(excluding weekends).

Single Row Wire To Board Connector, 0.5 Mm Pitch LVDS Connector With Stainessless Shell

4, FAQ for reference


Q1: Are you manufacturer or trading company?
A: We are a professional manufacturer with 12 years experience in producing, research and development, sales of variety of electronics connectors.

Q2: How to control the quality of your products?
A: Quality is life of our company. The QC staff control each procedure as per ISO9001 program. 100% testing before shipping.

Q3: Where is your factory located,and how can we visit there?
A: Our company is located Dongguan city, Guangdong Province,China. It is close to Shenzhen.

Q4: How can I get the sample?
A: The sample is free,but the shipping cost will be paid by customers.


Q5: What are your products applied to?
A: Our products are applied to automotive use, communication equipment,industrial use, household appliance, electronics,etc.
