Double Row Wire To Board Crimp Style Connectors Pin Header with 2.0mm Pitch Wire Connector
Double Row Wire To Board Crimp Style Connectors Pin Header with 2.0mm Pitch Wire Connector
Double Row Wire To Board Crimp Style Connectors Pin Header with 2.0mm Pitch Wire Connector
Double Row Wire To Board Crimp Style Connectors Pin Header with 2.0mm Pitch Wire Connector
Double Row Wire To Board Crimp Style Connectors Pin Header with 2.0mm Pitch Wire Connector
Double Row Wire To Board Crimp Style Connectors Pin Header with 2.0mm Pitch Wire Connector
Double Row Wire To Board Crimp Style Connectors Pin Header with 2.0mm Pitch Wire Connector
Double Row Wire To Board Crimp Style Connectors Pin Header with 2.0mm Pitch Wire Connector
Specifications
Brand Name :
HRT
Model Number :
A2016H
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
500 K pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Bag with outside carton
Suitable terminals :
A2015T series
Suitable pin header :
A2016 series pin header
Mating lock to part :
Without
Wire range :
AWG 26# to 30#
Flammability :
UL94V-0
Row No. :
Dual
Description

Two Row LVDS Connectors Wire Housing A2016 Series Pin Header 2.0mm Pitch

1, The specification of the product like information of size, electrical and mechanical properties.

Basic size information
Color Black
Pitch

2.00mm
Material PBT(standard)
Nose No. of A2016H-2XNP 0
Nose No. of A2016H-N-2XNP 1
Nose No. of A2016H-3N-2XNP 3
Wire Termination Method Crimping
Circuits 4 to 60 pins
Wire Insulation Diameter 1.30mm Max.
Mounting side Standard on-Board
Terminals material Phosphor bronze; gold-flash finish
Electrical properties
Current Rating 2A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 20mΩ Max
Insulation Resistance 1000mΩ min
Withstanding Voltage 1000V AC/minute
Mechanical properties
Operating Temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.

2, Related drawing and report

We wish our engineering drawing and report can help you to get the right parts from us easily.

without nose type

Double Row Wire To Board Crimp Style Connectors Pin Header with 2.0mm Pitch Wire Connector

with one nose type

Double Row Wire To Board Crimp Style Connectors Pin Header with 2.0mm Pitch Wire Connector

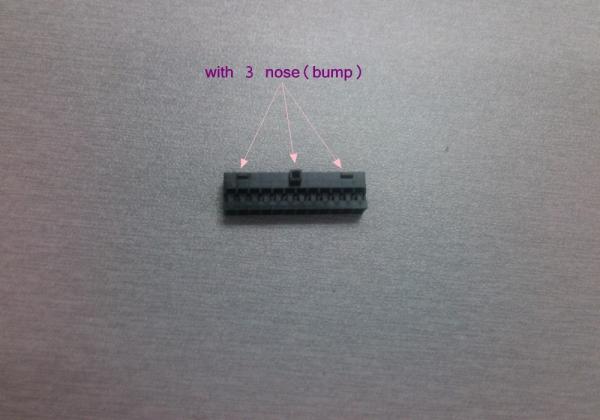

with 3 nose type

Double Row Wire To Board Crimp Style Connectors Pin Header with 2.0mm Pitch Wire Connector

Mechanical Performance

Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#26 2.0kgf (Min)
AWG#28 1.0kgf (Min)
AWG#30 0.8kgf (Min)
5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.00kgf (Max.)
5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 1.00kgf (Min.)
5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 1.00kgf (Min.)
5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 40mΩ (Max.)
5-7 Vibration

Amplitude: 1.5mm P-P

Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

Discontinuity 1 μsec.(Max.)
5-8 Physical Shock 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)

3, Why choose us?
1). High Reputation: We are a professional & realiable electronics connector, wafer, termianl manufacturer with 12 years experience, who has owned high reputation in this field.

2). Famous Exhibition: We are active in attending Exhibitions, like China Sourcing Fair in HongKong. We've built up business with lots of clients from all over the world.

3). Visit us: Welcome to visit our factory facility, we will show you a competitive company with high quality & reasonable price.
