1, Detailed specification of product:

1. Basic information:

• Color: White
• Housing Material: Nylon66
• Flammability: 94V-0/2
• Pitch:4.20 mm
• Circuits: 2,3,4,5 positions
• Insulation O.D.: 3.10mm
• Terminal materials: Phosphor bronze/Brass
• Finish terminal: Tin-plated type
• Matched terminal: C4255M series terminal

2. Electrical characteristic:

• Current Rating: 9A AC DC
• Voltage Rating: 600V AC, DC
• Contact Resistance: 10mΩ Max
• Insulation Resistance: 1000MΩ
• Withstanding Voltage: 1500V AC/minute

3. Mechanical characteristic:

• ​​Temperature Range:-25°C ~+85°C
• Terminal Insertion Force: 1.50kgf (Max.)
• Terminal/Housing Retention Force: 3.00kgf (Min.)
• Pin Retention Force: 3.00kgf (Min.)
• Latch Yield Strength:7.0kgf (Min.)
• Panel Mount Retention Force: 16.0kgf (Min.)

Other detailed data please check the pictures as below.

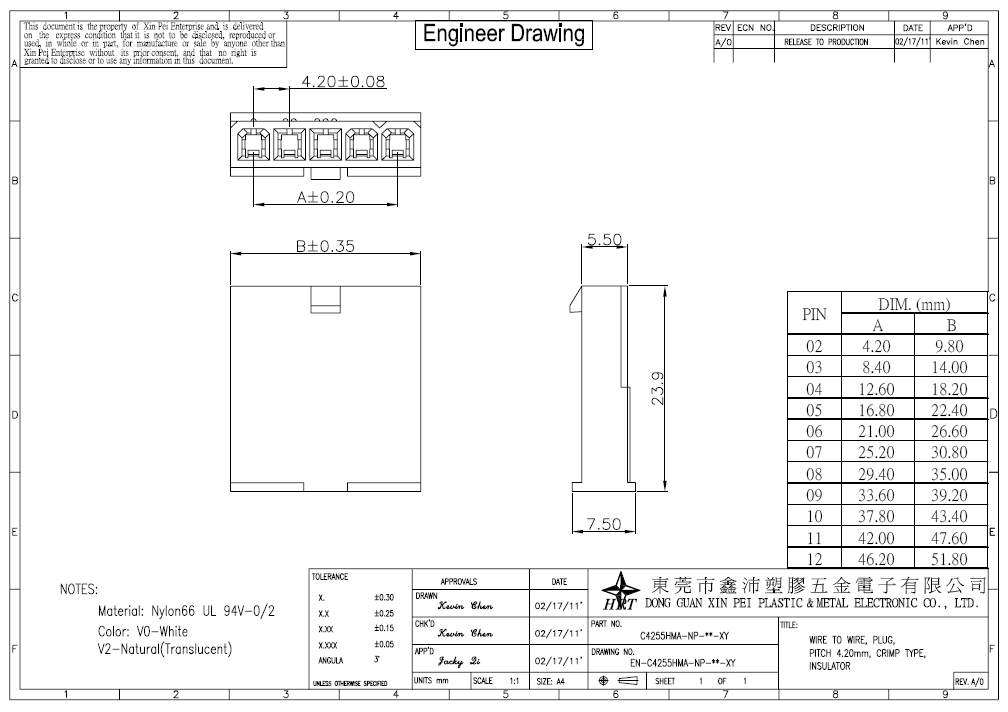

2, Related engineering drawing and testing report

The attached picture is our standard engineering drawing and report for your reference, it will help you to

know our product feature, then you can choose the right models.

Electrical Performance

Test Description		Procedure	Requirement
4-1	Contact Resistance	Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)	10mΩ (Max.)
4-2	Insulation Resistance	Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)	1000MΩ (Min.)
4-3	Dielectric Withstanding Voltage	Mate connectors, apply 1500V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)	No Breakdown.
4-4	Contact Resistance on Crimped Portion	Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.), 10mA.	5mΩ (Max.)

Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits	At Initial		Circuits	At Initial
	Insertion (Max.)	Withdrawal (Min.)		Insertion (Max.)	Withdrawal (Min.)
Single	0.70	0.20	10	7.00	2.80
02	1.40	0.50	11	7.70	3.05
03	2.10	0.75	12	8.40	3.30
04	2.80	1.10	14	9.80	3.90
05	3.50	1.35	16	11.20	4.40
06	4.20	1.60	18	12.60	5.00
07	4.90	1.90	20	14.00	5.60
08	5.60	2.20	22	15.40	6.10
09	6.30	2.50	24	16.80	6.70

3, Introduction for this series products
