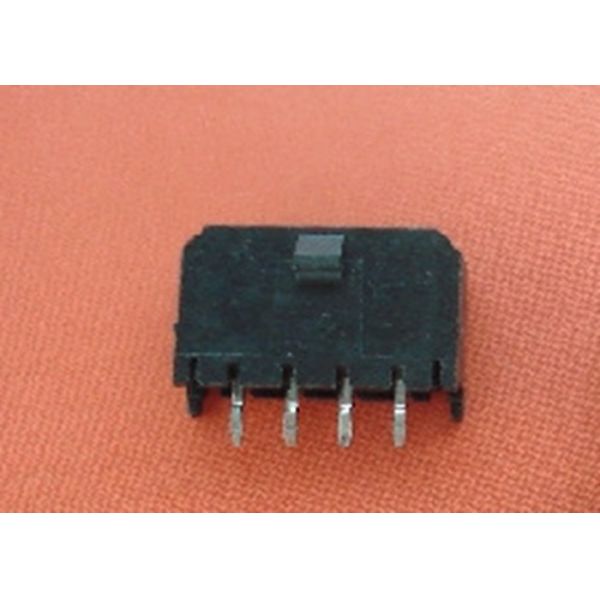

Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header
Specifications
Brand Name :
HRT
Model Number :
C3030WV-F-NP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
USD0.001 to 0.005 per pcs
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
1.5 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Tube(pipe) with outside paper carton
Color :
Black
Pitch :
3.0mm
Wafer materials :
PBT, UL94V-0
Wire range :
AWG24# to 20#
Packaging Type :
Tube(Pipe)
Suitable housing :
C3030HF series single row
Description

3.0mm pitch single row wafer connector vertical type PCB board connector PBT material

1, Detailed specification of product:

Detailed information

Basic information

 Type Wafer connector
Gender Female
Circuits 2 to 12 positions
Insulation O.D. 1.85mm(max)
Mating lock With
Pin materials Brass or tin-plated
Wafer material PBT,UL94V-0
Matched housing C3030HF single row series
Mounting type Vertical
Application Power, wire to wire
Terminal materials Phosphor bronze
Finish terminal Tin-plated or gold-flash type
Terminal Package 10K pcs/reel
Terminal processing method E-stamping before tin-plated

Electrical properties

 Current Rating 5A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 10mΩ Max
Insulation Resistance 1000mΩ Min
Withstanding Voltage 1500V AC/minute

Mechanical properties

 Temperature range -25℃ to 85 ℃
Terminal Insertion Force 1.50kgf (Max.)
Terminal/Housing Retention Force

2.50kgf (Min.)
Pin Retention Force 1.50kgf (Min.)
Latch Yield Strength 7.0kgf (Min.)
Other information please kindly check the following picture.

2, Introduction for this series products

Please kindly notice that the C3030 series product, you can buy it as a set, then we will offer you reasonable price.

C3030 series product
Terminal C3030F-T-A and C3030M-T
Connector Male housing C3030HF-NP & C3030HF-2XNP &C3030HFA-2XNP
Female housing C3030HM-NP & C3030HMA-NP &C3030HM-2XNP & C3030HMA-2XNP

Wafer

 Vertical type C3030WV-F-NP &C3030WV-F-2XNP
Right angle type C3030WR-F-XP & C3030WR-F-2XNP

Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header

3,Corresponding engineering drawing & test report

Below file is our engineering drawing and testing report for further information. It's sure that it will be a

good reference for you to know this series parts clearly.

Drawing of dimension

Single Row 3.0mm Pitch Wafer Connector, for Molex 43045 Male Connector Shrouded Header

Test report

Electrical Performance

Test Description Procedure Requirement
4-1

Contact Resistance

 Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 10mΩ (Max.)
4-2 Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
4-3 Dielectric Withstanding Voltage Mate connectors, apply 1500V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.), 10mA. 5mΩ (Max.)

Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits At Initial Circuits At Initial
Insertion (Max.) Withdrawal (Min.) Insertion (Max.) Withdrawal (Min.)
Single 0.50 0.20 10 6.80 2.35
02 1.20 0.35 11 7.50 2.60
03 1.90 0.60 12 8.20 2.85
04 2.60 0.85 14 9.60 3.35
05 3.30 1.10 16 11.00 3.85
06 4.00 1.35 18 12.40 4.35
07 4.70 1.60 20 13.80 4.85
08 5.40 1.85 22 15.20 5.35
09 6.10 2.10 24 16.60 5.85

4, FAQ

Q:Do you allow multiple design per setup?
A:Yes.We accept OEM service and allow multiple design per setup.

Q:How long does shipping take?
A:It depends on the destination location and quantity. In most developed world, delivery by Fed x/UPS/DHL is normally 2-3 days(excluding weekends).

Q: How is the goods packaged ?
A: Usually in vacuum packages and carton box.

5, Payment and delivery terms

We can offer multiple and flexible payment and delivery terms to save your money & shipping time. I hope

we have long-term & firm business relationship and personal friendship
