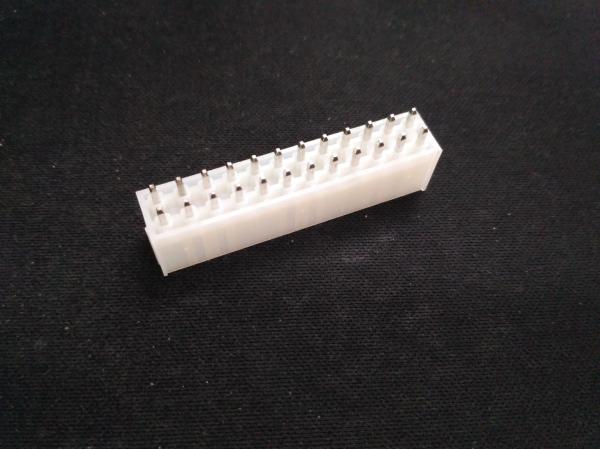

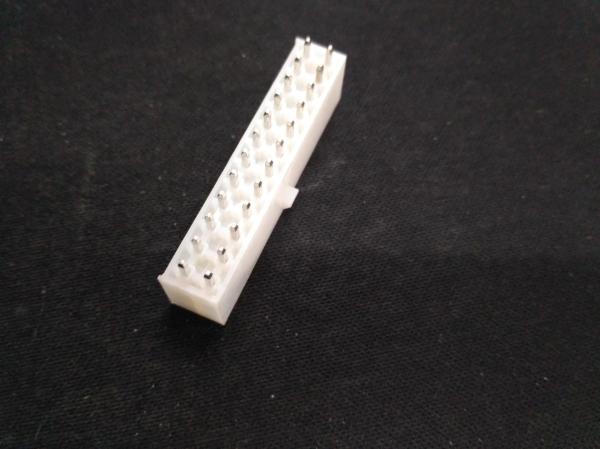

Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing
Specifications
Brand Name :
HRT
Model Number :
C4255WV-2XNP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000pcs
Price :
negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28000K pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Reel, Tube(Pipe), Tape, Bag or as required
Category :
Wafer
Row No. :
Double
Locking structure :
With
Wire range :
AWG26# to 22#
Application :
Power, wire to board
Matched housing :
C4255HF series dual row
Description

1, Detailed specification of product:

1. Basic information:

  • Color: White
  • Housing Material: PA66
  • Flammability: 94V-0/2
  • Pin material: Brass or tin-plated
  • Pitch: 4.20 mm
  • Circuits: 24 positions
  • Insulation O.D.: 3.10mm
  • Mounting type: Vertical top entrance
  • Terminal materials: Phosphor bronze/Brass
  • Finish terminal: Tin-plated type


2. Electrical characteristic:

  • Current Rating: 9A AC DC
  • Voltage Rating: 600V AC, DC
  • Contact Resistance: 10mΩ Max
  • Insulation Resistance: 1000mΩ
  • Withstanding Voltage: 1500V AC/minute


3. Mechanical characteristic:

  • ​​Temperature Range:-25°C ~+85°C
  • Terminal Insertion Force: 1.50kgf (Max.)
  • Terminal/Housing Retention Force: 3.00kgf (Min.)
  • Pin Retention Force: 3.00kgf (Min.)
  • Latch Yield Strength:7.0kgf (Min.)
  • Panel Mount Retention Force: 16.0kgf (Min.)


Other detailed data please check the pictures as below.

2, Related engineering drawing and testing report
The attached picture is our standard engineering drawing and report for your reference, it will help you to
know our product feature, then you can choose the right models.

Dimension drawing
Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing Double Row Wafer Connector PCB Borad In Connector 9A AC / DC With PA66 Material Housing

Environmental Performance And Others

Test DescriptionProcedureRequirement
6-1Temperature RiseCarrying rated current load.(Based upon UL 498)30℃(Max.)
6-2Heat Resistance85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

Appearance No Damage.
Contact Resistance 20mΩ (Max.)

6-3Cold Resistance-25±3℃,96 hours (Based upon JIS C0020)
6-4Humidity

Temperature: 40±2℃
Relative Humidity : 90~95%
Duration: 96 hours
(Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

Appearance No Damage.
Contact Resistance 20mΩ (Max.)
Insulation Resistance 100MΩ (Min.)
Dielectric Withstanding Voltage Must meet 4-3

6-5Temperature Cycling

5 cycles of:
a) -55℃ 30 minutes
b) +85℃ 30 minutes
(Based upon JIS C0025)

Appearance No Damage.
Contact Resistance 20mΩ (Max.)

6-6Salt SprayTin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B)
6-7SO2 Gas

24 hours exposure to 50±5ppm.
SO2 gas at 40±2℃.

6-8NH3 Gas40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.



3, Introduction for this series products


Please kindly notice that the C4255 series product, you can buy it as a set, then we will offer you reasonable price.

1, Terminals:C4255F-T and C4255M-T

2, Housing: Single row type;C4255HF-NP & C4255HMNP & C4255HMA-NP
Dual row type;C4255HF-2XNP & C4255HM-2XNP & C4255HMA-2XNP

3.Wafer: single row type:C4255WV-NP & C4255WR-NP & C4255WR-F-NP
Dual row type:C4255WV-2XNP &C4255WR-2XNP & C4255WR-F-2XNP

4, FAQ
1) What's the delivery time?
Usually 5-8 days after payment received, longer for large order.
2) What’s the payment term?
Our payment terms: T/T, PayPal, Western Union, Moneygram, L/C, etc.
3) What's the shipping way?
Via DHL, FedEx, EMS, UPS, by air, by sea...etc.
4) Do you have after-sales service?
Yes. 8 hours online service
5) What is your guarantee for the goods?
We will replace 1:1 for the defective goods after sales.12 months guarantee after manufacturing.
