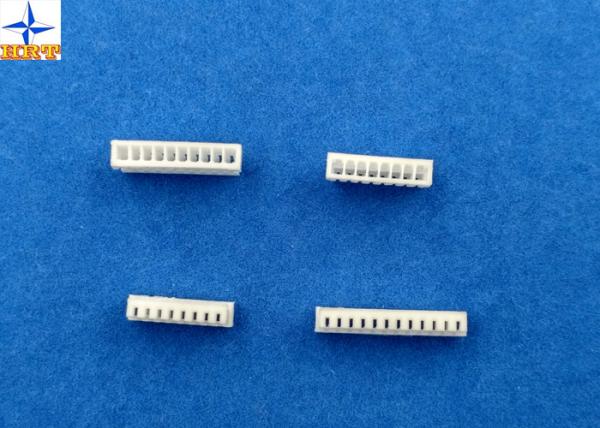

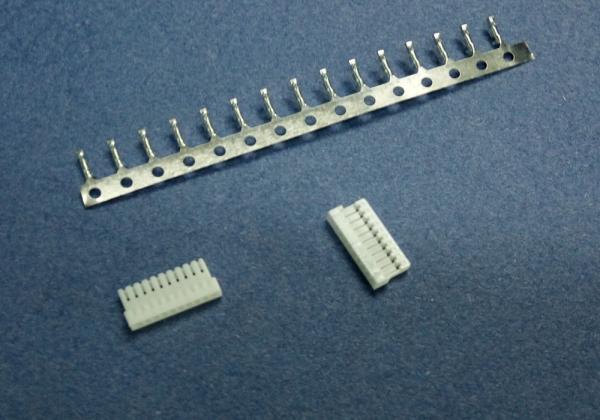

White Wire Board Connector With Phosphor Bronze 1mm Without Mating Lock
White Wire Board Connector With Phosphor Bronze 1mm Without Mating Lock
White Wire Board Connector With Phosphor Bronze 1mm Without Mating Lock
White Wire Board Connector With Phosphor Bronze 1mm Without Mating Lock
Specifications
Brand Name :
HRT
Model Number :
A1005H-NP-K
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
Negotiation
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
1000K pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Bag with outside carton
color :
white
pitch :
1.00mm
material :
PA66 UL94V-0;Phosphor Bronze
wire range :
AWG28# to 32#
Environmental Protection Class :
Halogen Free(HF)
Description

Gold-Plated Terminal Circuit Wire Connectors Pitch 1.0mm Housing With PA66 Materials

1, The specification of the product including basic size information, electrical and mechanical properties.

Basic size information
Circuits from 2pins to 20pins
Pitch 1.0mm
Mating lock without
Halogen free PA66 UL94V-0
Wire Insulation Diameter 0.80mm max.
Electrical properties
Current Rating: 1A AC, DC
Voltage Rating 50V AC, DC
Contact Resistance: 20mΩ Max
Insulation Resistance: 100mΩ min
Withstanding Voltage: 500V AC/minute
Mechanical properties
Temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.

2, Related drawing and report

White Wire Board Connector With Phosphor Bronze 1mm Without Mating Lock


3, Application fied of these product

This product are widely used in household appliance, computer, communication device. Because we can controll NPL ratio under 1.15%, so our parts are accepted by famouse and international company like TPV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.

4, we can offer multiple, safe and fast shippment for you!

We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. Choose us! Let's connect the realistic and electronic world.
