1.50mm Pitch Single Row 6 Pin Crimp Connector Battery Connectors for AWG24# To 30# wire harnesses
1.50mm Pitch Single Row 6 Pin Crimp Connector Battery Connectors for AWG24# To 30# wire harnesses
1.50mm Pitch Single Row 6 Pin Crimp Connector Battery Connectors for AWG24# To 30# wire harnesses
1.50mm Pitch Single Row 6 Pin Crimp Connector Battery Connectors for AWG24# To 30# wire harnesses
1.50mm Pitch Single Row 6 Pin Crimp Connector Battery Connectors for AWG24# To 30# wire harnesses
1.50mm Pitch Single Row 6 Pin Crimp Connector Battery Connectors for AWG24# To 30# wire harnesses
1.50mm Pitch Single Row 6 Pin Crimp Connector Battery Connectors for AWG24# To 30# wire harnesses
1.50mm Pitch Single Row 6 Pin Crimp Connector Battery Connectors for AWG24# To 30# wire harnesses
1.50mm Pitch Single Row 6 Pin Crimp Connector Battery Connectors for AWG24# To 30# wire harnesses
1.50mm Pitch Single Row 6 Pin Crimp Connector Battery Connectors for AWG24# To 30# wire harnesses
Specifications
Brand Name :
HRT
Model Number :
A1505H-NP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
USD0.001 to 0.5 per pcs
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
bag with outside paper carton
Color :
White;Black
Pitch :
1.50mm
Circuits :
6pins
Wire range :
AWG24# to 30#
Suitable terminals :
A1505T series
Mating lock :
None
Description

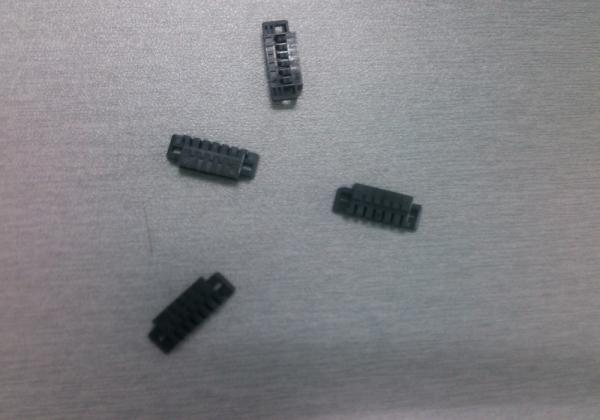

battery terminal connectors with 1.5mm pitch wire housing HRT brand A1505H-NP

1, Specification of the product

Basic size information
Flammability UL94V-0
Terminal material phosphor bronze; gold-flashed
Row Single
Material Nylon66
Wire Insulation Diameter 1.20mm Max.
Part No. A1505H-06P
Electrical properties
Current Rating 3A AC, DC
Voltage Rating 50V AC, DC
Contact Resistance 20mΩ Max
Insulation Resistance 500mΩ min
Withstanding Voltage 500V AC/minute
Mechanical properties
Temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.

2, Related drawing and report

1.50mm Pitch Single Row 6 Pin Crimp Connector Battery Connectors for AWG24# To 30# wire harnesses

Environmental Performance And Others

Test Description Procedure Requirement
6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)
6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
6-4 Humidity

Temperature: 40±2℃

Relative Humidity : 90~95%

Duration: 96 hours

(Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

Insulation Resistance 50MΩ (Min.)

Dielectric Withstanding Voltage Must meet 4-3
6-5 Temperature Cycling

5 cycles of:

a) -55℃ 30 minutes

b) +85℃ 30 minutes

(Based upon JIS C0025)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)
6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B)
6-7 SO2 Gas

24 hours exposure to 50±5ppm.

SO2 gas at 40±2℃.
6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.
6-9 Solderability

Soldering Time: 5±0.5 sec.

Solder Temperature: 245±5℃

 Solder Wetting 95% of immersed area must show no voids, pin holes
6-10

Resistance to Soldering Heat

(DIP)

Solder pot method

Soldering time: 10±0.5 sec.

Solder Temperature: 260±5℃

Solder iron method

Soldering Time: 5±0.5 sec.

Solder Temperature: 370℃ ~ 400℃

 Appearance No Damage.
6-11 Resistance to Soldering Heat (SMT)

When reflowing

Refer to paragraph 8

Solder iron method

Soldering Time: 5±0.5 sec.

Solder Temperature: 370℃ ~ 400℃

 Appearance No Damage.

3, Our service

Please kindly check the following informaion, it will help you to pay money and get right parts in a short time.

- Payment Terms: Paypal, Western Union, Money Gram, T/T


- Warranty: 100% quality tested, 12 months guarantee, 1:1 replacement for faulty goods, defective rate<1%


- Lead Time: 3-7 working days for normal orders


- Shipping: By express or by sea


- Free sample order and customized designs are available.

4, How to contact us

You can contact us by Email, Telephone, Skype, Whats app, Wechat & Cellphone. Please contact us freely.
