Specifications
Brand Name :
HRT
Model Number :
C6350HM-3XNP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
1000 pcs
Price :
USD0.001 to 0.5 per pcs
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Bage with outside paper carton
Color :
White
Pitch :
6.35mm
Wafer materials :
PA66, UL94V-0/2
Wire range :
AWG14# to 20#
Packaging Type :
Bag
Terminal material :
Brass
Description

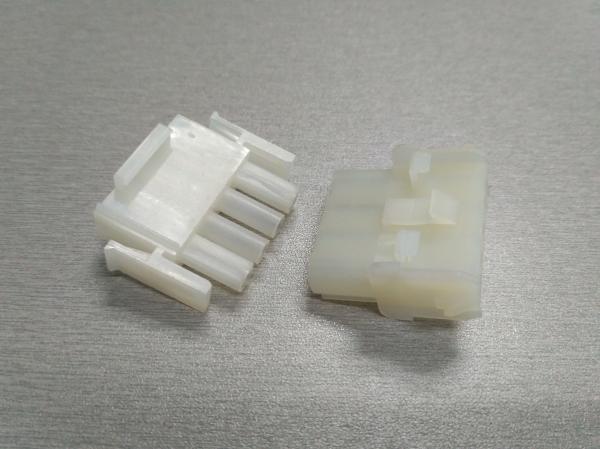

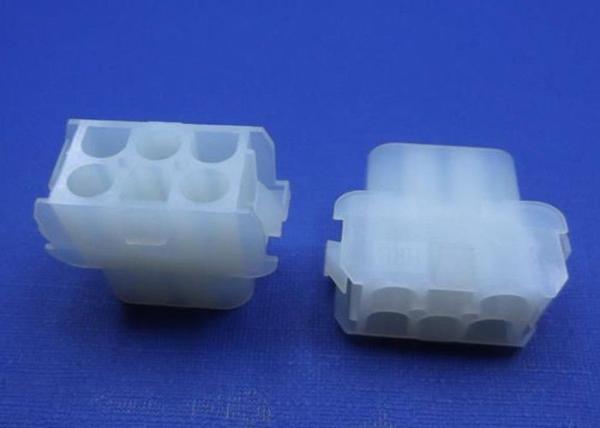

6.35mm pitch wire to wire connector triple row housing power connector with lock C6350HM

1, Detailed specification table of product

Detailed information

Basic information

 Type Housing
Gender Female
Application Power, wire to wire
Circuits 6,9,12,15 positions
Insulation O.D. 3.30mm(max)
Mating lock With
Terminal materials Brass material, tin-plated finish
Terminal Package 4000pcs/reel
Terminal processing method E-stamping before tin-plated
Suitable terminal C6350M
Suitable housing C6350HF three rows housing
Electrical properties Current Rating 15A AC, DC
Voltage Rating 600V AC, DC
Contact Resistance 3.5mΩ Max
Insulation Resistance 1000mΩ Min
Withstanding Voltage 5000V AC/minute
Mechanical properties Temperature range -25℃ to 85 ℃
Terminal Insertion Force 2.30kgf (Max.)
Terminal/Housing Retention Force

3.00kgf (Min.)
Pin Retention Force 1.80kgf (Min.)
Latch Yield Strength 16.0kgf (Min.)
Other information please kindly check the following picture.

2, Introduction for this series products

Please kindly notice that the C6350 series product, if you can buy this product as a set, the price will be very reasonale and favorable.

1, Terminals:C6350F-T and C6350M-T

2, Housing: Male housing type C6350HF-NP & C6350HF-3XNP
Female housing type C6350HM-NP & C6350HM-3XNP

3, Corresponding engineering drawing & test report

Below file is our engineering drawing and testing report for further information. It's sure that it will be a

good reference for you to know this series parts clearly.

Dimension drawing

Three Rows 6.35mm Power Splitter Cable , PA66 UL94V-0/2 Housing Female Connector

Three Rows 6.35mm Power Splitter Cable , PA66 UL94V-0/2 Housing Female Connector

4,FAQ

1) What's the delivery time?
Usually 5-8 days after payment received, longer for large order.

2) What’s the payment term?
Our payment terms: T/T, PayPal, Western Union, Moneygram, L/C, etc.

3) What's the shipping way?
Via DHL, FedEx, EMS, UPS, by air, by sea...etc.

4) Do you have after-sales service?
Yes. 8 hours online service

5) What is your guarantee for the goods?
We will replace 1:1 for the defective goods after sales.12 months guarantee after manufacturing.

5, Our product family show

Please kindly look the next picture, you can know our product range by an easy way. Our main product are wire housing, wire to board connectoor, wire to wire connector, board-in connectors, FPC/FFC connectors and more. We also can controll defective rate in a low value, so our parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.

6, Delivery & Payment Way

We can offer multiple delivery way for you, it will let you to recieve our part in a short time. Besides, flexible payment terms are available to save the commision charges both for us.
