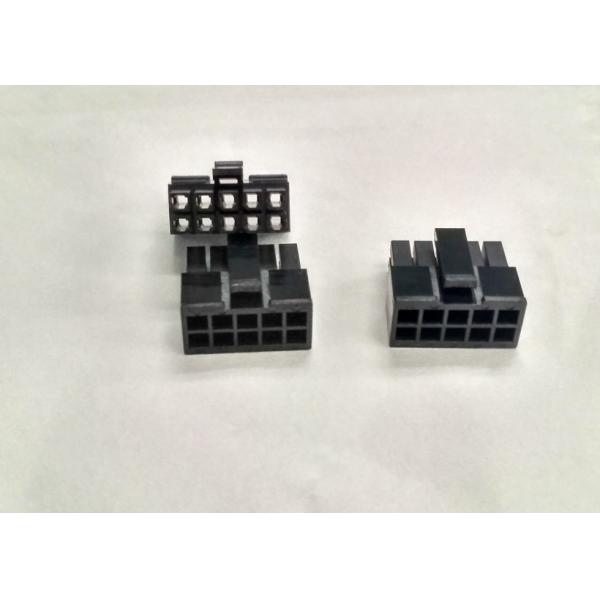

Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
Specifications
Brand Name :
HRT
Model Number :
C3030HF-2XNP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
Negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
20 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Bag with outside carton
Category :
Power cable connector
Suitable terminals :
C3030F series
Flammability :
UL94V-0/2
Material :
PA66
Positions :
2 to 24 circuits
Gender :
Female
colour :
black
Description

1, Detailed information of product feature

Basic dimension information
Application Power, wire-to-wire
Pitch 3.00mm
Color black
Row Dual/Double
Bump Without
Wire range AWG22# to 24#
Wire insulation diameter 1.85mm Max
Terminal materials Phosphor bronze material, tin-plated or gold-flash finish
Electrical properties
Current Rating 3.0A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 10mΩ Max
Insulation Resistance 500mΩ min
Withstanding Voltage 1500V AC/minute
Mechanical properties
Temperature range -25℃ to 85 ℃
Terminal Insertion Force 1.50kgf (Max.)
Terminal/Housing Retention Force 2.50kgf (Min.)
Pin Retention Force 1.50kgf (Min.)
Latch Yield Strength 7.0kgf (Min.)
Other information please kindly check the following picture.


2, Related drawing and report
Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.
Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing

4, FAQ
Q: Can we have our own brand packaging? How?
A: Yes,we have designer in house to meet customized packaging requirment, all you have to do is let us know your idea or demands.
Q: Does your products print exactly the same as original?
A: Compatible products were known for its favourable prices and accurate size as originals.
Q: What is your MOQ for sample order?
A: All size sample orders are welcome.we do understand your idea to increase order gradually.
Q: What about guarantee?
A: One on one exchange for defectives exceed our guarantee rate.
