Specifications
Brand Name :
HRT
Model Number :
A1016
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
China
MOQ :
20 KPCS
Price :
Negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
1000 pcs per day
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
paper tray with out carton
Part NO. :
A1016-TPE A1016-GPE Terminal
Pitch :
1.00mm
Wire range :
AWG#30-#32
Material :
Phosphor bronze
Finish :
Tin-plated or Gold- flash
Fire-protection rating :
UL 94V-0
Insulation :
0.8mm(Max)
Description

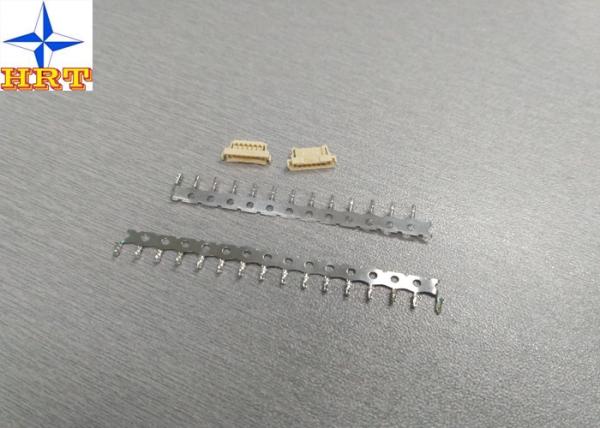

Wire to board Connectors pitch 1.00mm Phosphor bronze TIn-plated or Gold-finish

Description:

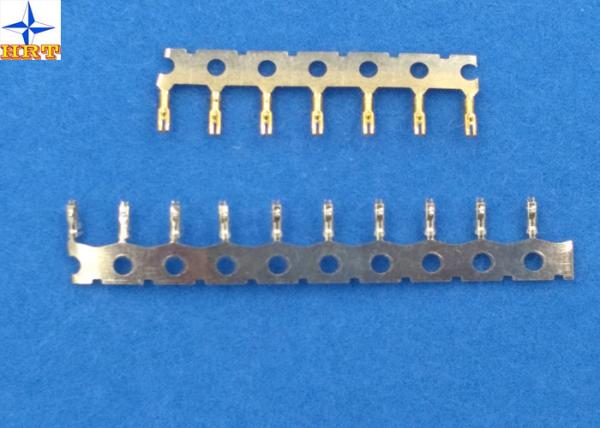

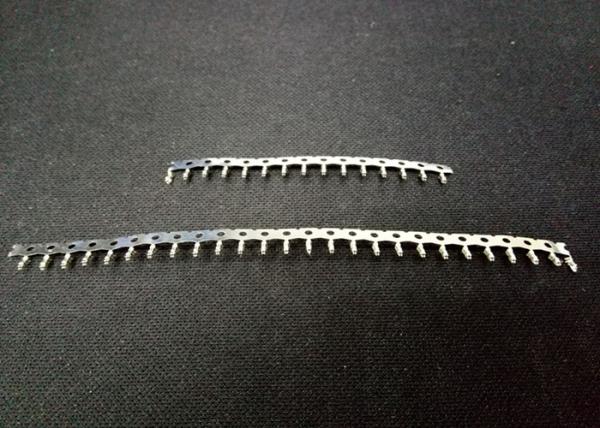

1. A1016 series Terminals are stamped by Phosphor Bronze, E-Stamping before Tin-plated or Gold-flash ,Tin-plated we calling A1016-TPe, Gold-plated we calling A1016-GPe , Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.

2. Terminals' wire range :AWG #30--#32,insulation OD is0.8mm(Max).

3. A1016 series Terminal used in A1016 series Housing

Actuator Insertion/Withdrawal Force

Wire To Board Connectors Pitch 1.00mm , Wire Terminal Connectors Phosphor Bronze

Test Description Procedure Requirement

Contact Resistance

 Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 20mΩ (Max.)
Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
Dielectric Withstanding Voltage Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)) No Breakdown.
Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 5mΩ (Max.)

Electrical:

Current rated
1A AC/DC maximum
Voltage rated 60V AC/DC
Withstand voltage 600V AC/minute
Insulation resistance 100MΩ min
Contact resistance 20MΩ max
Operating temperature -25 - 85°C

Quality:

The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.

1. Manufactured under strict controls.

2. ISO 9001:2008

3. UL Certification

4. Reach Cetitifaction

5. RoHS compliance

6. OEM for PULSE

7. Active Environmental policy

8. Every module tested 3times (not just batch tested)

Drawing :

Wire To Board Connectors Pitch 1.00mm , Wire Terminal Connectors Phosphor Bronze

Service:

Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .

HRT Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design

2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

3. time.

4. Free Samples:10~20 PCS of each part number

5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

6. Customer complaint:24-48 hours reply 8D report

7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement, or repair

8. kits if customers are not satisfied)
