Specifications
Brand Name :
HRT
Model Number :
A2211H2XNP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Bag with outside carton
Color :
white
Pitch :
2.00mm
Material :
PA66
Flammability :
UL94V-0
Wire range :
AWG28# to 22#
Row :
dual
Description

Dual Row 2.00mm Pitch Connector Wire To Board Connectors Crimping Housing

1, The specification of the product including basic size information, electrical and mechanical properties.

Basic size information
Suitable terminals A2211 series
Mating lock without
Wire Termination Method crimping
Circuits 4 to 40 pins
Wire Insulation Diameter 1.40mm Max.
Mounting side standard on-Board
Terminals material phosphor bronze; tin-plated finish
Terminal handling method E-stamping before tin-plated
Electrical properties
Current Rating 2A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 30mΩ Max
Insulation Resistance 1000mΩ min
Withstanding Voltage 800V AC/minute
Mechanical properties
Operating temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.

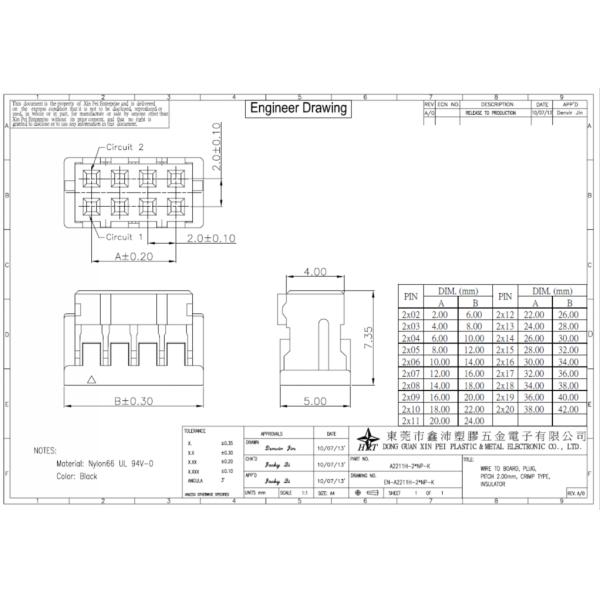

2, Related drawing and report

Dual Row 2.00mm Pitch for HRS DF11 Connector Wire To Board Connectors Crimping Housing

Mechanical Performance

Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#22 4.0kgf (Min)
AWG#24 3.0kgf (Min)
AWG#26 2.0kgf (Min)
AWG#28 1.0kgf (Min)
AWG#30 0.8kgf (Min)
5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50kgf (Max.)
5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 1.50kgf (Min.)
5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 1.50kgf (Min.)
5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 40mΩ (Max.)
5-7 Vibration

Amplitude: 1.5mm P-P

Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

Discontinuity 1 μsec.(Max.)
5-8 Physical Shock 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)

Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits At Initial Circuits At Initial
Insertion (Max.) Withdrawal (Min.) Insertion (Max.) Withdrawal (Min.)
Single 0.50 0.05 2x 11 5.40 2.40
2x02 1.40 0.50 2x 12 5.80 2.60
2x03 1.80 0.80 2x 13 6.20 2.80
2x04 2.20 1.00 2x 14 6.60 3.00
2x05 2.60 1.20 2x 15 7.00 3.20
2x06 3.00 1.40 2x 16 7.40 3.40
2x07 3.40 1.60 2x17 7.80 3.60
2x08 3.80 1.80 2x18 8.20 3.80
2x09 4.20 2.00 2x19 8.60 4.00
2x10 5.00 2.20 2x20 9.00 4.20


3, Main customer

Our product are developed for PDP, LCD, or small electronics equipment. The parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare etc because of its' low NPL ratio. By the way, the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.

Dual Row 2.00mm Pitch for HRS DF11 Connector Wire To Board Connectors Crimping Housing

4, Our service

MOQ: If have stock, according to the smallest package. If not, according to the produce MOQ.

R&D ability:ODM&OEM is avaiable. We also can help you design molds and produce products.

Delivery time: 5 to 8 days according to your order amount.

Quality Control: Original connector or replace connector we'll be 100% inspected before

dispatching.

Package:PE Bag or Nylon Bag with Carton or as required
