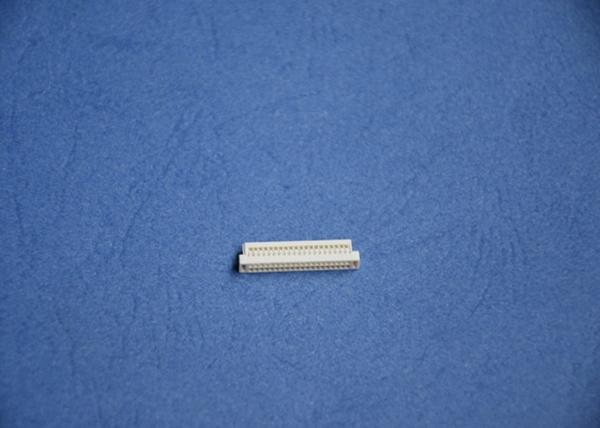

Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Specifications
Brand Name :
HRT
Model Number :
A1004H-2XNP-2
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
USD0.001 to 0.005 per pcs
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Tube(pipe) with outside paper carton
Color :
White
Pitch :
1.0mm
Wafer materials :
Nylon46, UL94V-0
Wire range :
AWG32# to 28#
Packaging Type :
Bags
Suitable terminal :
A1004 series
Description

1, Detailed specification of product

1.Basic information:

  • Color: White
  • Housing Material: Nylon46
  • Flammability: 94V-0
  • Pitch: 1.00mm
  • Circuits: 20 30 40positions
  • Insulation O.D.: 0.80mm
  • Mounting type: wire to board
  • Application: Signal, wire to board
  • Terminal materials: Phosphor bronze
  • Finish terminal: gold-flash type
  • Terminal Package: 15K pcs/reel
  • Suitable terminal: A1004 series
  • Terminal processing method: E-stamping before tin-plated


2. Electrical characteristic:

  • Current Rating: 1A AC DC
  • Voltage Rating: 50V AC, DC
  • Contact Resistance: 20mΩ Max
  • Insulation Resistance: 100mΩ
  • Withstanding Voltage: 500V AC/minute


3. Mechanical characteristic:

  • ​​Temperature Range:-25°C ~+85°C
  • Terminal Insertion Force: 0.50kgf (Max.)
  • Terminal/Housing Retention Force: 0.50kgf (Min.)
  • Pin Retention Force: 0.50kgf (Min.)


Other detailed data please check the pictures as below.


2, Introduction for this series products

Please kindly notice these series product, you can buy it as a set, then we will offer you reasonable price.

A1004 series product
Terminal A1004-T
Housing Dual rows type A1004H-2XNP & A1004-2XNP-1 & A1004-2XNP-2


3,Corresponding engineering drawing & test report
Below file is our engineering drawing and testing report for further information. It's sure that it will be a
good reference for you to know this series parts clearly.

Drawing of dimension
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump
Dual Row Wire To Pcb Connectors 1.0mm Pitch Connector A1004H Housing With Bump

Environmental Performance And Others

Test Description Procedure Requirement
6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)
6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
6-4 Humidity

Temperature: 40±2℃

Relative Humidity : 90~95%

Duration: 96 hours

(Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

Insulation Resistance 10MΩ (Min.)

Dielectric Withstanding Voltage Must meet 4-3
6-5 Temperature Cycling

5 cycles of:

a) -55℃ 30 minutes

b) +85℃ 30 minutes

(Based upon JIS C0025)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)
6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
6-7 SO2 Gas

24 hours exposure to 50±5ppm.

SO2 gas at 40±2℃.
6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.
6-9 Solderability

Soldering Time: 5±0.5 sec.

Solder Temperature: 245±5℃

 Solder Wetting 95% of immersed area must show no voids, pin holes
6-10 Resistance to Soldering Heat

When reflowing

Refer to paragraph 8

Solder iron method

Soldering Time: 5±0.5 sec.

Solder Temperature: 370℃ ~ 400℃

 Appearance No Damage.

7. Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits At Initial
Insertion (Max.) Withdrawal (Min.)
Single 0.20 0.04
2X10 2.50 0.50
2X15 3.75 0.75
2X20 5.00 1.00


4, FAQ
Q: Can we have our own brand packaging? How?
A: Yes,we have designer in house to meet customized packaging requirment, all you have to do is let us know your idea or demands.

Q: Does your products print exactly the same as original?
A: Compatible products were known for its favourable prices and accurate size as originals.

Q: What is your MOQ for sample order?
A: All size sample orders are welcome.we do understand your idea to increase order gradually.

Q: What about guarantee?
A: One on one exchange for defectives exceed our guarantee rate.
