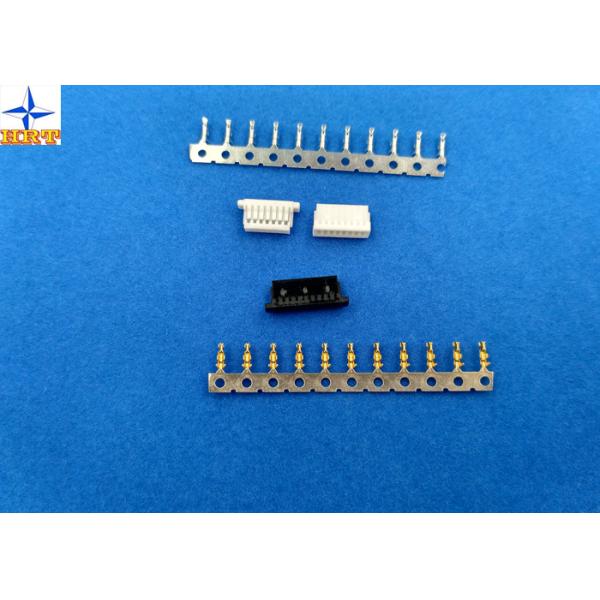

1.0mm pitch Single Row Pcb Wire To Board Connectors, SH connector, SHD connector
1.0mm pitch Single Row Pcb Wire To Board Connectors, SH connector, SHD connector
1.0mm pitch Single Row Pcb Wire To Board Connectors, SH connector, SHD connector
1.0mm pitch Single Row Pcb Wire To Board Connectors, SH connector, SHD connector
1.0mm pitch Single Row Pcb Wire To Board Connectors, SH connector, SHD connector
1.0mm pitch Single Row Pcb Wire To Board Connectors, SH connector, SHD connector
1.0mm pitch Single Row Pcb Wire To Board Connectors, SH connector, SHD connector
1.0mm pitch Single Row Pcb Wire To Board Connectors, SH connector, SHD connector
1.0mm pitch Single Row Pcb Wire To Board Connectors, SH connector, SHD connector
1.0mm pitch Single Row Pcb Wire To Board Connectors, SH connector, SHD connector
1.0mm pitch Single Row Pcb Wire To Board Connectors, SH connector, SHD connector
1.0mm pitch Single Row Pcb Wire To Board Connectors, SH connector, SHD connector
Specifications
Brand Name :
HRT
Model Number :
A1001H-NP-1/-2
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Bag with outside paper carton
Catogery :
wire housing
Gender :
female
Material :
PBT UL94V-0 or PA66 UL94-V0
Wire range :
AWG28# to 32#
Pitch :
1.00mm
Suitable Wafer :
A1001 series single row
Description

1, The specification of the product including basic size information, electrical and mechanical characteristic.

Basic size information
Circuits from 2pins to 24pins
Color white or black
Material PBT UL94V-0
Halogen free Nylon66 UL 94V-0
Wire Insulation Diameter 0.80mm max.
Electrical characteristic
Current Rating 1A AC, DC
Voltage Rating 50V AC, DC
Contact Resistance 20mΩ Max
Insulation Resistance 100mΩ min
Withstanding Voltage 500V AC/minute
Mechanical characteristic
Temperature range -25℃ to 85 ℃
Other data please kindly check the below pictures.

2, Related drawing and report

1.0mm pitch Single Row Pcb Wire To Board Connectors, SH connector, SHD connector

3, FAQ

1, Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products ?
A: Yes, We have product catalogue. Please contact us on line or send an Email to sending the
catalogue.

2, Q: Do you have a price list ? I need your price list of all your products.
A: We do not have a price list of all of our products. Because we have so many items,and it’s
impossible to mark all of their price on a list. And the price are always changing because of
the producing cost. If you want to check any price of our products, please feel free to contact
us. We will send offer to you soon!

3, Q: I can’t find the product on your catalogue, Can you make this product for me?
A: Our catalogue shows most of our products, but not all. So just let us know what product do you
need , and how many do you want . If we do not have it , we can also design and make a new
mould to produce it. For your reference, making a ordinary mould will take about 35-45days.


4, Q: Can you provide samples? Are the samples free?
A: Yes, we can provide samples. Normally, we provide 5 to 10pcs free samples for testing or quality
checking. But you have to pay for the shipping cost.
