Specifications
Brand Name :
HRT
Model Number :
A1005HA-NP-K
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Reel, Tube(Pipe), Tape, Bag or as required.
Category :
Wire housing
Material :
PA66
Flammability :
UL94V-0
Application :
Signal, wire to board
Gender :
Female
Circuits :
2 to 20 positions
Description

1, Detailed information of product feature

Basic dimension information
Pitch 1.0mm
Color White
Row Single
Mating lock structure With
Wire range AWG28# to 32#
Wire insulation diameter 0.80mm Max
Terminal materials phosphor bronze material, tin-plated or gold -flash finish
Terminal Package 20K pcs/reel
Terminal processing method E-stamping before tin-plated or gold-flash
Matched part A1005-T-K sereis terminal
Electrical properties
Current Rating 1A AC, DC
Voltage Rating 50V AC, DC
Contact Resistance 20mΩ Max
Insulation Resistance 100mΩ min
Withstanding Voltage 500V AC/minute
Mechanical properties
Temperature range -25℃ to 85 ℃
Terminal Insertion Force 0.50kgf (Max.)
Terminal/Housing Retention Force 0.60kgf (Min.)
Pin Retention Force 0.50kgf (Min.)
Other information please kindly check the following picture.

2, Introduction for this series products

Please kindly notice that the A1005 series product, if you can buy this product as a set, the price will be very reasonale and favorable.

A1005 series product
Terminal A1005-T-K & A1005H-T

Connector

 With lock type A1005HA-NP-K & A1005HA-NP & A1005HB-06P & A1005HB-NP-K
Without lock type: A1005H-NP-K & A1005H-NP

3, Related drawing and report
Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.

Dimension drawing

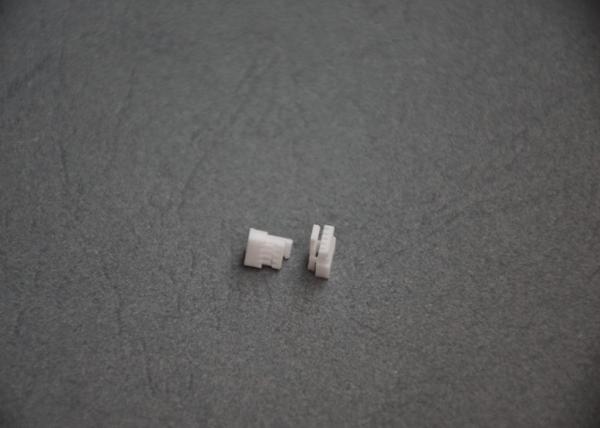

Female Gender 1.0mm Pitch Wire To Board Connectors With Lock, crimp connector, signal connector

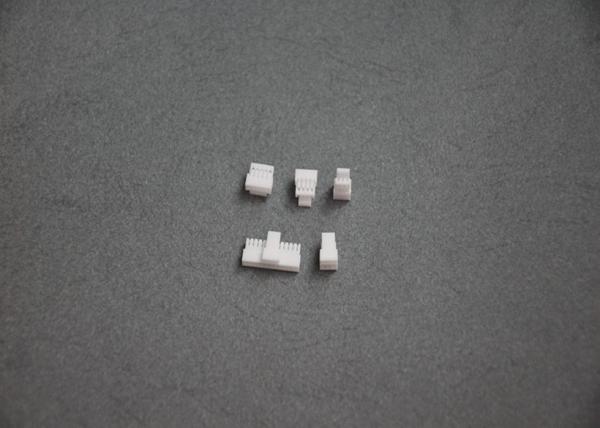

Female Gender 1.0mm Pitch Wire To Board Connectors With Lock, crimp connector, signal connector

Testing report

3. Ratings & Applicable Wires

Item Standard
Rated Voltage (Max.) 50V AC/DC Insulation O.D. 0.80mm (Max.)
Rated Current (Max.) And Applicable Wires AWG#28 1A AC/DC
AWG#30 1A AC/DC
AWG#32 0.5A AC/DC
Ambient Temperature Range -25℃ ~ +85℃*

*: Including terminal temperature rise

4. Electrical Performance

Test Description Procedure Requirement
4-1

Contact Resistance

 Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 20mΩ (Max.)
4-2 Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 100MΩ (Min.)
4-3 Dielectric Withstanding Voltage Mate connectors, apply 500V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 5mΩ (Max.)

5. Mechanical Performance

Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#28 1.0kgf (Min)
AWG#30 0.8kgf (Min)
AWG#32 0.5kgf (Min)
5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 0.50kgf (Max.)
5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 0.60kgf (Min.)
5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 0.50kgf (Min.)
5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 40mΩ (Max.)
5-7 Vibration

Amplitude: 1.5mm P-P

Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

Discontinuity 1 μsec.(Max.)
5-8 Physical Shock 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)


4, Our service
We offer one-stop service from pre-sale, sale to after-sale. It will be a wonderful experiece to work together with us.
