1.00mm pitch wire to board connector single dual row A1001series PBT or PA66 material for Laptop
1.00mm pitch wire to board connector single dual row A1001series PBT or PA66 material for Laptop
Specifications
Brand Name :
HRT
Model Number :
A1001 series
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
China
MOQ :
HSG:5000 pcs, TER: 20000pcs
Price :
Negotiation
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
3000,000set per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Packed in PE bag or tray packaging firstly, and then into cartons, cardboard and waterproof bag added around the door
Product Name :
A1001 series
Application :
Laptop, Monitor, LCD
Size Of Pitch :
1.00mm
Row :
Single/Dual
The Number of Pin :
Single:02 to 20 Pin, Dual:2*05to2*20,2*25,2*30Pin
Material :
HSG:PBT/PA66, TER: Phosphor Bronze, Tin-plated
Environmental Protection Class :
ROHS / Reach /Halogen Free(HF)
Fire-protection rating :
UL 94-V0
Description

1.00mm pitch wire to board connector single dual row 2 to 20 pin for Laptop

5. intruduction

Wire to Board connector 1.00mm pitch housing/wafer/terminal A1001 series

Specifications

 Pitch Size 1.0mm
Current rating 1A AC, DC
Voltage rating 50V AC, DC
Withstanding voltage 500V AC/minute
Contact resistance 20 mΩ Max
Insrlation resistance
100 mΩ Min
Temperature range: -25℃ ~ +85℃
Rated Current (Max.) And Applicable Wire AWG#28 1A AC/DC
Responsive Time AWG#30 1A AC/DC
Panel Life AWG#32 0.5A AC/DC

Mechanical Performance
Test Description Procedure Requirement
Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#28 1.0kgf (Min)
AWG#30 0.8kgf (Min)
AWG#32 0.5kgf (Min)
Terminal Insertion Force. Insert the crimped terminal into the housing. 0.50kgf (Max.)
Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 0.70kgf (Min.)
Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 0.50kgf (Min.)

1.00mm pitch wire to board connector single dual row A1001series PBT or PA66 material for Laptop

Actuator Insertion/Withdrawal Force

1.00mm pitch wire to board connector single dual row A1001series PBT or PA66 material for Laptop
1.00mm pitch wire to board connector single dual row A1001series PBT or PA66 material for Laptop1.00mm pitch wire to board connector single dual row A1001series PBT or PA66 material for Laptop1.00mm pitch wire to board connector single dual row A1001series PBT or PA66 material for Laptop1.00mm pitch wire to board connector single dual row A1001series PBT or PA66 material for Laptop

Description:

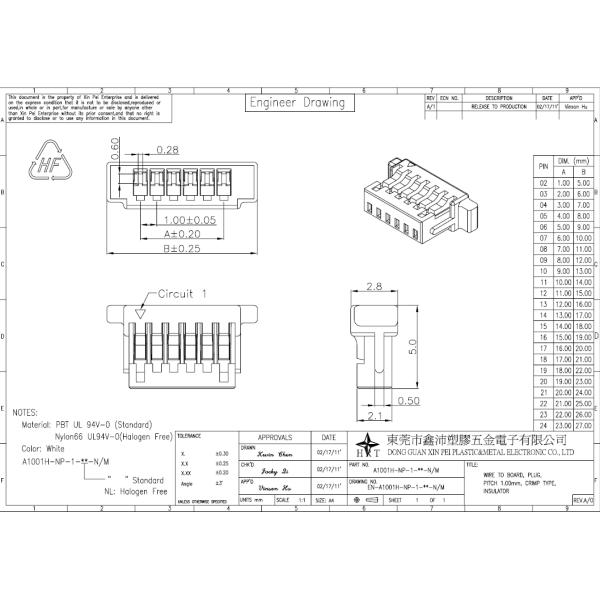

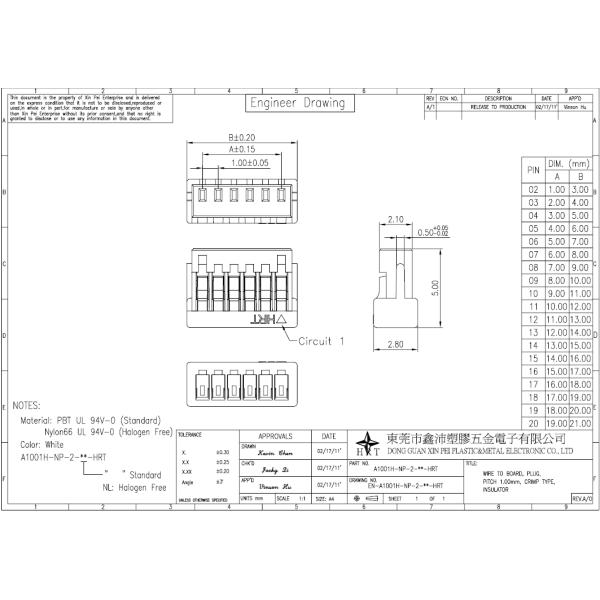

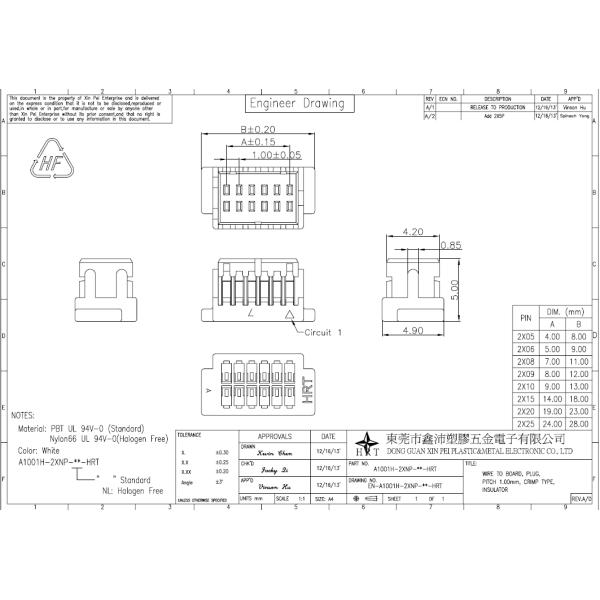

1, A1001series is divided into A1001H-NP-1,(single row housing), A1001H-2*NP, (dual row housing),A1001H-NP-2,(single row without protrusions housing),Terminal:A1001-TPE-A(used in A1001 series housings).

2, Housing used two kinds of raw materials: PBT and PA66(halogen free raw) , Fire-protection rating are both UL 94-V0.Halogen Free products are called:A1001H-NP-1-NL. Minimum packing quantity is 1000pcs/bag.

3. Single row housing from 2pins to 20pins,This product we have two molds and we can produce 50—100KPCS of this product every day. Dual row housing we have 2*15P,2*20P,2*25P three kinds ,The daily production capacity is 30 to 50 KPCS.

4. Terminals are stamped by Phosphor Broze, E-Stamping before Tin-plated or Gold-flash ,Tin-plated we calling A1001-TPe-A, Gold-plated we calling A1001-GPe-A,Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.

5. Terminals' wire range :AWG #28--#32,insulation OD is 0.80mm(Max),The thickness of gold-plating can be customer repuirements.Gold-flash:Au-0.8u, Ni: 20—40u, Gold-plated 3u: Au-3u,Ni:20-40u.

Applications:

This product is mainly used for computer, laptop, LCD screen, TV SET and so on. Mainly used for signal transmission.
