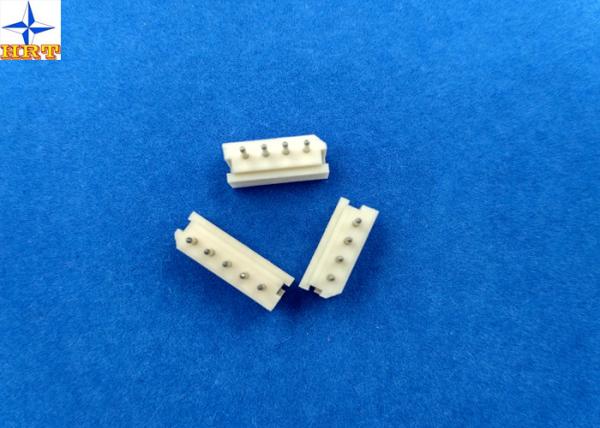

Wire To Board Header Vertical Shrouded Tin Sn Plating Wafer Connector 2.50mm Pitch
Wire To Board Header Vertical Shrouded Tin Sn Plating Wafer Connector 2.50mm Pitch
Wire To Board Header Vertical Shrouded Tin Sn Plating Wafer Connector 2.50mm Pitch
Wire To Board Header Vertical Shrouded Tin Sn Plating Wafer Connector 2.50mm Pitch
Wire To Board Header Vertical Shrouded Tin Sn Plating Wafer Connector 2.50mm Pitch
Wire To Board Header Vertical Shrouded Tin Sn Plating Wafer Connector 2.50mm Pitch
Specifications
Brand Name :
HRT
Model Number :
A2506
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
China
MOQ :
5000 PCS
Price :
Negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
1000 pcs per day
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Carton / Paper pots
Product Name :
A2506WV(WR) Wafer
Pitch :
2.50mm
The Number of pin :
02pin ~16pin
Material :
Wfaer:PA66 Pin: Phosphor Bronzne, Tin-plated
Row :
single
Fire-protection rating :
UL 94V-0
Mates with :
A2506 series Housing
Description

Description:

1, A2506series Wafer have A2506WV-NP A2506WR-NP,DIP type,circlnal PIN,Tin-Plated.

2, Wafer used materials: PA66, Halogen Free Pin: Brass /TIn-plated, Fire-protection rating is UL 94-V0. Minimum packing quantity is 1000pcs/bag.

Reference informations:

Material :PA66, UL94V-0

Pin:Brass/Plated

Mates withA2506series single row housing

Specifications:

Test Description Procedure Requirement

Contact Resistance

 Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 10mΩ (Max.)
Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
Dielectric Withstanding Voltage Mate connectors, apply 1000V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.. 5mΩ (Max.)

Electrical:

Voltage rated 250V AC ,DC
Current rated 3A AC,DC
Withstand voltage 1000VAC/minute
Insulation resistance 1000MΩ Min
Contact resistance 20mΩ Max
Operating temperature -25°C~85°C

Drawing:

Wire To Board Header Vertical Shrouded Tin Sn Plating Wafer Connector 2.50mm Pitch

Wire To Board Header Vertical Shrouded Tin Sn Plating Wafer Connector 2.50mm Pitch

Service:

Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .

HRT Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design

2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

3. time.

4. Free Samples:10~20 PCS of each part number

5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

6. Customer complaint:24-48 hours reply 8D report

7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement, or repair

8. kits if customers are not satisfied)
