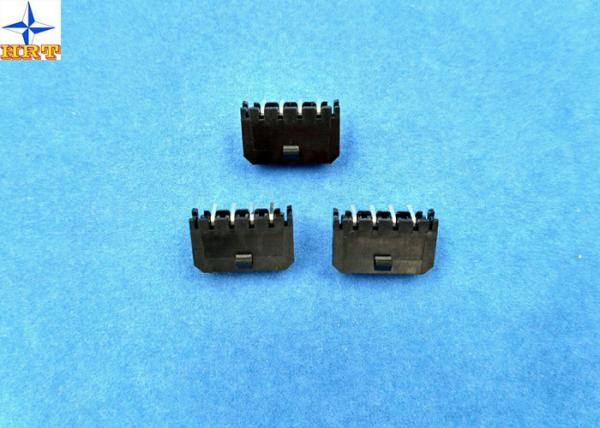

3.00mm Pitch Wire To Wire Connector Right Angle Header With Snap In PCB Lock
3.00mm Pitch Wire To Wire Connector Right Angle Header With Snap In PCB Lock
3.00mm Pitch Wire To Wire Connector Right Angle Header With Snap In PCB Lock
3.00mm Pitch Wire To Wire Connector Right Angle Header With Snap In PCB Lock
3.00mm Pitch Wire To Wire Connector Right Angle Header With Snap In PCB Lock
3.00mm Pitch Wire To Wire Connector Right Angle Header With Snap In PCB Lock
Specifications
Brand Name :
HRT
Model Number :
C3030WR-F-NP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
USD0.001 to 0.005 per pcs
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
1.5 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Tube(pipe) with outside paper carton
Color :
Black
Pitch :
3.0mm
Wafer materials :
PBT, UL94V-0
Wire range :
AWG24# to 20#
Packaging Type :
Tube(Pipe)
Suitable housing :
C3030HF series single row
Description

1, Detailed specification of product:

Detailed information

Basic information

 Type Wafer connector
Gender Female
Circuits 2 to 12 positions
Insulation O.D. 1.85mm(max)
Mating lock With
Pin materials Brass or tin-plated
Wafer material PBT,UL94V-0
Matched housing C3030HF single row series
Mounting type Right angle(90 degree)
Application Power, wire to wire
Terminal materials Phosphor bronze
Finish terminal Tin-plated or gold-flash type
Terminal Package 10K pcs/reel
Terminal processing method E-stamping before tin-plated

Electrical properties

 Current Rating 5A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 10mΩ Max
Insulation Resistance 1000MΩ Min
Withstanding Voltage 1500V AC/minute

Mechanical properties

 Temperature range -25℃ to 85 ℃
Terminal Insertion Force 1.50kgf (Max.)
Terminal/Housing Retention Force

2.50kgf (Min.)
Pin Retention Force 1.50kgf (Min.)
Latch Yield Strength 7.0kgf (Min.)
Other information please kindly check the following picture.

2, Introduction for this series products

Please kindly notice that the C3030 series product, you can buy it as a set, then we will offer you reasonable price.

C3030 series product
Terminal C3030F-T-A and C3030M-T
Connector Male housing C3030HF-NP & C3030HF-2XNP &C3030HFA-2XNP
Female housing C3030HM-NP & C3030HMA-NP &C3030HM-2XNP & C3030HMA-2XNP

Wafer

 Vertical type C3030WV-F-NP &C3030WV-F-2XNP
Right angle type C3030WR-F-XP & C3030WR-F-2XNP

3,Corresponding engineering drawing & test report

Below file is our engineering drawing and testing report for further information. It's sure that it will be a

good reference for you to know this series parts clearly.

Drawing of dimension

3.00mm Pitch Wire To Wire Connector Right Angle Header With Snap In PCB Lock

Mechanical Performance

Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#20 6.0kgf (Min.)
AWG#22 4.0kgf (Min.)
AWG#24 3.0kgf (Min.)
5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50kgf (Max.)
5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 2.50kgf (Min.)
5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 1.50kgf (Min.)
5-6 Latch Yield Strength

Mate connectors and pull apart until both latches break at the speed rate of

25±3mm / minute

 7.00kgf (Min.)
5-7 Panel Mount Retention Force Insert the housing into panel cut out, barbs break at the speed rate of 25±3mm / minute.

Single Row(W-W) 8.0kgf (Min.)

Dual Row(W-W) 16.0kgf (Min.)
5-8 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
5-9 Vibration

Amplitude: 1.5mm P-P

Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.

Contact Resistance 20mΩ (Max.)

Discontinuity 1 μsec.(Max.)
5-10 Physical Shock 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)

Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits At Initial Circuits At Initial
Insertion (Max.) Withdrawal (Min.) Insertion (Max.) Withdrawal (Min.)
Single 0.50 0.20 10 6.80 2.35
02 1.20 0.35 11 7.50 2.60
03 1.90 0.60 12 8.20 2.85
04 2.60 0.85 14 9.60 3.35
05 3.30 1.10 16 11.00 3.85
06 4.00 1.35 18 12.40 4.35
07 4.70 1.60 20 13.80 4.85
08 5.40 1.85 22 15.20 5.35
09 6.10 2.10 24 16.60 5.85
