1.25mm Pitch right angle Wafer Connector, DF14 wire connector, side entry type shrouded header
1.25mm Pitch right angle Wafer Connector, DF14 wire connector, side entry type shrouded header
1.25mm Pitch right angle Wafer Connector, DF14 wire connector, side entry type shrouded header
1.25mm Pitch right angle Wafer Connector, DF14 wire connector, side entry type shrouded header
1.25mm Pitch right angle Wafer Connector, DF14 wire connector, side entry type shrouded header
1.25mm Pitch right angle Wafer Connector, DF14 wire connector, side entry type shrouded header
1.25mm Pitch right angle Wafer Connector, DF14 wire connector, side entry type shrouded header
1.25mm Pitch right angle Wafer Connector, DF14 wire connector, side entry type shrouded header
Specifications
Brand Name :
HRT
Model Number :
A1253WR-SF-NP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
500 K pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Bag with outside carton
Suitable housing :
A1253H
Mounting methods :
Right angle SMT type
Wire Termination Method :
Crimping
Wire range :
AWG28# to 32#
Circuits :
2 to 30 postions
Row :
Single
Description

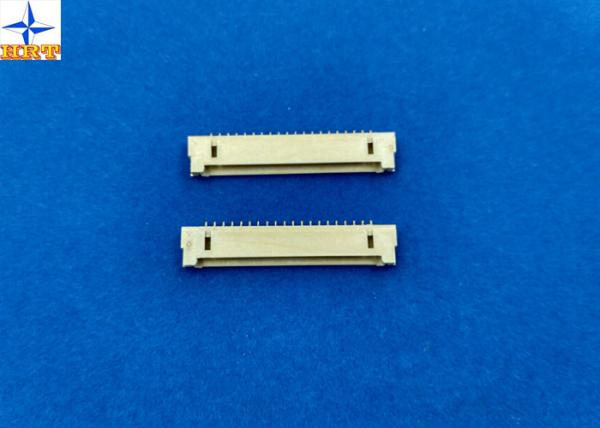

1.25mm Pitch 90 Degree Wafer Connector Max 30 Positions PA9T Material

1, The specification of the product

1.Basic information:

  • Color: Light-yellow
  • Pitch: 1.00mm
  • Material of wafer plastic Nylon9T, UL94V-0
  • Pin material: Brass or tin-plated
  • Solder tabs Brass or tin-plated
  • Circuits: 2 to 30positions
  • Insulation O.D.: 0.90mm
  • Mounting type: SMT
  • Application: Signal, wire to board
  • Terminal materials: Phosphor bronze
  • Finish terminal: Gold-flash ot tin-plated
  • Terminal Package: 15K pcs/reel
  • Terminal processing method: E-stamping before tin-plated


2. Electrical characteristic:

  • Current Rating: 1A AC DC
  • Voltage Rating: 150V AC, DC
  • Contact Resistance: 30mΩ Max
  • Insulation Resistance: 500mΩ
  • Withstanding Voltage: 500V AC/minute


3. Mechanical characteristic:

  • ​​Temperature Range:-25°C ~+85°C
  • Terminal Insertion Force: 0.80kgf (Max.)
  • Terminal/Housing Retention Force: 0.50kgf (Min.)
  • Pin Retention Force: 0.50kgf (Min.)

2, Introduction for this series products

Please kindly notice that the A1253 series product, if you can buy this product as a set, the price will be very reasonale and favorable.

1, Terminals:A1253-T & A1253-T-A

2, Housing: With lock type: A1253H-NP; Without lock type: A1253HA-NP

3, Wafer: Right angle type(90°):A1253WR-S-NP & A1253WR-SF-NP & A1253WRA-S-NP

Vertical type(180°): A1253WVA-S-NP

3, Related engineering drawing and report

Please kindly check the following engineering drawing to confirm the size, wish it's what you really need.

Dimension drawing

1.25mm Pitch right angle Wafer Connector, DF14 wire connector, side entry type shrouded header1.25mm Pitch right angle Wafer Connector, DF14 wire connector, side entry type shrouded header

1.25mm Pitch right angle Wafer Connector, DF14 wire connector, side entry type shrouded header

1.25mm Pitch right angle Wafer Connector, DF14 wire connector, side entry type shrouded header


4, FAQ
Q:Do you allow multiple design per setup?
A:Yes.We accept OEM service and allow multiple design per setup.

Q:How long does shipping take?
A:It depends on the destination location and quantity. In most developed world, delivery by Fed x/UPS/DHL is normally 3-5 days(excluding weekends).

Q: How is the goods packaged ?
A: Usually in bags, tube, pipe, plated & carton

5, Various payment & delivery way

In order to make you get product quickly and send money easily, we can offer differenct payment terms

for you.

Payment Policy

Total value of order(Currency: USD ) Suggested payment terms
Less than USD350 PayPal or Wester Union
Between USD350 and USD500 Western Union
Between USD500 and USD5000 TT
Over USD5000

TT or L/C at sight

The commision fee of TT/PayPal/ Letter of credit will be shared by us together.
