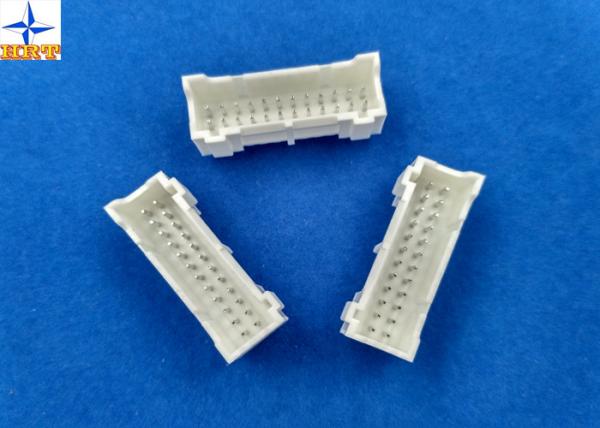

wire to board connector with 2.00mm pitch dual row vertical type wafer connector shrouded header
wire to board connector with 2.00mm pitch dual row vertical type wafer connector shrouded header
wire to board connector with 2.00mm pitch dual row vertical type wafer connector shrouded header
wire to board connector with 2.00mm pitch dual row vertical type wafer connector shrouded header
wire to board connector with 2.00mm pitch dual row vertical type wafer connector shrouded header
wire to board connector with 2.00mm pitch dual row vertical type wafer connector shrouded header
Specifications
Brand Name :
HRT
Model Number :
A2009
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
China
MOQ :
5000 PCS
Price :
Negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
1000 pcs per day
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Carton / Paper pots
Product Name :
A2009WR(WV)-2*NP Wafer
Pitch :
2.00mm
The Number of pin :
2*10PIN 2*12PIN
Material :
wafer: PBT Pin: Brass/Tin-plated
Row :
Dual
Fire-protection rating :
UL 94V-0
Mates with :
A2009 series dual row housing
Color :
white
Description

Pitch 2.00mm wire to board connector 90° or 180 ° dual row wafer with lock wafer connector

Description:

1.A2009series wafer A2009WR-2*NP A2009WV-2*NP

2, Wafer used materials: PTB, Pin : Brass/Tin-plated , Fire-protection rating is UL 94-V0. Minimum packing quantity is 1000pcs/bag.

3. Dual row Wafer we have 2*10P ,2*12P ,The daily production capacity is 30 to 50 KPCS.

4. Attached drawing;

wire to board connector with 2.00mm pitch dual row vertical type wafer connector shrouded header

wire to board connector with 2.00mm pitch dual row vertical type wafer connector shrouded header

Reference informations:

Material :PBT UL94V-0

PIn:Brass/ Tin-plated

Mates withA2009 series dual row housing

Quality:

The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.

1. Manufactured under strict controls.

2. ISO 9001:2008

3. UL Certification

4. Reach Cetitifaction

5. RoHS compliance

6. OEM for PULSE

7. Active Environmental policy

8. Every module tested 3times (not just batch tested)

Test Description Procedure Requirement

Contact Resistance

 Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 20mΩ (Max.)
Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
Dielectric Withstanding Voltage Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)) No Breakdown.
Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 5mΩ (Max.)

Electrical:

Current rated
3A AC/DC maximum
Voltage rated 250V AC/DC
Withstand voltage 800V AC/minute
Insulation resistance 1000MΩ min
Contact resistance 20MΩ max
Operating temperature -25 - 85°C

This product is mainly used in battery ,wire to wire power.

Service:

Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .

HRT Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design

2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

3. time.

4. Free Samples:10~20 PCS of each part number

5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

6. Customer complaint:24-48 hours reply 8D report

7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement, or repair

8. kits if customers are not satisfied)

Machining center
