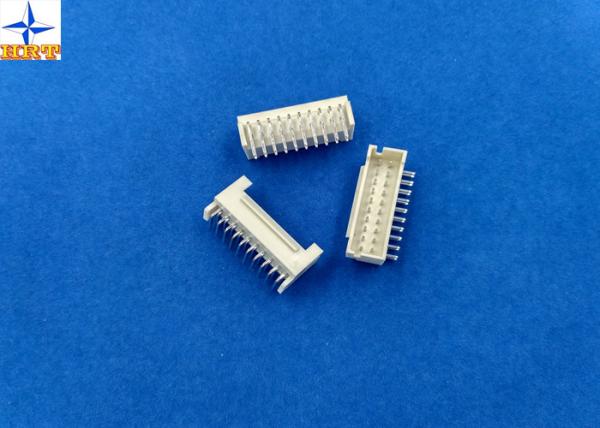

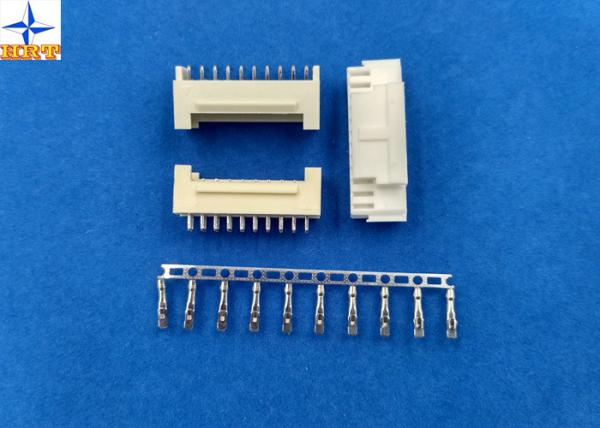

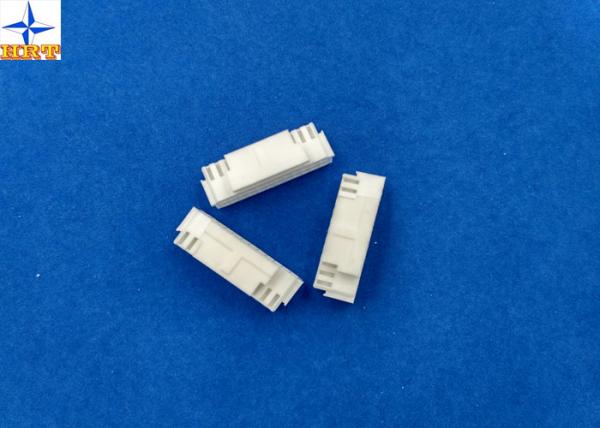

Crimp Dual Row Wire Housing Halogen Free PHB Wire To Board Connector 2.0mm Pitch
Crimp Dual Row Wire Housing Halogen Free PHB Wire To Board Connector 2.0mm Pitch
Crimp Dual Row Wire Housing Halogen Free PHB Wire To Board Connector 2.0mm Pitch
Crimp Dual Row Wire Housing Halogen Free PHB Wire To Board Connector 2.0mm Pitch
Crimp Dual Row Wire Housing Halogen Free PHB Wire To Board Connector 2.0mm Pitch
Crimp Dual Row Wire Housing Halogen Free PHB Wire To Board Connector 2.0mm Pitch
Specifications
Brand Name :
HRT
Model Number :
A2008HB-NP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
500 K pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Bag with outside carton
Color :
White
Pitch :
2.00mm
Suitable terminals :
A2008T series
Suitable wafer :
A2008W series
Flammability class :
UL94V-0
Row number :
Dual/double
Description


1, The specification details

Basic size information
Material PA66
Wire range AWG28# to 22#
Mating lock to part With
Wire Termination Method Crimping
Circuits 12 to 40 pins
Wire Insulation Diameter 1.50mm Max.
Mounting side Standard on-Board
Terminals material Phosphor bronze; tin-plated finish
Electrical properties
Current Rating 3A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 20mΩ Max
Insulation Resistance 1000mΩ min
Withstanding Voltage 1000V AC/minute
Mechanical properties
Operating temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.


2, Related demission drawing & teting report

Crimp Dual Row Wire Housing Halogen Free PHB Wire To Board Connector 2.0mm Pitch

Testing report

5. Mechanical Performance

Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#22 4.0kgf (Min)
AWG#24 3.0kgf (Min)
AWG#26 2.0kgf (Min)
AWG#28 1.0kgf (Min)
5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.00kgf (Max.)
5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 2.0kgf (Min.)
5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 1.0kgf (Min.)
5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 40mΩ (Max.)
5-7 Vibration

Amplitude: 1.5mm P-P

Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

Discontinuity 1 μsec.(Max.)
5-8 Physical Shock 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)

6. Environmental Performance And Others

Test Description Procedure Requirement
6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
6-2 Heat Resistance 85±2℃, 96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)
6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
6-4 Humidity

Temperature: 40±2℃

Relative Humidity : 90~95%

Duration: 96 hours

(Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

Insulation Resistance 1000MΩ (Min.)

Dielectric Withstanding Voltage Must meet 4-3
6-5 Temperature Cycling

5 cycles of:

a) -55℃ 30 minutes

b) +85℃ 30 minutes

(Based upon JIS C0025)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)
6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B)
6-7 SO2 Gas

24 hours exposure to 50±5ppm.

SO2 gas at 40±2℃.
6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.
6-9 Solderability

Soldering Time: 5±0.5 sec.

Solder Temperature: 245±5℃

 Solder Wetting 95% of immersed area must show no voids, pin holes
6-10 Resistance to Soldering Heat

Solder pot method

Soldering time: 10±0.5 sec.

Solder Temperature: 260±5℃

Solder iron method

Soldering Time: 5±0.5 sec.

Solder Temperature: 370℃ ~ 400℃

 Appearance No Damage.

7. Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits At Initial Circuits At Initial
Insertion (Max.) Withdrawal (Min.) Insertion (Max.) Withdrawal (Min.)
Single 0.50 0.10 2X11 7.10 1.50
2X02 1.70 0.60 2X12 7.70 1.60
2X03 2.30 0.70 2X13 8.30 1.70
2X04 2.90 0.80 2X14 8.90 1.80
2X05 3.50 0.90 2X15 9.50 1.90
2X06 4.10 1.00 2X16 10.10 2.00
2X07 4.70 1.10 2X17 10.70 2.10
2X08 5.30 1.20 2X18 11.30 2.20
2X09 5.90 1.30 2X19 11.90 2.30
2X10 6.50 1.40 2X20 12.50 2.40


3, Multiple payment & shipping modes
We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be prompt and happy. Choose us! Let's connect the realistic and electronic world together.

Crimp Dual Row Wire Housing Halogen Free PHB Wire To Board Connector 2.0mm Pitch
