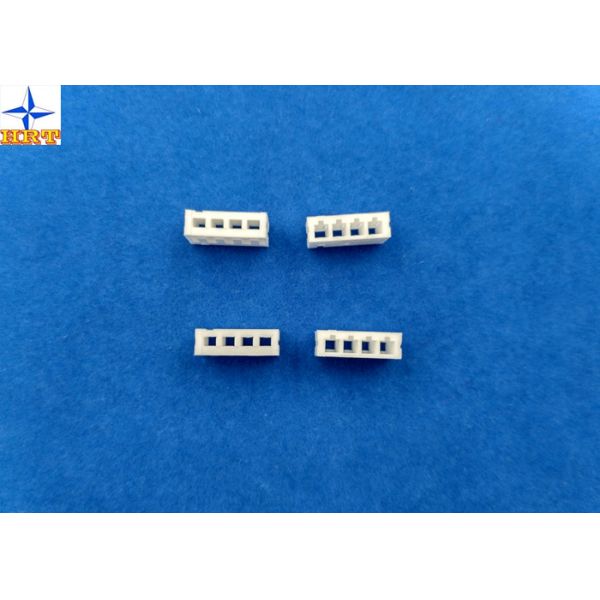

2.5mm Pitch SCN connector Wire to Board Crimp Connectors Crimp style, Board-in connector
2.5mm Pitch SCN connector Wire to Board Crimp Connectors Crimp style, Board-in connector
2.5mm Pitch SCN connector Wire to Board Crimp Connectors Crimp style, Board-in connector
2.5mm Pitch SCN connector Wire to Board Crimp Connectors Crimp style, Board-in connector
2.5mm Pitch SCN connector Wire to Board Crimp Connectors Crimp style, Board-in connector
2.5mm Pitch SCN connector Wire to Board Crimp Connectors Crimp style, Board-in connector
Specifications
Brand Name :
HRT
Model Number :
B2512HV-NP
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
USD0.001 to 0.5 per pcs
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
Bag with outside carton
Category :
PCB board-in connectors
Pitch :
2.5mm
Material :
PA66
Wire range :
AWG22# to 28#
Flammability :
UL94V-0
Row :
Single
Description

Max 16 Position Printed Circuit Board Connectors 2.50mm With 180 Degree Angle

1, Details of product description

Basic size information
Suitable terminals B2512V series
Color light-yellow
Pitch 2.5mm
Contacts type one
PC board mounting direction top entry
Circuits 2 to 16pins
Wire insulation diameter 1.70mm Max.
Electrical properties
Current Rating 3A AC, DC
Voltage Rating 250V AC, DC
Contact Resistance 10mΩ Max
Insulation Resistance 1000mΩ min
Withstanding Voltage 800V AC/minute
Mechanical properties
Temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.

2, Related drawing and report

Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.

2.5mm Pitch SCN connector Wire to Board Crimp Connectors Crimp style, Board-in connector

2.5mm Pitch SCN connector Wire to Board Crimp Connectors Crimp style, Board-in connector

2.5mm Pitch SCN connector Wire to Board Crimp Connectors Crimp style, Board-in connector

Mechanical Performance

Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force to P.C.B

Insert and withdraw at the speed rate of 25±3mm / minute to P.C.Board.

(Per single circuit,Initial)

 Insertion 1.0kgf max.
Withdrawal 0.3kgf min
5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#22 4.0kgf (Min)
AWG#24 3.0kgf (Min)
AWG#26 2.0kgf (Min)
AWG#28 1.0kgf (Min)
5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.00kgf (Max.)
5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 1.50kgf (Min.)
5-5 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 10mΩ (Max.)
5-6 Vibration

Amplitude: 1.5mm P-P

Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.

Contact Resistance 10mΩ (Max.)

Discontinuity 1 μsec.(Max.)
5-7 Physical Shock 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)


3, Application fied of these product

This multi-circuit board-in connector meets the needs for high-density mounting on PC boards efficiently and economically. Our parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, LuXshare, BYD etc because of its' low defetive rates. And the all products are complied with REACH, UL, RoHS standard. In order to protect the evironment, some parts are halogen free.
