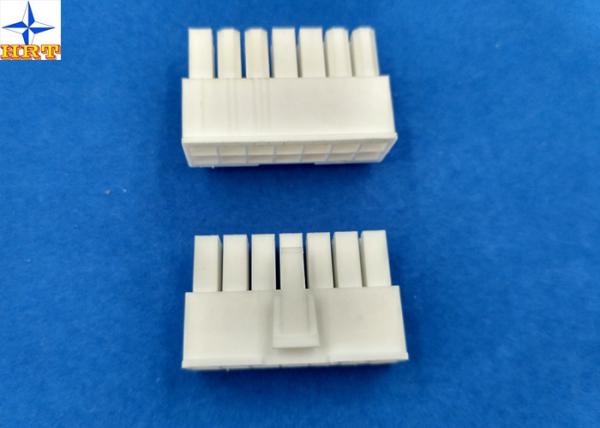

4.25mm Pitch Connector, Wire To wire Connectors for Molex 5556 equivalent
4.25mm Pitch Connector, Wire To wire Connectors for Molex 5556 equivalent
4.25mm Pitch Connector, Wire To wire Connectors for Molex 5556 equivalent
4.25mm Pitch Connector, Wire To wire Connectors for Molex 5556 equivalent
4.25mm Pitch Connector, Wire To wire Connectors for Molex 5556 equivalent
4.25mm Pitch Connector, Wire To wire Connectors for Molex 5556 equivalent
Specifications
Brand Name :
HRT
Model Number :
C4255F-T
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
dongguan, China(mainland)
MOQ :
75K pcs
Price :
Negotiated
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
100 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
5K/reel or 4K/reel with outside carton
Pitch :
4.20mm
wire range :
AWG#22 - #26 or #18 - #22 or #16 - #20 or #14 - #18
Material :
Brass or phospher Bronze
Finish :
Tin-plated
Connector Type :
wire connnector Terminal
Insulation O.D :
3.10mm(Max)
Description

1, The specification of the product including basic size information, electrical and mechanical properties.

Basic size information
Termination Interface Style crimp or compression
Processing methods E-stamping before tin-plated
Insulation O.D. 3.10mm(Max)
Part No. C4255F-TBE or C4255F-TBE or C4255F-TBE-H or C4255F-TPE-H or C4255F-TB-TH or C4255F-TP-TH
Application signal
Electrical properties
Current Rating 9A AC, DC
Voltage Rating 600V AC, DC
Contact Resistance 10mΩ Max
Insulation Resistance 1000MΩ min
Withstanding Voltage 1500V AC/minute
Mechanical properties
Temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.

2, Related drawing and report

The following pictures are engineering drawing and testing report for your reference, wish these can help you to purchase the ideal and right parts from us. Thank you!

4.25mm Pitch Connector, Wire To wire Connectors for Molex 5556 equivalent4.25mm Pitch Connector, Wire To wire Connectors for Molex 5556 equivalent4.25mm Pitch Connector, Wire To wire Connectors for Molex 5556 equivalent

Test Description Procedure Requirement
Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#14 11.0kgf (Min)
AWG#16 10.0kgf (Min)
AWG#18 9.0kgf (Min)
AWG#20 6.0kgf (Min)
AWG#22 4.0kgf (Min)
AWG#24 3.0kgf (Min)
Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50kgf (Max.)
Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 3.00kgf (Min.)
Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 3.00kgf (Min.)
Latch Yield Strength

Mate connectors and pull apart until both latches break at the speed rate of

25±3mm / minute

 7.0kgf (Min.)
Panel Mount Retention Force Insert the housing into panel cut out, push housing opposite the way it was assembled until the locking barbs break at the speed rate of 25±3mm / minute. 16.0kgf (Min.)

3, FAQ


Q:Do you allow multiple design per setup?
A:Yes.We accept OEM/ODM service and allow multiple design per setup.

Q:How long does shipping take?
A:It depends on the destination location and quantity. In most developed country, delivery by Fed x/UPS/DHL is normally 2-3 days(excluding weekends).

Q: How is the goods packaged ?
A: Usually in PE bads, tube, pipe and with outside carton box.
