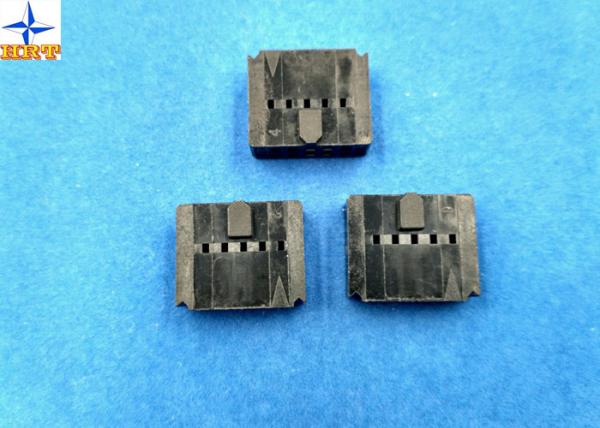

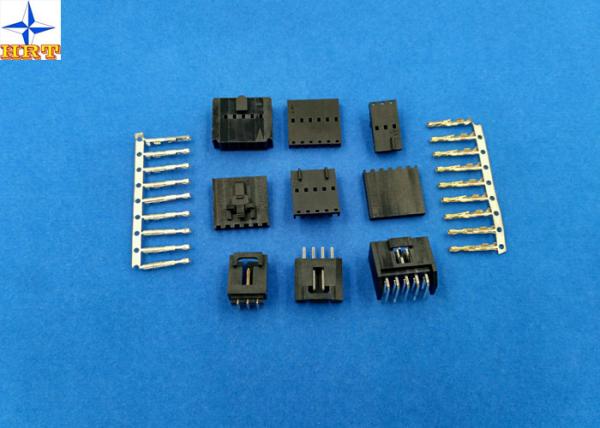

2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors
2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors
2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors
2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors
2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors
2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors
Specifications
Brand Name :
HRT
Certification :
ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin :
Dongguan, China(mainland)
MOQ :
5000 pcs
Price :
USD0.001 to 0.5 per pcs
Payment Terms :
TT, Western Union, PayPal, L/C
Supply Ability :
28 million pcs per month
Delivery Time :
5 to 8 working days after payment checked
Packaging Details :
bag with outside paper carton
Model Number :
A2541H-M-2*NP
Color :
White
Pitch :
2.54mm
Materials :
PA66, UL94V-0
Wire range :
AWG22# to 28#
Packaging Type :
Bag
Application :
Signal, Wire-to-Board
Description

1, Detailed specification table of product

Detailed information

Basic information

TypeMale
CircuitsFrom 2pins to 12 pins
Insulation O.D.1.70mm(Max)
Mating lockWith
RowDouble
Suitable WaferA2541W series wafer
Matched TerminalsA2541-T-M series
Electrical propertiesCurrent Rating3A AC, DC
Voltage Rating250V AC, DC
Contact Resistance20mΩ Max
Insulation Resistance1000MΩ min
Withstanding Voltage1500V AC/minute
Mechanical propertiesTemperature range-25℃ to 85 ℃
Other information please kindly check the following picture.



2, Corresponding engineering drawing & test report
Below file is our engineering drawing and testing report for further information. It's sure that it will be a
good reference for you to know this series parts clearly.
2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors
2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors
2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors

Mechanical Performance

Test DescriptionProcedureRequirement
5-1Actuator Insertion & Withdrawal ForceInsert and withdraw connectors at the speed rate of 25±3mm / minute.Refer to paragraph 7
5-2Crimping Pull Out ForceFix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8)AWG#224.0kgf (Min)
AWG#243.0kgf (Min)
AWG#262.0kgf (Min)
AWG#281.0kgf (Min)
5-3Terminal Insertion Force.Insert the crimped terminal into the housing.1.50kgf (Max.)
5-4Terminal/Housing Retention Force.Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing.2.00kgf (Min.)
5-5Pin Retention ForceApply axial push force at the speed rate of 25±3mm / minute1.50kgf (Min.)
5-6DurabilityWhen mated up to 50 cycles repeatedly by the rate of 10 cycle per minute.Contact Resistance 40mΩ (Max.)
5-7Vibration

Amplitude: 1.5mm P-P
Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.
(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.
Contact Resistance 40mΩ (Max.)
Discontinuity 1 μsec.(Max.)

5-8Physical Shock490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)



3, Why Choose us
1). High Reputation: We are a professional & realiable electronics connector, wafer, termianl manufacturer with 12 years experience, who has owned high reputation in this field.

2). Famous Exhibition: We are active in attending Exhibitions, like China Sourcing Fair in HongKong. We've built up business with lots of clients from all over the world.

3). Visit us: Welcome to visit our factory facility, we will show you a competitive company with high quality & reasonable price.
